• Model NO.：JS1000
• Machine Cavity：2
• Machine Output：1800-2000PCS,H
• Bottle Plastic：Pet
• Transport Package：Wooden Box
• Specification：SGS, CE
• Trademark：JS
• Origin：Huangyan Taizhou Zhejiang
• HS Code：84773090
• Production Capacity：1000-1200PCS,H

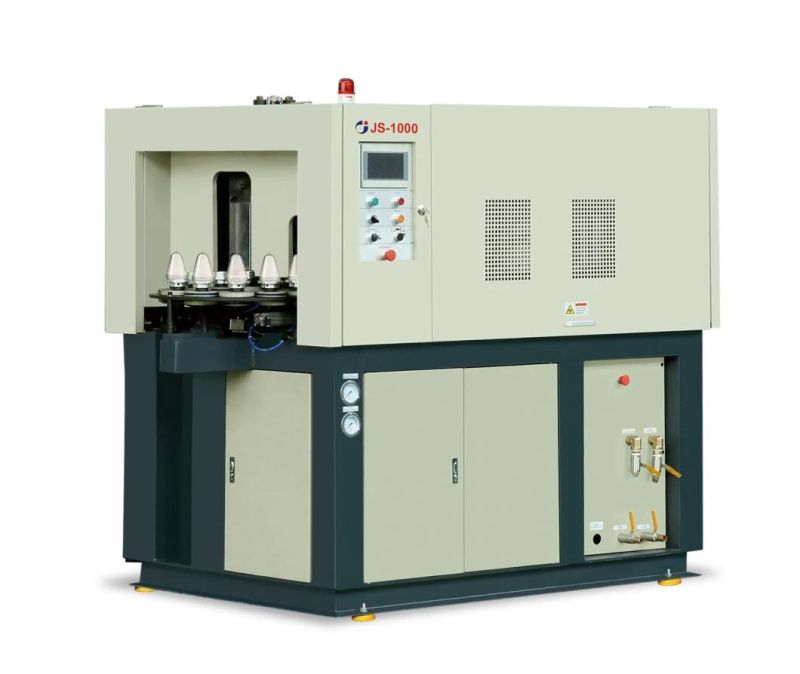

1.High quality compact machine Most popular pet bottle blowing machineJS-1000 With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)

2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain
5. Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.

  JS-1000Production capacity BPH1000-1200Number of Cavity /1Clamping forcekN120Mould opening stroke mm110Stretch strokemm350Max. Container Volumeliters1.5Max. Neck Sizemm50Max. Bottle diameter mm95Max. Bopttle height mm350Installed PowerkW17Max. Heating PowerkW16Operating Air PressureKg/cm²8Operating Air Consumption  liters/min700Blowing Air PressureKG/cm²30Blowing Air Consumptionliters/min1000Cooling water PressureKg/cm²4-5Cooling water Temperature°C10-20Cooling water Flowliters/min100Measurement (L x W x H)m Weight Ton1.8

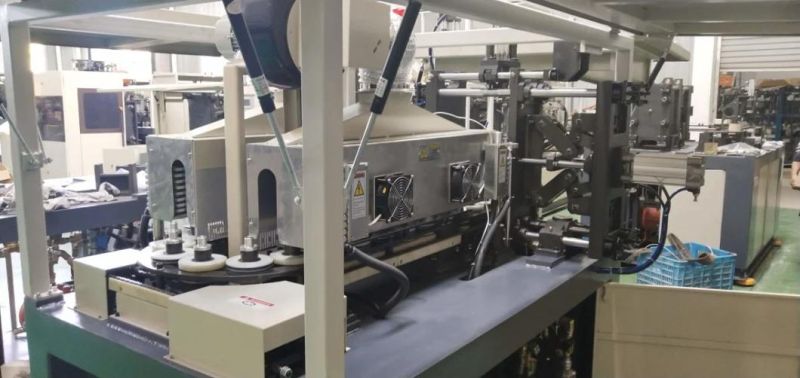

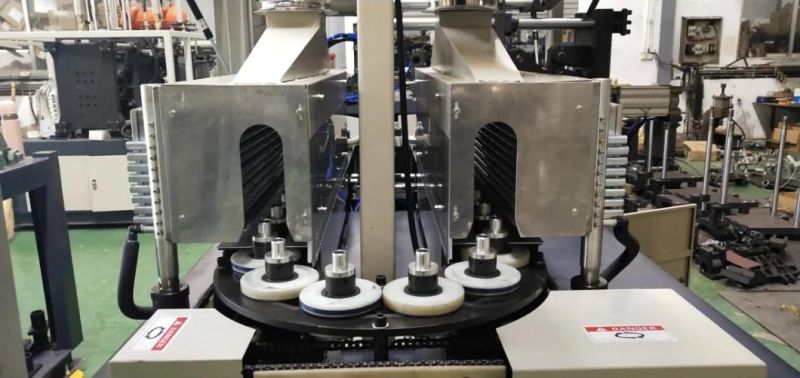

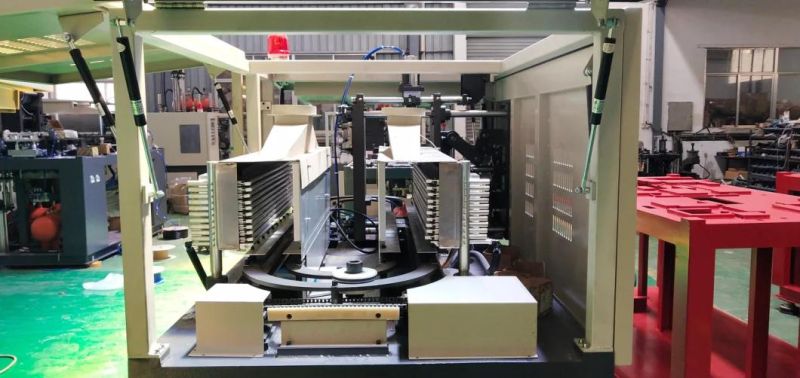

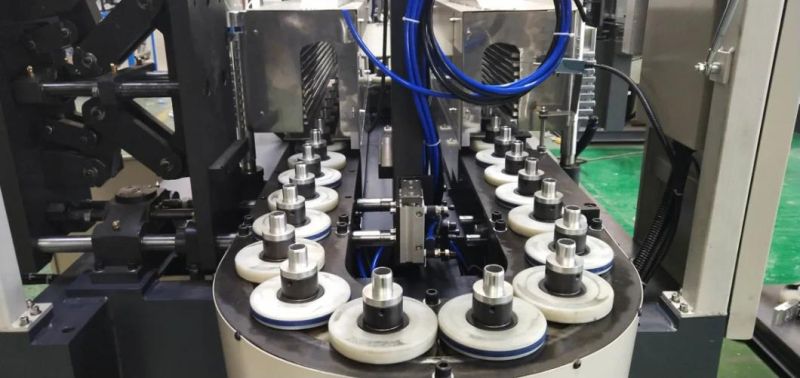

Internal details of the Machine
