• Model NO.：HSD 960-1680mm
• Customized：Customized
• Condition：New
• After-sales Service：Overseas Installation, Free Technical Supporting
• Application：for Producing Pre-Insulated Pipe Jacket
• Pipe Diameter：From 960-1680mm
• Raw Material：PE
• Calibration Method：Vacuum and Water Spraying Cooling
• Cutting Method：Planetary Cutting
• Transport Package：Standard Package
• Specification：PE-960-1680mm
• Trademark：HSD
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：1000unit,Year

Basic Info.

Model NO. HSD 960-1680mm Customized Customized Condition New After-sales Service Overseas Installation, Free Technical Supporting Application for Producing Pre-Insulated Pipe Jacket Pipe Diameter From 960-1680mm Raw Material PE Calibration Method Vacuum and Water Spraying Cooling Cutting Method Planetary Cutting Transport Package Standard Package Specification PE-960-1680mm Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 1000unit/Year

Product Description

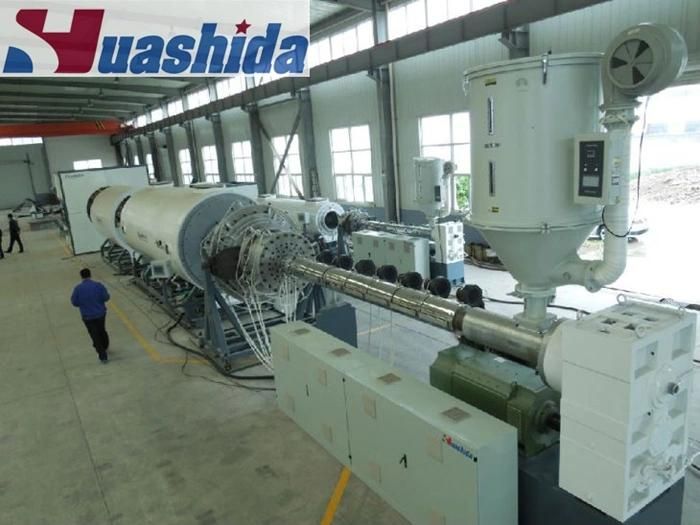

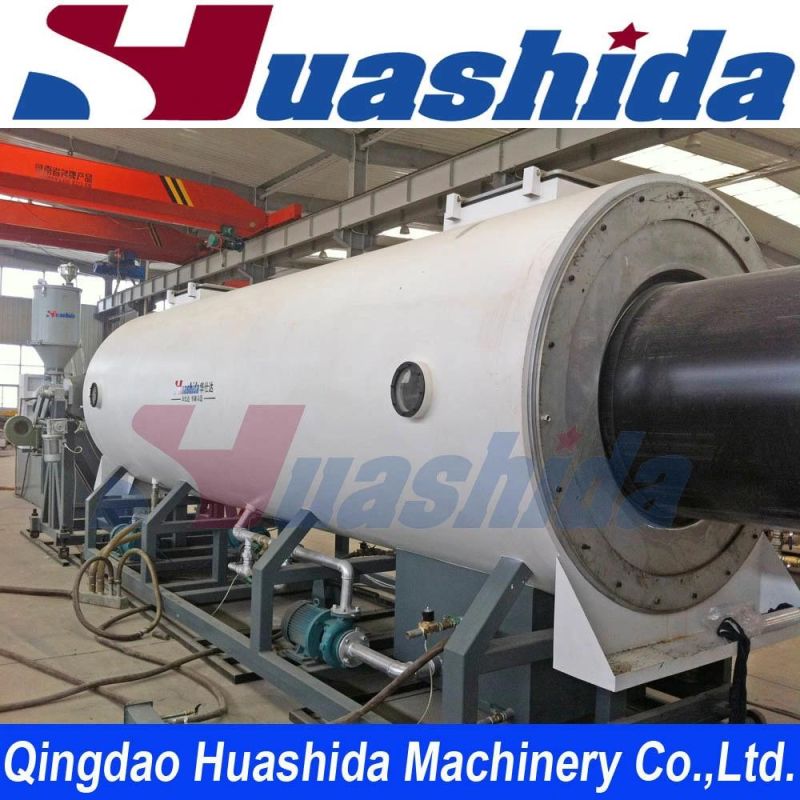

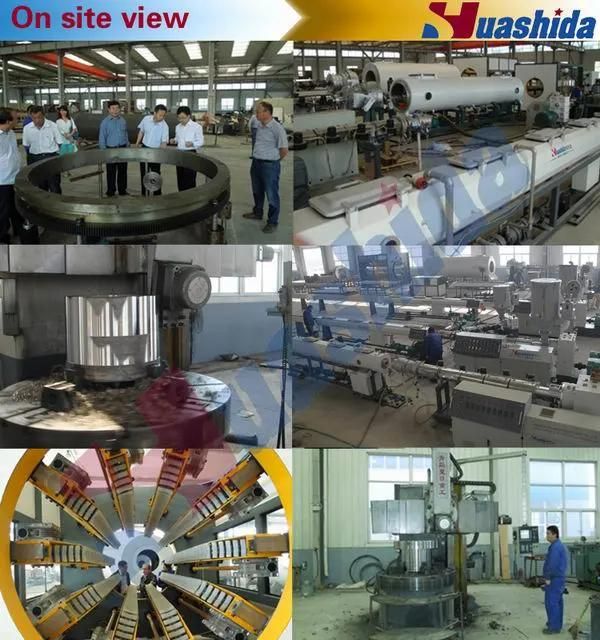

PE Plastic Jacket Pipe Pre-Insulated Pipe Casing Extrusion Line


---Pipe diameter range: 365-760mm 500-960mm 855-1380mm 960-1680mm
---The extrusion line comprise equipments and devices as below,
    1set   Vacuum loader
    1set   Hopper dryer
    1set   High-effeciency single screw extruder

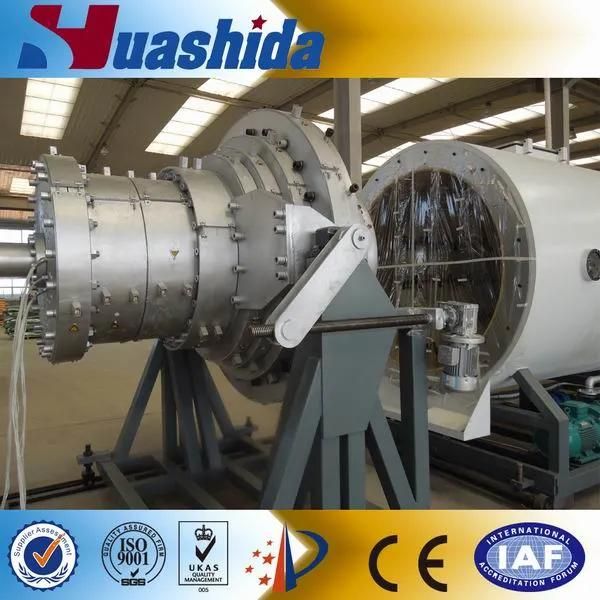

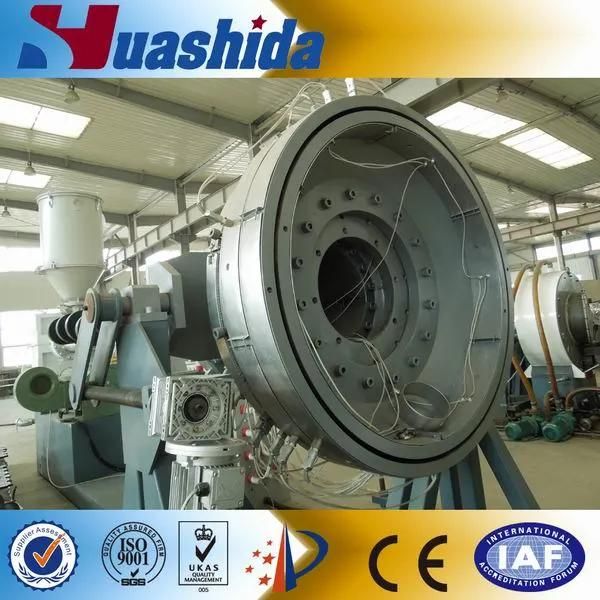

    1set   Vacuum calibration table
    1set   Water spraying tank
    1set   Hauling machine
    1set   Cutting machine
    1set   Stacker


Style	PE-365/760	PE-420/960	PE-850/1372	PE-960/1680
Main extruder	SJ-90/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ365-960mm	Φ 420-Φ 960 mm	Φ 850-Φ 1372 mm	Φ 960-Φ 1680mm
Capacity	550-700kg/h	550~700 kg/h	700~900 kg/h	800-1200kg/h
Installed power	360kw	380 kw	440 kw	580kw
Length	35m	36 m	40 m	48m


I. Pipe Usage
---HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.

II. Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
For example
SJ90/33---600-700kg/h
SJ120/33---800-900kg/h
SJ150/33---1000-1200kg/h
---Compared with inflating method (internal pressure method)
1. For 24 hours working, it reduces 2-3 workers for each shift.
2. There is much waste pipe and material, no need for workers to crush waste material.
3.  High-effeciency. Take Dimater 960mm as an example, Output is approximately 60 pcs of 11.6meters pipe, it is much higher output than that of inflating method.
4. Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5.  No need trim edge, once forming.

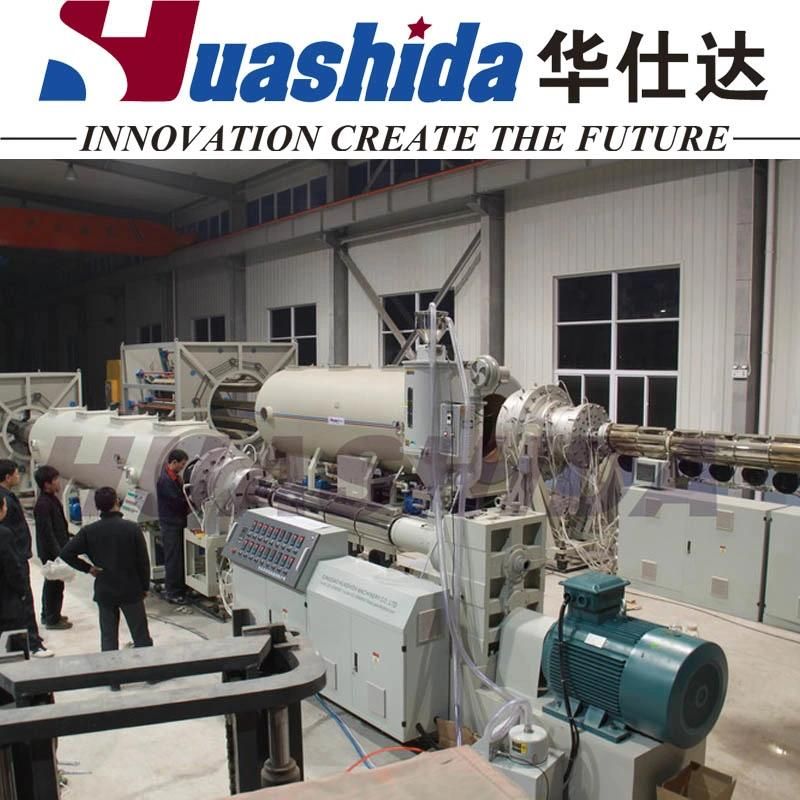

III. Main machine- High-effeciency single screw extruder
---Single screw is with barreir & mixing head; barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.
IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer;s requirement, to be with PLC, or without.


V. Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- SIEMENS AC contactors
