• Profile：PVC Window, Door, Panel,Ceiling, etc.
• Extruder：Conical Twin Screw Extruder
• Screw and Barrel：38crmoaia
• Profile Width：Adjustable
• Heater：Cast Aluminum
• Inverter：ABB
• Motor：Xi′an Xima
• Temperature Controller：Omron
• Contactor：Delixi
• Feeder：Spring Feeder
• Transport Package：Wooden Package
• Specification：YF-500
• Trademark：Chenxing
• Origin：China
• HS Code：8477800000
• Production Capacity：500sets,Year

Basic Info.

Profile PVC Window, Door, Panel,Ceiling, etc. Extruder Conical Twin Screw Extruder Screw and Barrel 38crmoaia Profile Width Adjustable Heater Cast Aluminum Inverter ABB Motor Xi′an Xima Temperature Controller Omron Contactor Delixi Feeder Spring Feeder Transport Package Wooden Package Specification YF-500 Trademark Chenxing Origin China HS Code 8477800000 Production Capacity 500sets/Year

Product Description

Application of Our Profile Extrusion line

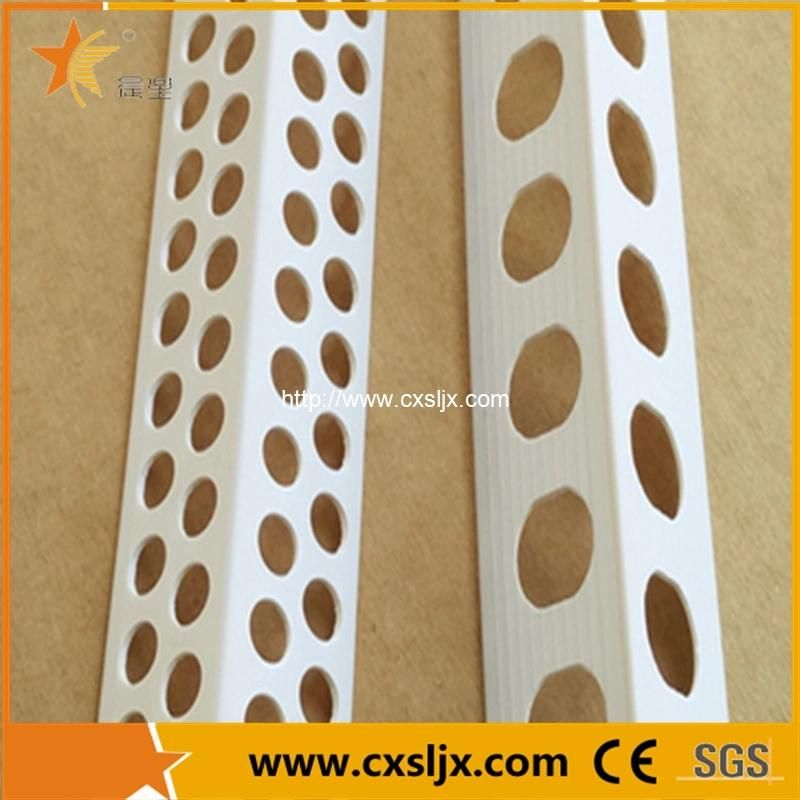

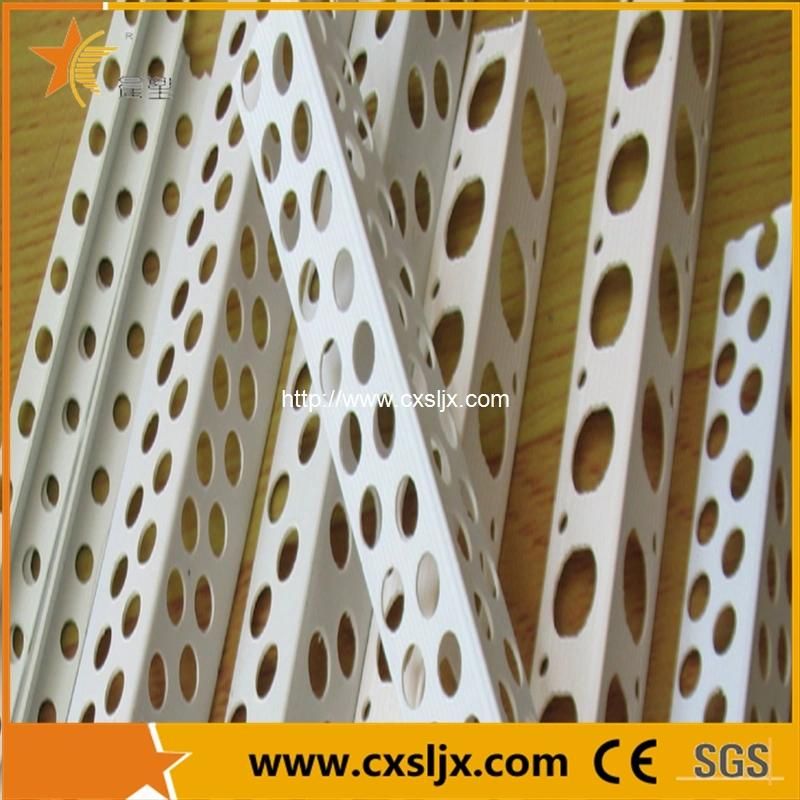

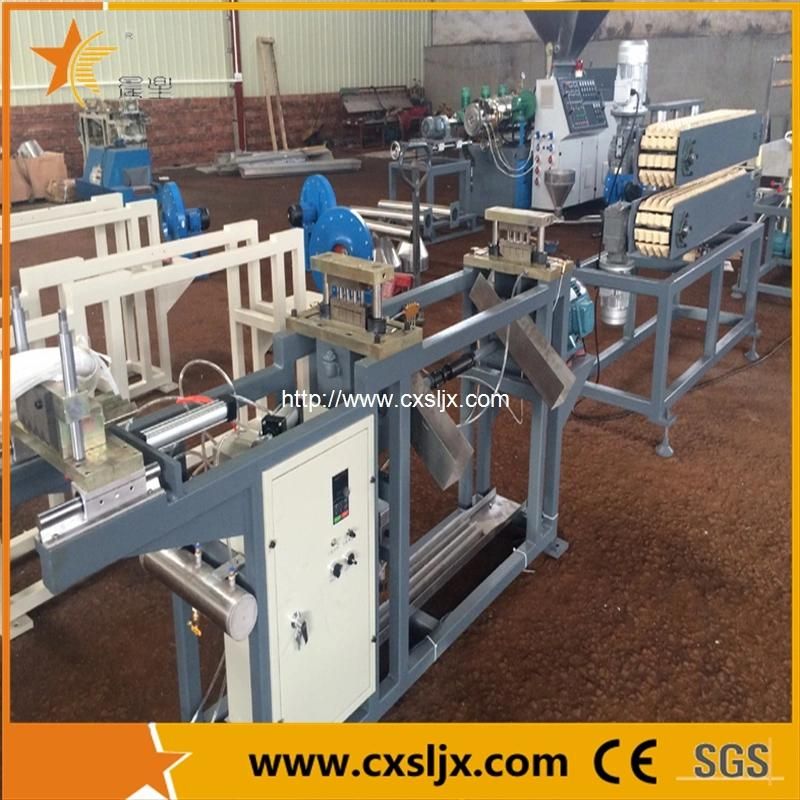

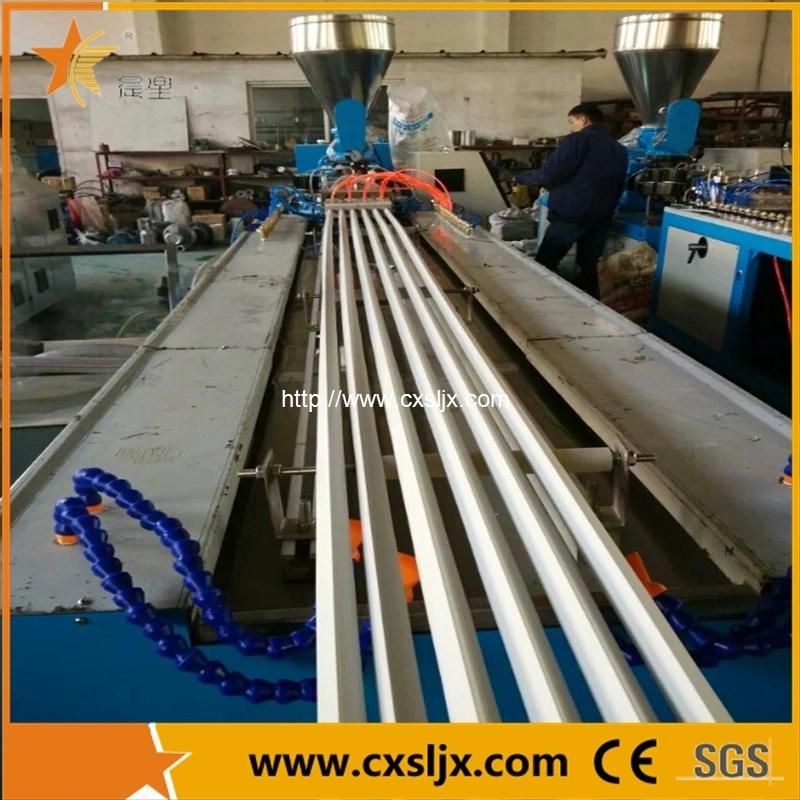

YF Series PVC profile production line is mainly used in PVC or WPC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.

General information:

1. Capacity of main frame can be optionally chosen from 60-700 kgs/hour.

2. With different molds, it can products different kinds of profiles.

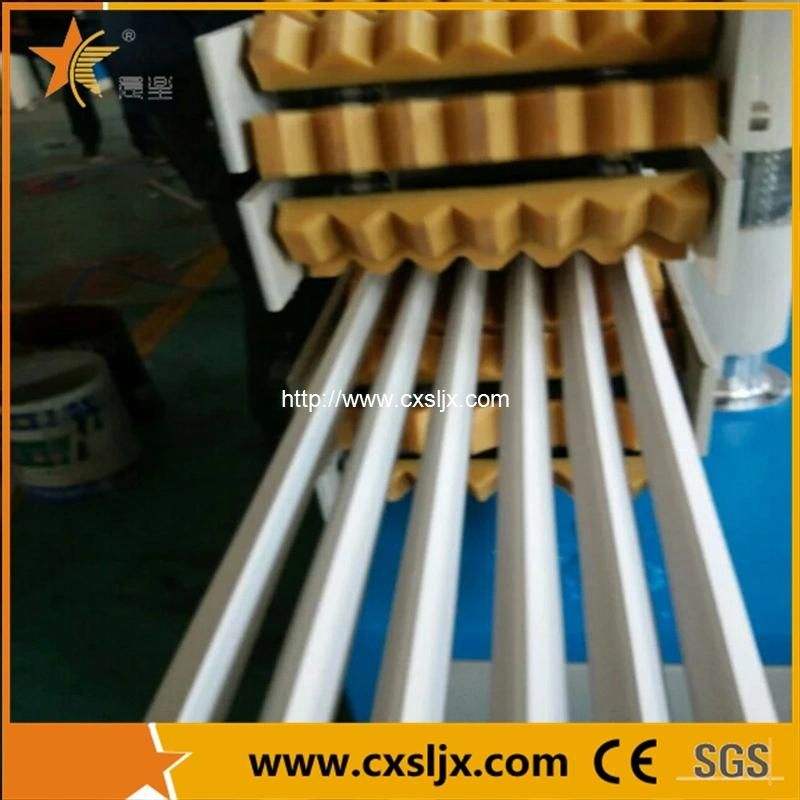

3. The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is large.

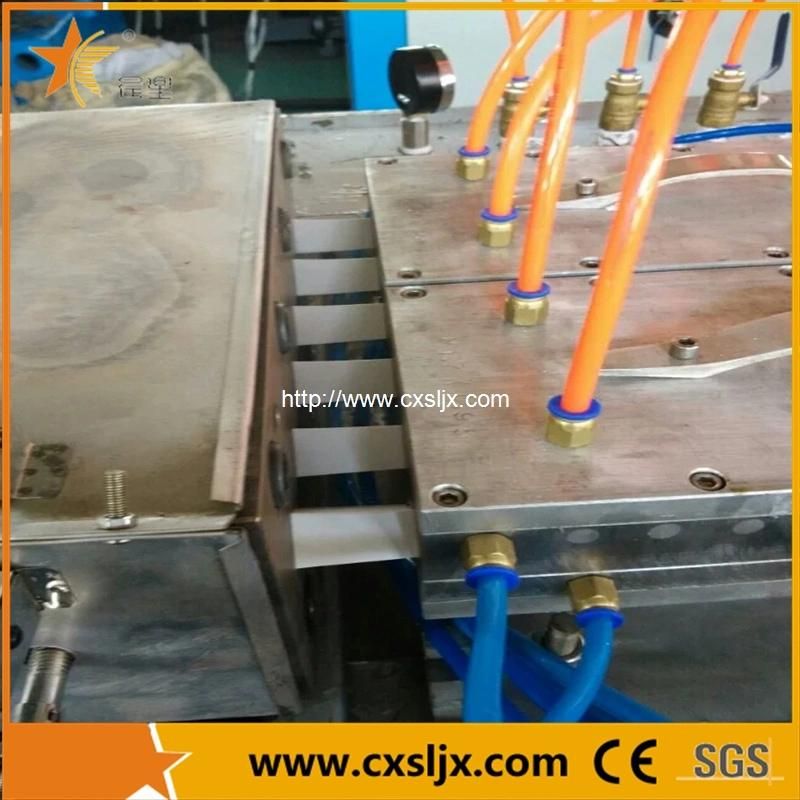

4. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.

5. Movement speed and drawing speed of cutting machine keep synchronous.

6. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length.

7. Powder & dust suction device can be provided.

8. The stacker platform can choose such specifications as 4-meter, 6-meter, etc.

9. With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.

Main technical parameters:

Main technical parameters:

Model	YYJ2-51	YYJ4-51	YYJ4-65	YYJ6-65
Max. quantity extrusion in same time	one to two	one to four	one to four	one to six
Extruder model	SJSZ51/105	SJSZ51/105	SJSZ65/132	SJSZ65/132
Max. Extrusion capacity (kg/h)	120-150	150	250	250
Extruder power	22	22	30/37	30/37
Cooling water(M3/H)	5	5	7	7
