• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Non-Computerized
• Item：16-32mm One Extruder Four Pipe PVC Pipe Machine
• Voltage：380V,50Hz, or Customized
• Feeding Materials：PVC Powder, Calcuim Powder, etc.
• Application：PVC Water Supply or Drainage Pipe
• Screw Feeder：Screw Feeder for PVC Pipe Production Line
• Screw Barrel Material：38crmoaia
• Motor Control Method：AC Motor, or Motor + Inverter
• Motor Brand：Xian Xima or Local Dongya
• Inverter：ABB or Holip
• Contactor：Siemens or Delixi
• Transport Package：Wooden Package
• Specification：CE
• Trademark：Chenxing
• Origin：Zhangjiagang of Jiangsu
• HS Code：8477800000
• Production Capacity：4, 800 Set,Year for PVC Double Pipe Extrusion Line

Basic Info.

Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Non-Computerized Item 16-32mm One Extruder Four Pipe PVC Pipe Machine Voltage 380V,50Hz, or Customized Feeding Materials PVC Powder, Calcuim Powder, etc. Application PVC Water Supply or Drainage Pipe Screw Feeder Screw Feeder for PVC Pipe Production Line Screw Barrel Material 38crmoaia Motor Control Method AC Motor, or Motor + Inverter Motor Brand Xian Xima or Local Dongya Inverter ABB or Holip Contactor Siemens or Delixi Transport Package Wooden Package Specification CE Trademark Chenxing Origin Zhangjiagang of Jiangsu HS Code 8477800000 Production Capacity 4, 800 Set/Year for PVC Double Pipe Extrusion Line

Product Description

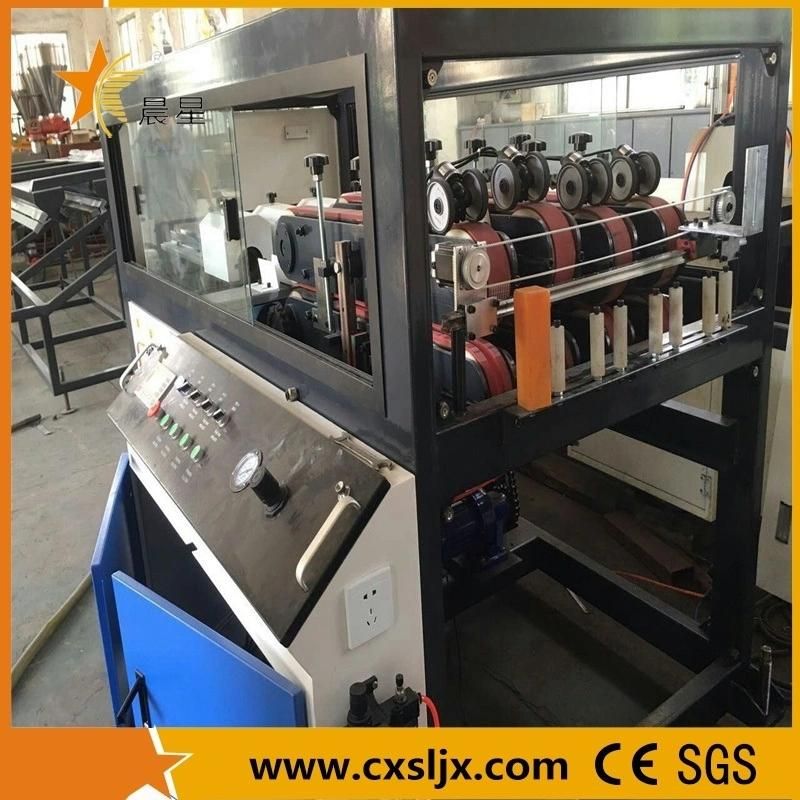

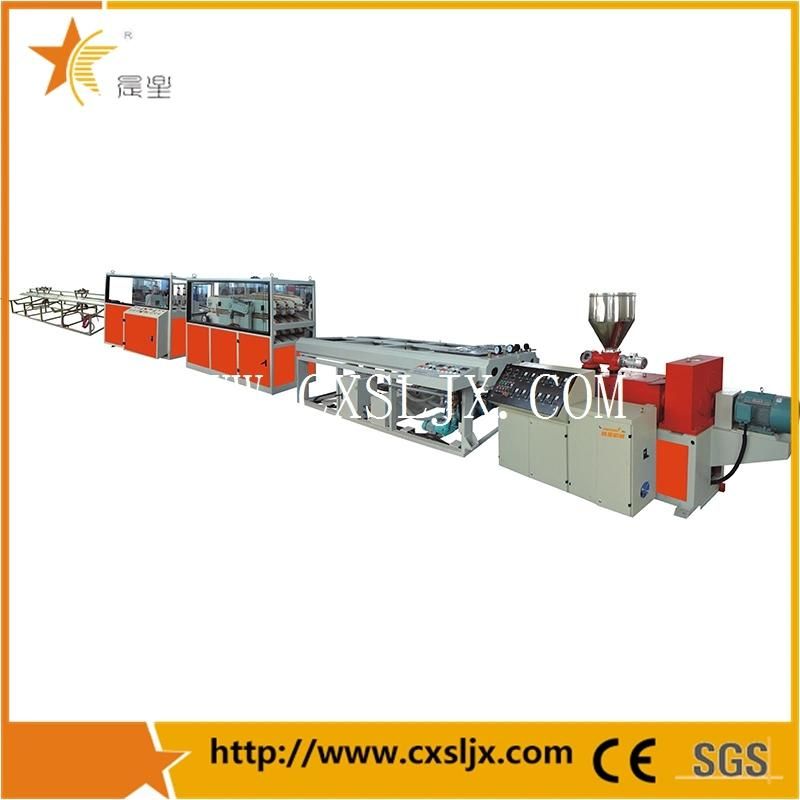

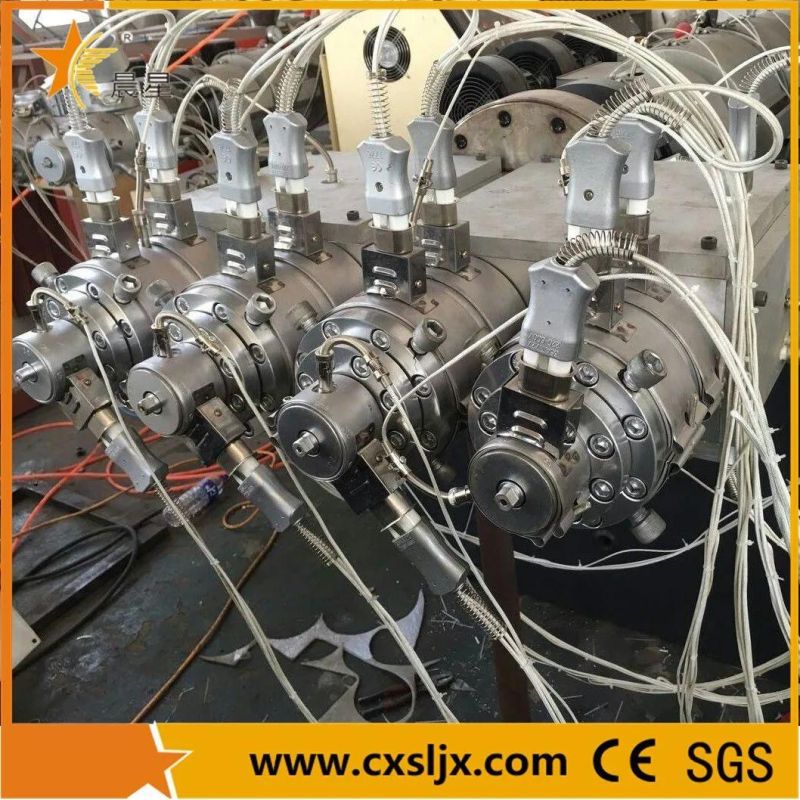

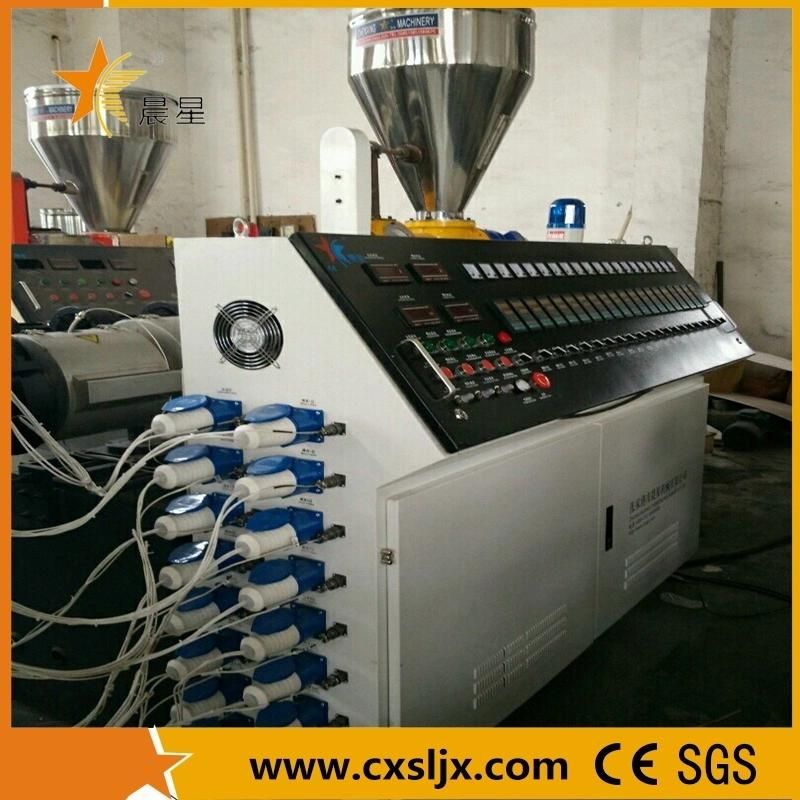

promotion 16-32mm one extruder four pipe PVC pipe production line is developed with the 1990s advanced technology of West Europe by our company. The main machine is SJSZ 51/105 or SJSZ 65/132 conical twin-screw extruder, is equiped with double tube single-control stainless steel spraying shaper to form a production line. It avoids a waste condition when one tubes is adjusts and the other one is effected. The auto single-control souble haul offs and cutting are combined with the front shaping technology to make operation more flexible.

Let you enjoy economic benefit which is brought about by separately control four-tube extruding. The diameter od extruded pipe is from Φ 16-32mm. It can make fully use of the extruding capacity of the extruder. Even if it produces small diameter pipe, it can get great output, too.

Max.output of extruder (kg/h)	150-250kgs

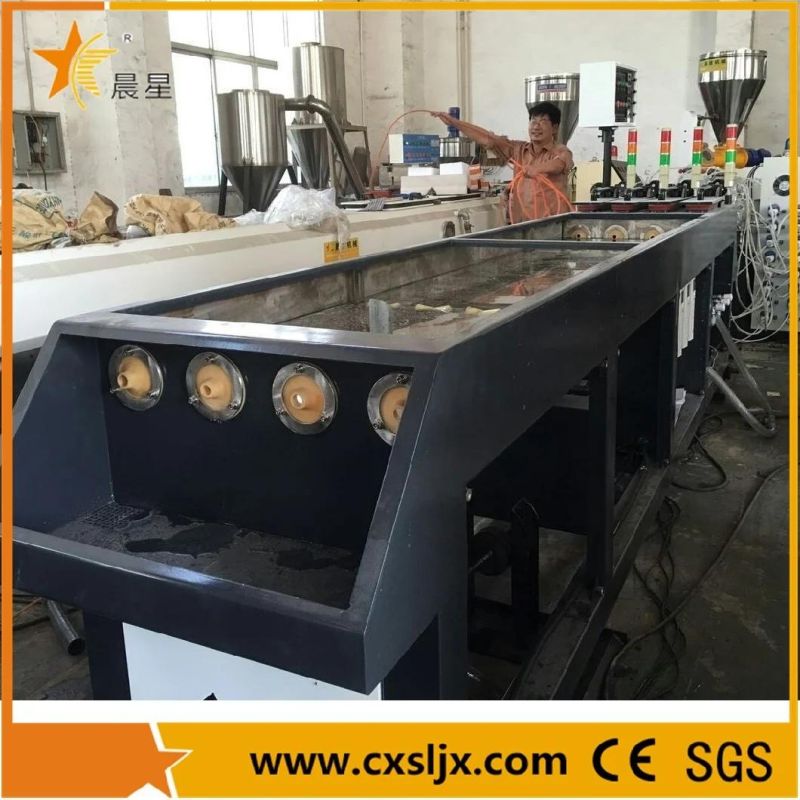

Vacuum tank length (m)	6m
Haul-off speed (m/min)	0-15
Max.diameter of four pipe (mm)	Φ16-32mm
Haul-off force (N)	2000
Drive motor power (kw)	4pcs×1.1kw
