400ton Sanitary Fitting / Bathroom Fitting / Sanitaryware Injection Molding Machine Stable ...
Ningbo Zhen Yue Machinery Co.,Ltd.- Type：Preform Injection
- Structure：Horizontal
- Plastic Type：Thermoplastic
- Plasticizing Way：Screw Type
- Clamping Way：Hydraulic
- Automation：Automatic
Base Info
- Model NO.：ZX-400
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Motor Type：Servo Motor
- Space Between Tie Bars：735 X 735mm
- Product：Sanitary Fitting, Bathroom Fitting, Sanitaryware
- Transport Package：Plastic Film Cover, Wood Pad, Wrapped Film
- Specification：7.2 x 1.7 x 2.6 M
- Trademark：Customized
- Origin：China
- HS Code：8477101090
- Production Capacity：50PCS,Month
Description

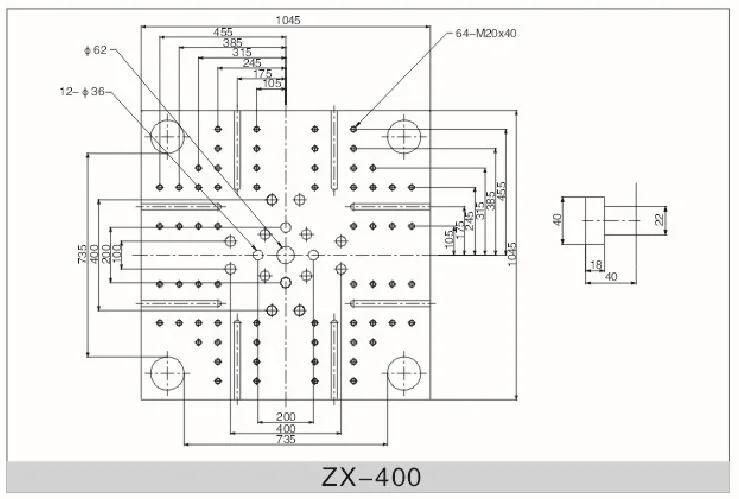

3, Platen Dimension

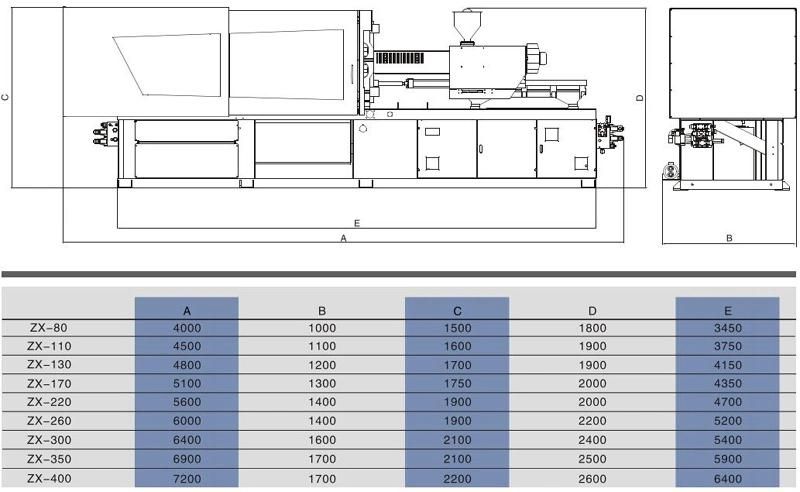

4, Machine Dimension (ZX-400)
5, Technical Characteristics

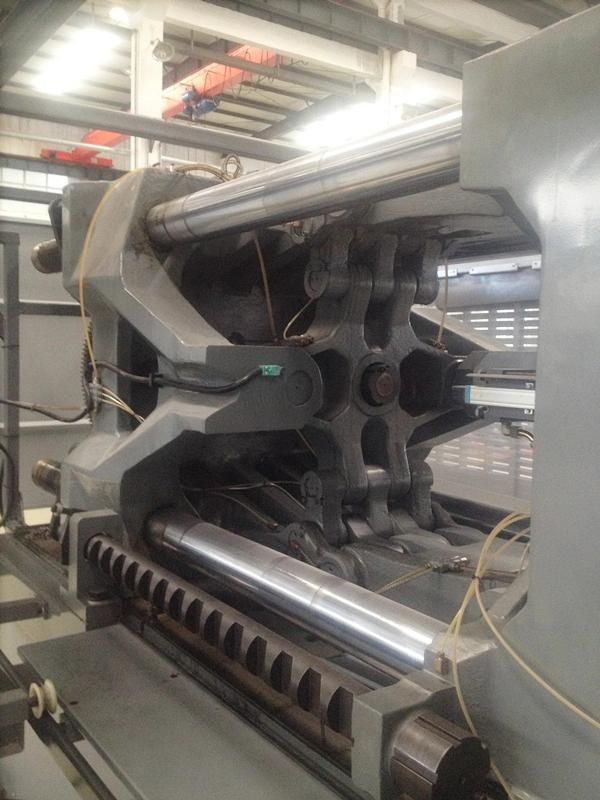

CLAMPING SYSTEM  | -FEA designed double-toggle five-joint clamping machinery -High rigidity platen with enlarged space between tie-bar -Movable platen supported by the adjustable slide system which improves platen parallelism and life time of tie-bar and mould -Optimized lubrication system ensuring precision clamping and extending the life time of the clamping |

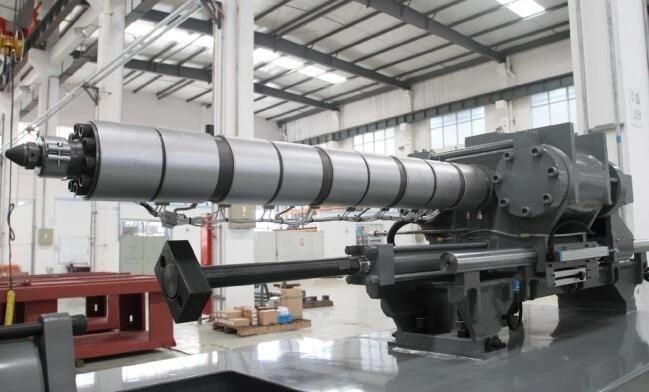

INJECTION SYSTEM  | -Double guide bracket structure, multipoint fixed ensure injection smoothly and accurately -High speed and high pressure adopt special injection design, improving injection speed -Injection cylinder, premold oil motor and plastic screw are in the same centreline, to enhance the injection pressure and injection speed, to achieve high precision, fast injection molding |

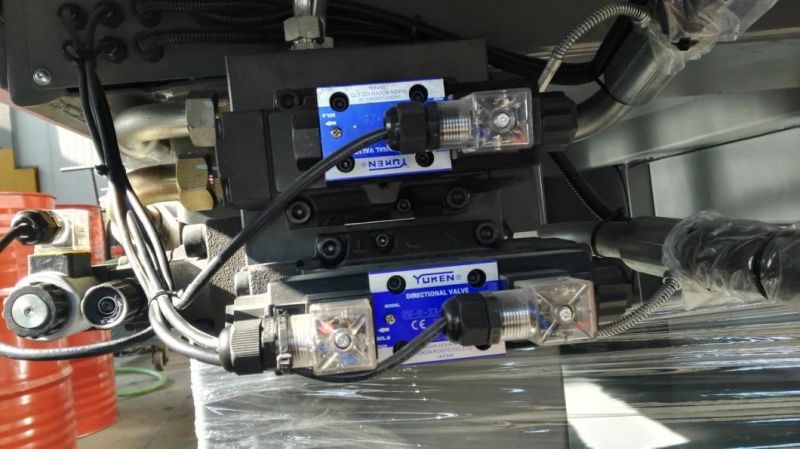

HYDRAULIC SYSTEM | -Adopt the imported pump, low noise, long lifetime, stable performance -High performance hydraulic valve, less failure, fast switch, convenient maintenance -Low pressure mould protect system, which is more suitable for the precision mould -Lubrication oil in dependent lubrication system can lubricate everywhere in the best situation |

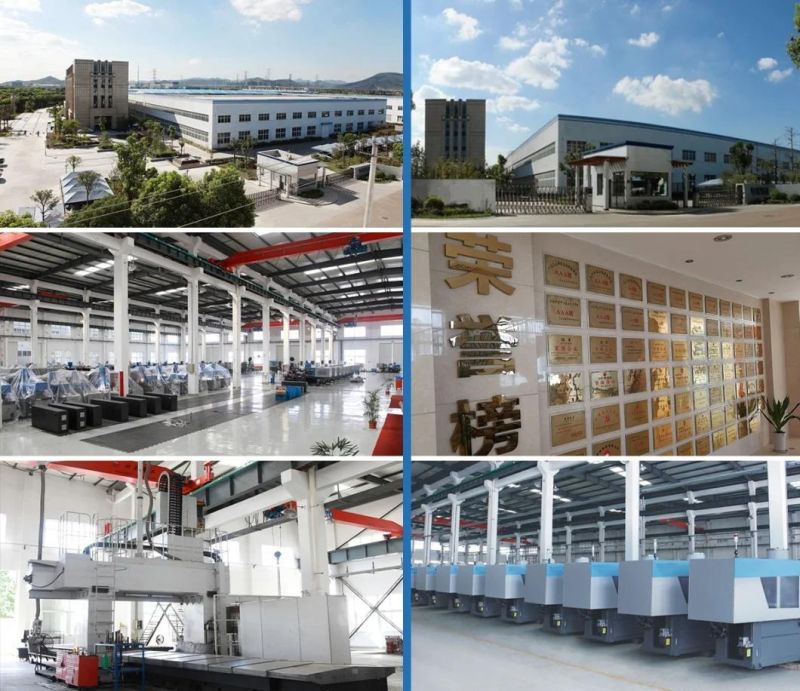

6, Machine Factory
7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Website: zhenyuemachinery.en.made-in-china.com
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
4, all photos above are only for visual reference.
