1000 1200mm PVC UPVC WPC Door Panel and Door Frame Making Machine Turnkey Project
Qingdao Tongsan Plastic Machinery Co., Ltd.- After-sales Service:Engineer Oversea Service
- Warranty:12 Month
- Type:WPC Door Extrusion Line
- Plastic Processed:WPC
- Product Type:Profile Extrusion Molding Machine
- Feeding Mode:One Feed
Base Info
- Model NO.:SJSZ-92,188
- Assembly Structure:Integral Type Extruder
- Screw:Twin-Screw
- Engagement System:Full Intermeshing
- Screw Channel Structure:Deep Screw
- Exhaust:Exhaust
- Automation:Automatic
- Computerized:Computerized
- Panel Width:800-1200mm
- Panel Thickness:20-40mm
- Motor Brand:Siemens
- Inverter:ABB
- Temperature Controller:Omron
- Transport Package:Sea Worth Package
- Specification:SJMS65,132 &SJMS92,188
- Trademark:TONGSAN
- Origin:China
- HS Code:84772090
- Production Capacity:100 Sets One Year
Description

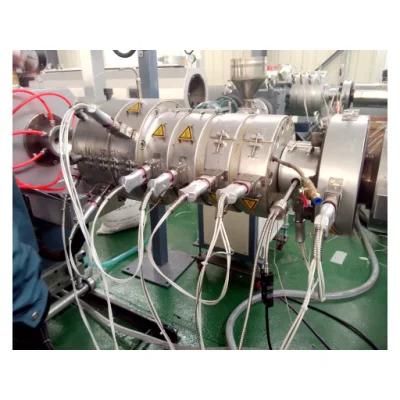

(1)Twin conical screw extruder
Acccording to different width of door panel, equipped with different mode of twin conical scew extruder.
such as SJSZ-80/156 and SJSZ-92/188
Motor brand is Simens
Frequency inveter is ABB
Omron temperature controller
With auto material feeding and dryer hopper (2)Mould
Including the die mould and calibrator
One mould only can produce one size door panel. If you want produce different size of door panel, please send me message to discuss details, we will offer professional plan. (3) Calibrating table

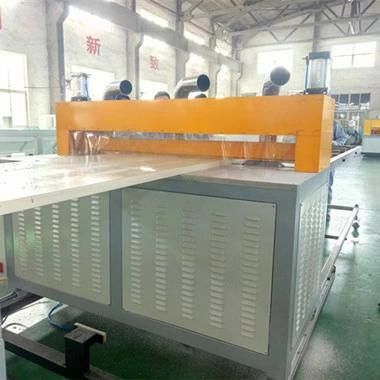

According to the width of door panel, the calibrating table can be designed for 6m length, 8m length etc.
The material which connect with water is made of 304 stainless steel. Hual off machine Cutting machine Advantage of WPC door1, water proof: the WPC door is made by PVC and wood composition, it has the advantage of plastic which is water proof2, fire proof: because of the content of PVC material, the WPC door is fire-proof .3, insect proof: the WPC door will not be damaged by insect.4, no deformation: the WPC door uses hollow structure, so it avoid the deformation problem5, Heat insulation: the WPC door with good heat insulation because of the hollow structure6, noisy insulation: the WPC door with good nosy insulation because the inner is hollow shape.7, no harm to people health: the WPC door is made by PVC and wood powder by extrusion processing, because of PVC melted in high temperature, so it jointed with wood powder without using glue.8, 100% recyclable: the WPC door can be 100% recyclable to be used for making new WPC products.

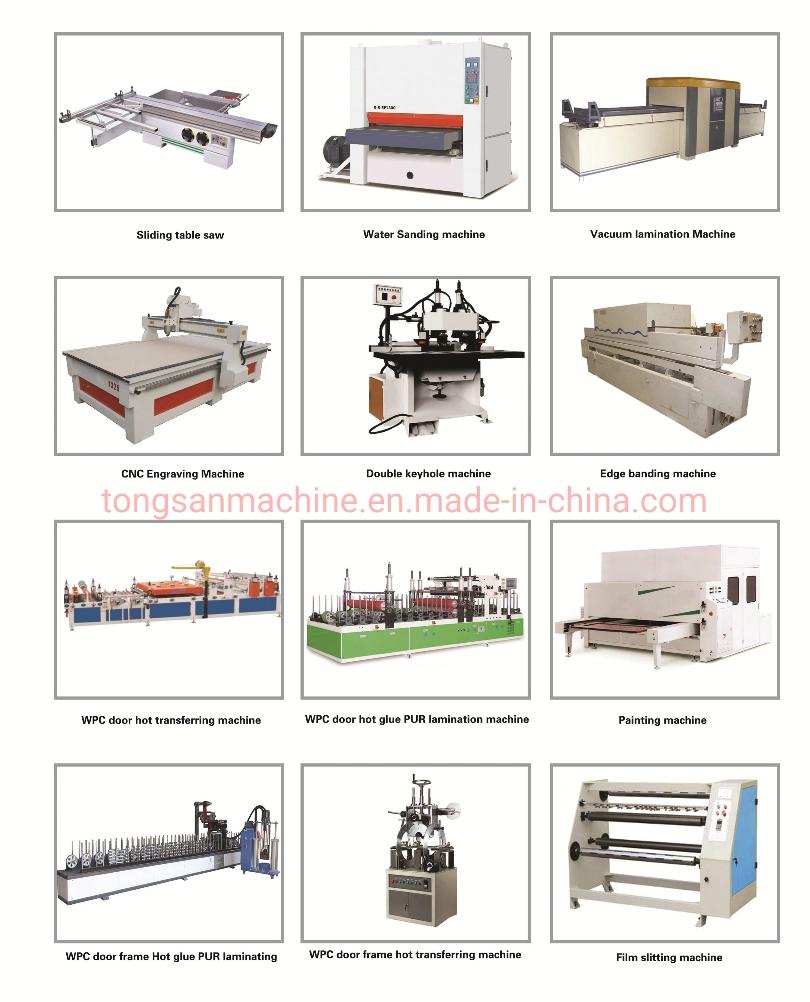

Other machines for making finished PVC WPC door panel

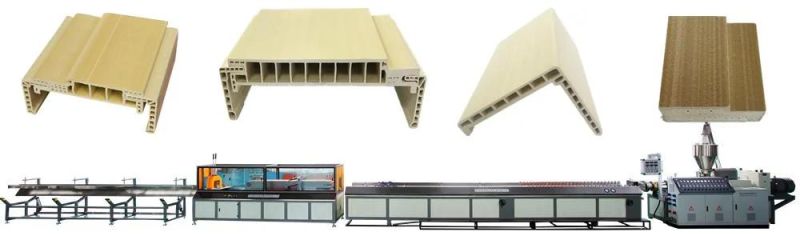

PVC WPC window and door frame profile extrusion line
The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.
Model
PVC WPC door panel extrusion line is for producing preparatory PVC WPC door panel. We can provide the turnkey project for integrated door panel and door frame. The whole production line includs the PVC WPC door frame extrusion line. WPC door panel extrusion line and subsequent processing equipment. The PVC WPC door has the advantage of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof and environmentally friendly. The PVC WPC doors can be widely used in interior doors, hospital ward doors, school classroom door, various styles can be customized.
Technical data:
Acccording to different width of door panel, equipped with different mode of twin conical scew extruder.
such as SJSZ-80/156 and SJSZ-92/188
Motor brand is Simens
Frequency inveter is ABB
Omron temperature controller
With auto material feeding and dryer hopper (2)Mould
Including the die mould and calibrator
One mould only can produce one size door panel. If you want produce different size of door panel, please send me message to discuss details, we will offer professional plan. (3) Calibrating table
According to the width of door panel, the calibrating table can be designed for 6m length, 8m length etc.
The material which connect with water is made of 304 stainless steel. Hual off machine Cutting machine Advantage of WPC door1, water proof: the WPC door is made by PVC and wood composition, it has the advantage of plastic which is water proof2, fire proof: because of the content of PVC material, the WPC door is fire-proof .3, insect proof: the WPC door will not be damaged by insect.4, no deformation: the WPC door uses hollow structure, so it avoid the deformation problem5, Heat insulation: the WPC door with good heat insulation because of the hollow structure6, noisy insulation: the WPC door with good nosy insulation because the inner is hollow shape.7, no harm to people health: the WPC door is made by PVC and wood powder by extrusion processing, because of PVC melted in high temperature, so it jointed with wood powder without using glue.8, 100% recyclable: the WPC door can be 100% recyclable to be used for making new WPC products.
Other machines for making finished PVC WPC door panel
PVC WPC window and door frame profile extrusion line
The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.
Model
Model | Profile Width | Extruder model | Motor power | Max.extrusion capacity | Calibrating platform length |
HGMSC-200 | 200mm | 51/105 | 22kw | 100-120kg/h | 4000mm |
HGMSC-300 | 300mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
HGMSC-400 | 400mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
HGMSCD-300 | 600mm | 65/132 | 37kw | 150-180kg/h | 8000mm |
HGMSC-600 | 600mm | 65/13 or 80/156 | 37 or 75kw | 150-350kg/h | 6000mm |
Technical data:
Model | Profile Width | Extruder model | Motor power | Max.extrusion capacity | Calibrating platform length |
HGMSC-200 | 200mm | 51/105 | 22kw | 100-120kg/h | 4000mm |
HGMSC-300 | 300mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
HGMSC-400 | 400mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
HGMSCD-300 | 600mm | 65/132 | 37kw | 150-180kg/h | 8000mm |
HGMSC-600 | 600mm | 65/13 or 80/156 | 37 or 75kw | 150-350kg/h | 6000mm |
