Bathroom or Kitchen Ceiling Panels Plastic Wall Panel Plastic Extrusion Machine Line

Jiangsu Acemien Machinery Co., Ltd.
  • Product Type:PVC Board
  • Board Layers:Multilayer
  • Screw No.:Double-screw
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008, UL, QS, GMP

Base Info

  • Model NO.:ACEMIEN-003
  • Customized:Customized
  • Condition:New
  • Transport Package:Plastic Film Package and Loaded Into The Container
  • Specification:28m*5m*5m
  • Trademark:Acemien
  • Origin:Jiangsu Province
  • HS Code:84772090
  • Production Capacity:1000 Sets,Year

Description

Basic Info.

Model NO. ACEMIEN-003 Customized Customized Condition New Transport Package Plastic Film Package and Loaded Into The Container Specification 28m*5m*5m Trademark Acemien Origin Jiangsu Province HS Code 84772090 Production Capacity 1000 Sets/Year

Product Description

bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line
bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line can produce different colors and patterns wall panel, which can be used as the ceramic wall panel. The PVC wall panel, ceiling panel can make your room tidy and warm and attracive with different patterns.

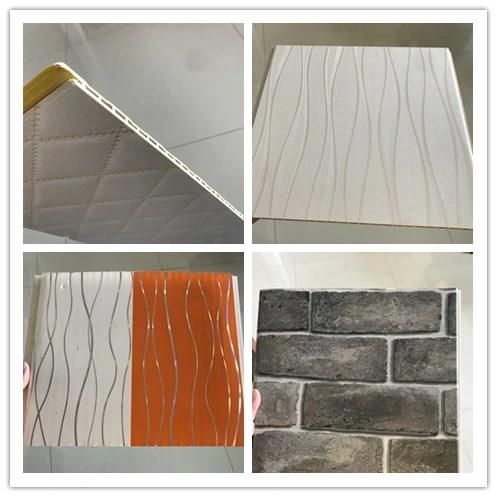

First please seel below wall panel pictures, which you can see widely in daily life.
Bathroom or Kitchen Ceiling Panels Plastic Wall Panel Plastic Extrusion Machine Line
The bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line indoucing below parts: The main extruder, the mould die, the calibriator table , the haul off unit, the cutter system and the receiving table.
then i will introduce you the bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line every parts one by one.
Bathroom or Kitchen Ceiling Panels Plastic Wall Panel Plastic Extrusion Machine Line
This is the bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line SJZ55/110 conical twin-screw extruder. Which is used to push the material forward to the mould die.

Below is the specifications of the bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine lineSJZ55/110 conical twin-screw extruder

Extrusion capacity     120-150kg/h
Screw    Diameter conical 55/110 mm
Material of screw: 38CrMoAl
Surface treatment: Nitride processing, thickness: 0.6 ~ 0,8mm, Polishing
Rotating speed (counter rotating): 1-40 rpm/min
Barrel    Inner processing: Nitride with thickness: 0.6 ~ 0.8mm
Heating zones: 4
Heating mode: Cast alumina + stainless steel covering
Heating power: 18 Kw
Cooling mode: Air fans: 3 Sets
Driving motor    Motor power: 30Kw AC   (SIEMENS)
Dosing feeding system    Motor:1.1Kw    Double screw forced feeding
Vacuum system
    Vacuum pump: 2.2Kw,1 set
Vacuum degree = 0 ~ 0.075 Mpa
Adaptor
    Material: #40steel Chrome plated40, inner convergent flow type
Connection method with die: clamping block + bolt
Pressure melt sensor and thermocouple
Main electric cabinet
    Inverter: ABB; Contactor : Schneider; Air Switch :LS;
Relay: Omron; Temperature controller: Omron
Self-protective system
    Over current protective of motor
Over pressure protective of screw
Outer size and weight     2600×1500×2410mm    2200kg
Bathroom or Kitchen Ceiling Panels Plastic Wall Panel Plastic Extrusion Machine Line

This is the bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line mould.
The specifications is as below:

Material of mould: S2316, 3Cr17
Product width: 203mm
Thickness:8mm
Casted Aluminum heating plate

Bathroom or Kitchen Ceiling Panels Plastic Wall Panel Plastic Extrusion Machine Line

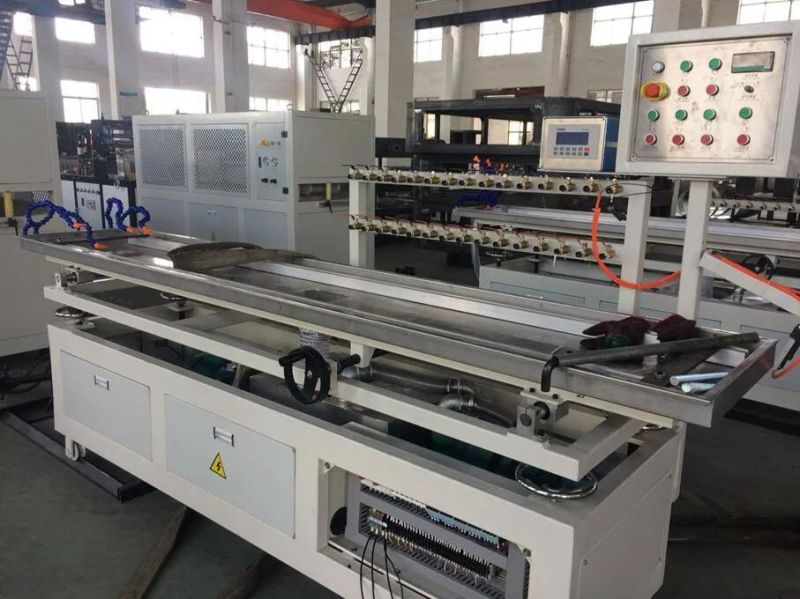

This is the calibrator table of the bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line.

Exterior dimension: Lx W x H: 4000x900x1000mm (adjustable)
Vacuum pump: 4 Kwx1set
Water pump: 3Kwx1set
Three direction adjustment : Forward and Backward with 0.75Kw motor
Range: ±500mm
Up and down, left and right manually adjusted
Range: up and down: ±150mm
Left and Right moving: ±50mm
With Infrared device, guarantee speed synchronously with Haul-off speed

Bathroom or Kitchen Ceiling Panels Plastic Wall Panel Plastic Extrusion Machine Line
This is the haul off system of the bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line, below is some specifications for your reference:
Haul-off speed: 0.5-5m/min;
Motor power: 1.5Kw×2sets
Caterpillar width: 300mm*1 Rows
Caterpillar length: 1800mm;
Pneumatic clamp;
ABB inverter

Bathroom or Kitchen Ceiling Panels Plastic Wall Panel Plastic Extrusion Machine Line

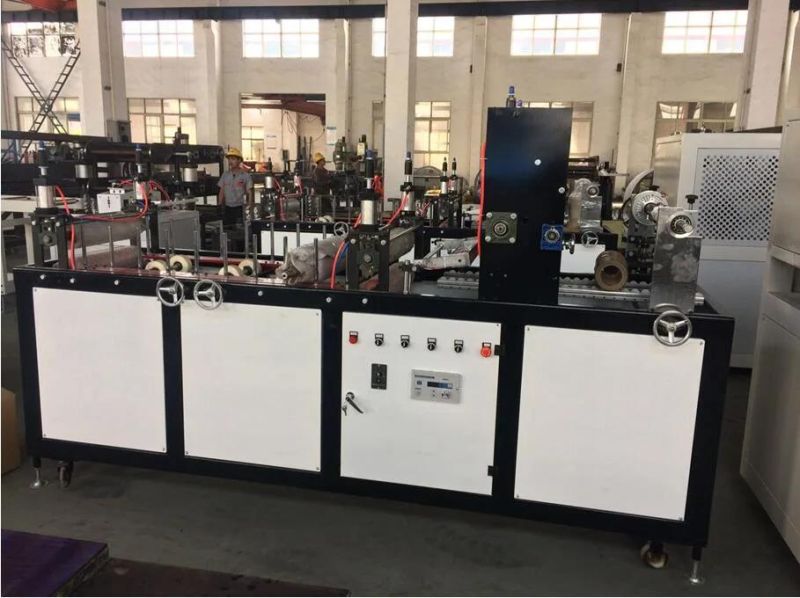

This is thebathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line for your reference.
Below is some specficiations for your reference:
This machine is used to hot stamping PET film or laminate PVC film on various panels
It has two function: hot stamping and laminating
Working thickness and width can be adjusted
Equipped with foil tension force control system
This machine is used online only
Max working width:300mm
Max working thickness 2-50mm

The suspended hot bathroom or kitchen Ceiling Panels plastic wall panel plastic extrusion machine line.
If you want to know more, please feel free contact me, i will send you more details and pictures,
because in this webiste, i can only upload 6 pictures.

I am Laura, working in Jiangsu Acemien Machinery Co,Ltd,  Our factory is professional in design and make the extrusion system for wall panel, roofing sheet, and some plastic profiles and the flooring sheets. Mahcinery from our factory are working in China almost every city, and also aborad, we export many machines every years.

And we can offer you machine working inspecting and reference customer visiting,
so if you need this kind machine or be interested, please feel free contact me, now!
