Two-layers PVC Roof Tile Production Line Corrugated panel tile making machine
The Two-layers PVC Roof Tile Production Line Corrugated panel tile making machine is designed professional to produce the roofing sheet with trapezoidal U panel profile or the corrugated wave profile. This Two-layers PVC Roof Tile Production Line Corrugated panel tile making machine can produce both doule layer sheet or single layers sheets. If you need the double layers sheet, then you can add one SJ 65 extruder. So the Single-layer Corrugated PVC Roof Tile Production Line is just with one SJ80/156 extruder.

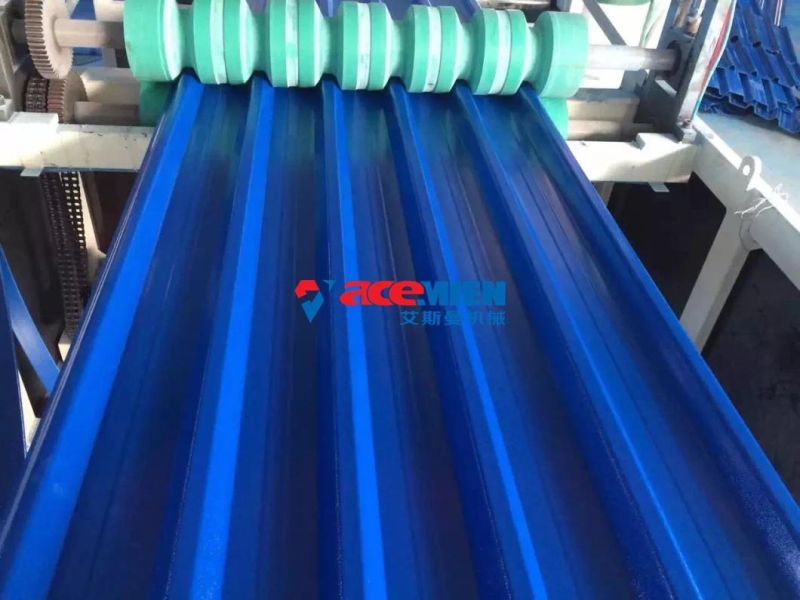

Below are some pictures of the singlle layer trapezoidal or corrugated roofing sheet for your reference:

 For the Two-layers PVC Roof Tile Production Line Corrugated panel tile making machine, its working process as below:

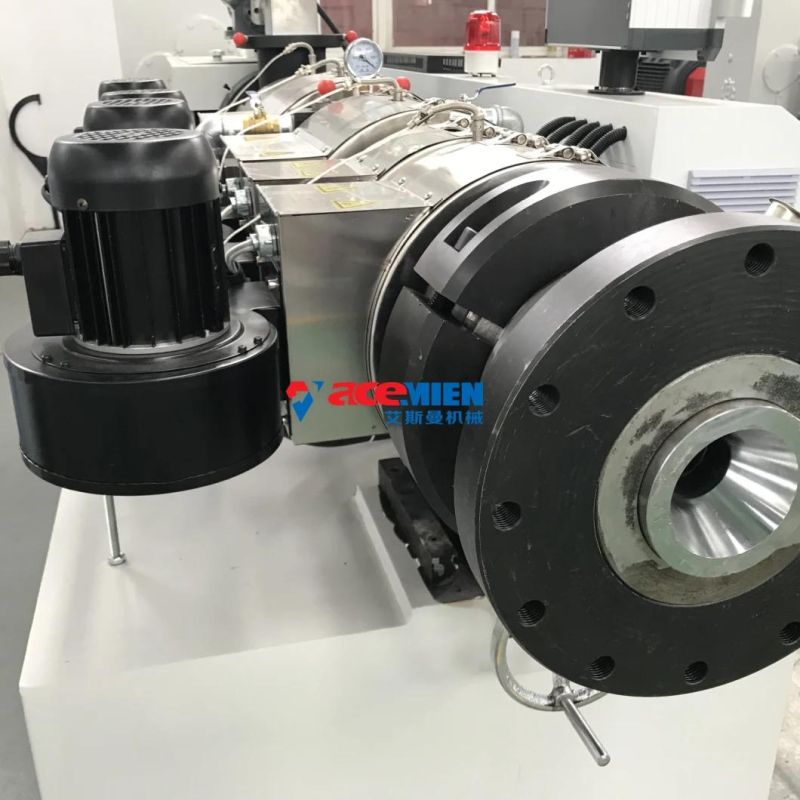

Screw loader for the SJ 80, and main SJ80 extruder, which is 55KW, 3 Phrase, Siemens motor. Double screw extruder. SJZ 80/156 conical twin-screw extruder(PVC).


The Two-layers PVC Roof Tile Production Line Corrugated panel tile making machine Extrusion mould Calibration mould and trimming device.
The specifications is as below:
Flat extrusion mould:
Mould type: clothes rack
Material of die-head: 5CrNiMo steel
Effective width of mould lip: 1100mm,1300mm
Adjusting arrange of mould thickness: 1-4mm
Heating power of each zone: 5KW×7sets
Heater: stainless steel stick Polishing precision of mould lip flow plane: 0.015-0.02(um), others: 0.02-0.03(um)Electroplate: mould flow plane treatment by hard chrome plating, thickness 0.03-0.04mm, hardness: 60-65RocKWellc, surface treatment by chrome plating at thickness: 0.01-0.02mm
Method of material input: central square opening input
Method of Installation: flat extrusion install


The Two-layers PVC Roof Tile Production Line Corrugated panel tile making machine is as below:
Quality of blade: 2pcs
Material of blade: quality alloy steel
Width can be adjustable
Material:45#steel,treatment by hard chrome plating, polishing and quenching
Hardness of chrome plating: 0.04mm, degree of finish:0.8,
Length:1000mm
Width:1250mm
Rise and drop method of mould: pneumatic
Quantity of cylinder:4sets
Fine adjustment method: manual
Cooling water:5-6 ton/hour

Quality of blade: 2pcs
Material of blade: quality alloy steel
Width can be adjustable
Material:45#steel,treatment by hard chrome plating, polishing and quenching
Hardness of chrome plating: 0.04mm, degree of finish:0.8,
Length:1000mm
Width:1250mm
Rise and drop method of mould: pneumatic
Quantity of cylinder:4sets
Fine adjustment method: manual
Cooling water:5-6 ton/hour

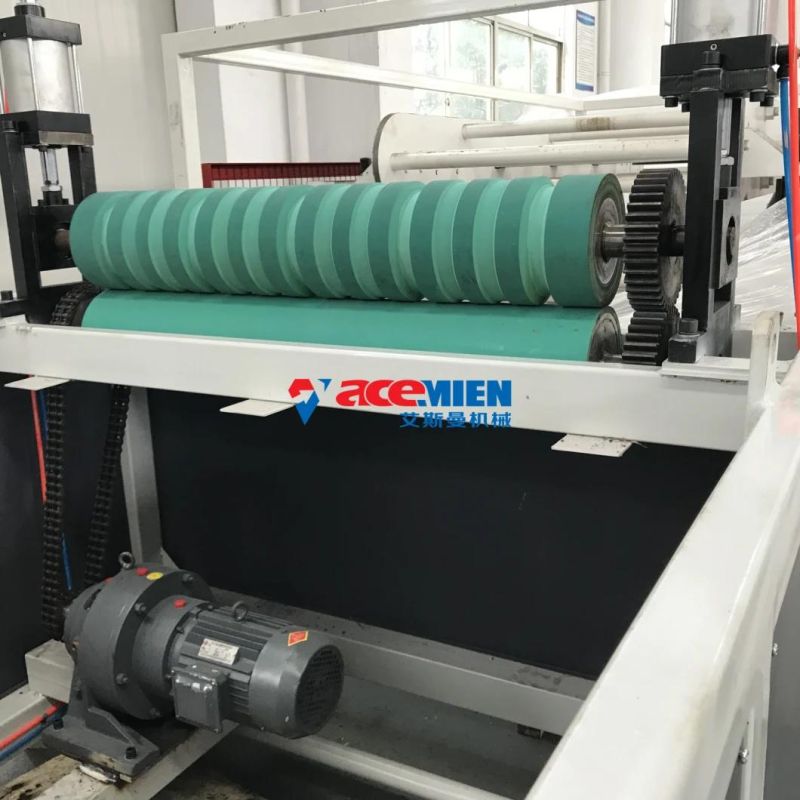

The haul off Unit:
Driving method: Adopt ABB frequency inverter control,
Speed:0.3-3m/min
Haul off roller material: Neoprene CR
Rise and drop method of mould: pneumatic
Fine adjustment method: manual

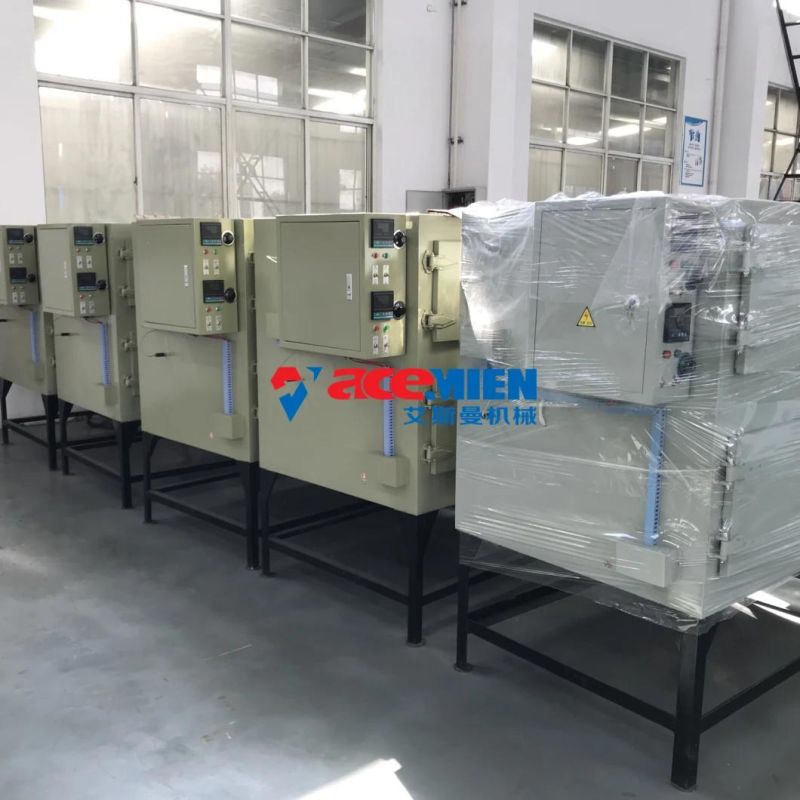

There are auxiliary equipments for the also Two-layers PVC Roof Tile Production Line Corrugated panel tile making machine , The oven for ridge cap forming, the press machine for ridge cap forming and related molds, the Pulverizer to recyce the roofing sheets.



Some customers are wondering the raw material of the roofing sheet which is made from Two-layers PVC Roof Tile Production Line Corrugated panel tile making machine, we can offer the raw material details for your reference: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin.
About the price of the raw material, we can offer you a list, if you need.

And more, we have experienced engineers who are working on machine insatalltion and raw material mixing, so that can help you to produce the perfect roofing sheet once the  Single-layer Corrugated PVC Roof Tile Production Line reach your factory.
