Fe-E-600 HDPE/LDPE Mini Film Blowing Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：50mm

Base Info

  • Model NO.：FB-E-600
  • Automation：Automatic
  • Computerized：Computerized
  • Machine Weight：2600kgs
  • Certification：CE, ISO9001:2008
  • Suitable Material：LDPE,HDPE,LLDPE
  • Output：40kg,H
  • Die Size：80mm and 120mm
  • Transport Package：Wooden Package
  • Specification：4600*2000*2800mm
  • Trademark：HOIN
  • Origin：Ruian, Zhejiang, China
  • HS Code：8477309000
  • Production Capacity：30 Sets,One Month

Description

MODLEFB-E-600FB-E-800Suitable materialLDPE LLDPE   HDPELayfat width of film(mm)600800Thickness of film(mm)0.008-0.10Max.extrusion output40kg/h50kg/hScrew dia(mm)Φ50Φ55Screw L/D28:1Screw rotation10-100r/minMain motor(kw)1115Dia of   orifice(mm)Φ80/Φ120Φ80/Φ160Tota power(kw)2228Weight (T)2.22.6Dimension LxWxH(M)4x2x2.84.6x2.3x3.8

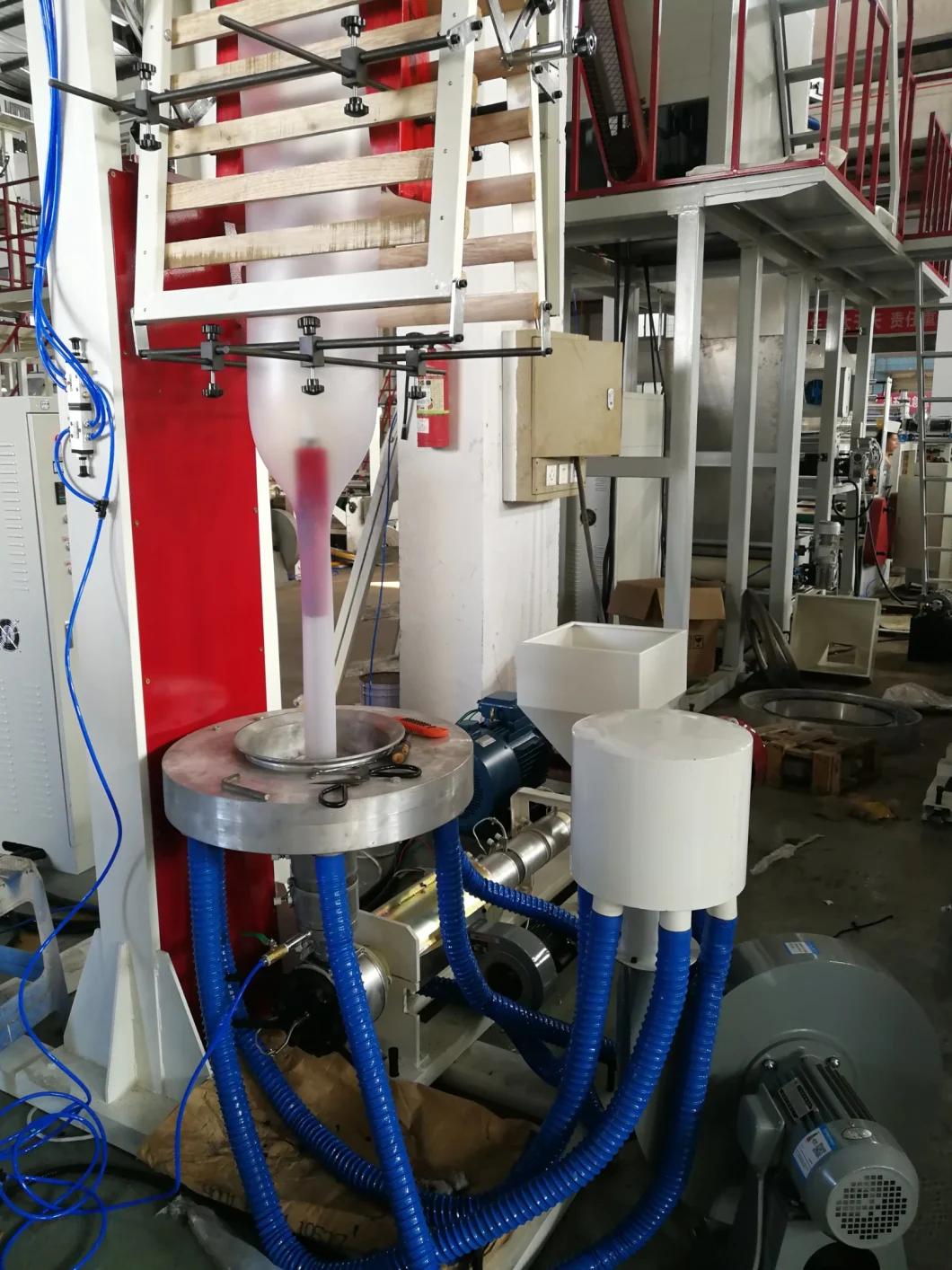

MACHINE PICTURES FOR REFERENCE
Fe-E-600 HDPE/LDPE Mini Film Blowing MachineFe-E-600 HDPE/LDPE Mini Film Blowing MachineFe-E-600 HDPE/LDPE Mini Film Blowing MachineFe-E-600 HDPE/LDPE Mini Film Blowing Machine
