Pneumatic PU Foam Spray Machine

BOBO Machine Co., Ltd.
  • Type：Polyurethane Foam Machine
  • Raw Material：Polyurethane Foam
  • Principle：High-Pressure Air Type
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, UL, QS, GMP

Base Info

  • Model NO.：BDF-II
  • Application：Pneumatic PU Foam Spray Machine
  • Driven System：Full-Hydraulic
  • Pressure：High Pressure
  • Painting：Customized
  • Material：Pol&ISO
  • Cleaning System：Pneumatic Cleaning
  • Pneumatic Cleaning：15m(Standard)
  • Max. Hose Length：90m
  • Mixing Ratio：1:1, Fixed Ratio
  • Drive Method：Pneumatic Motor with Air Compressor
  • Transport Package：Wooden Package
  • Specification：GB
  • Trademark：BOBO
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：30 Sets,Year

Description

Basic Info.

Model NO. BDF-II Application Pneumatic PU Foam Spray Machine Driven System Full-Hydraulic Pressure High Pressure Painting Customized Material Pol&ISO Cleaning System Pneumatic Cleaning Pneumatic Cleaning 15m(Standard) Max. Hose Length 90m Mixing Ratio 1:1, Fixed Ratio Drive Method Pneumatic Motor with Air Compressor Transport Package Wooden Package Specification GB Trademark BOBO Origin China HS Code 8477800000 Production Capacity 30 Sets/Year

Product Description

Pneumatic PU Foam Spray MachinePneumatic PU Foam Spray MachinePneumatic PU Foam Spray MachinePneumatic pu foam spray machine

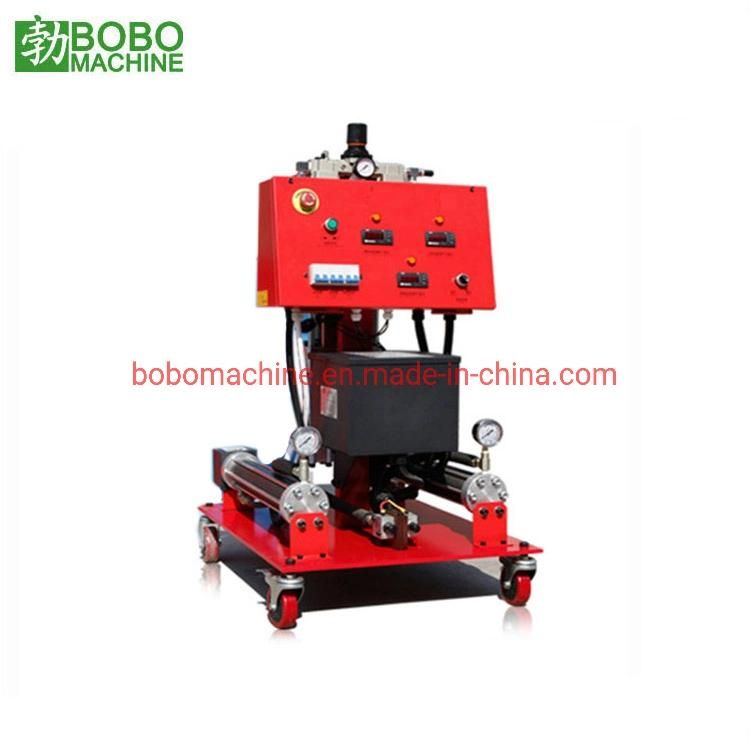

Pneumatic PU Foam Spray Machine

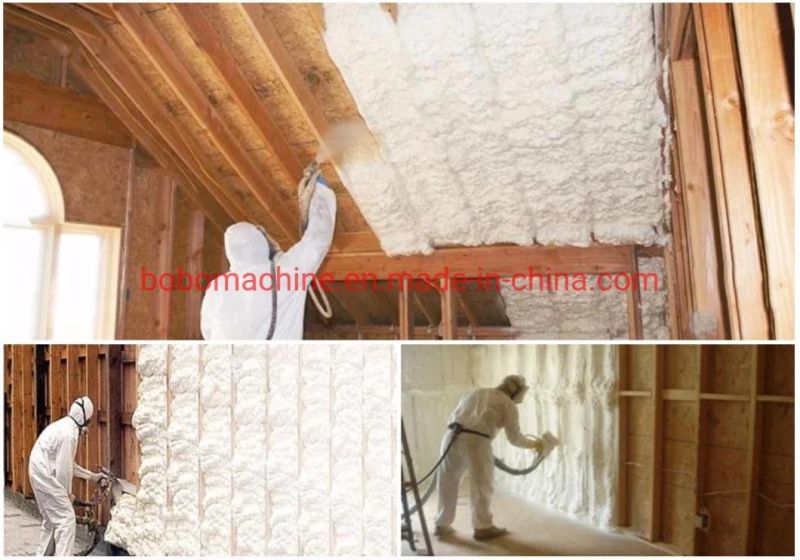

The Pneumatic pu foam spray machine is used for wall roof, refrigeratory, and box, pipe insulation purpose.


Feature of Pneumatic pu foam spray machine
Hydraulic driven for smooth work
Pneumatic motor with air compressor
High precision proportion pump
Main machine heating system
Pneumatic PU Foam Spray MachinePneumatic PU Foam Spray MachinePneumatic PU Foam Spray MachinePneumatic PU Foam Spray MachinePneumatic PU Foam Spray MachinePneumatic PU Foam Spray Machine

Main technical data of Pneumatic pu foam spray machine
Max. flux capacity4-8kg/min
Max. material temperature80 centigrade
Mixing pressure5-10Mpa
Heating capacity9.5kw
Max. hose length90m
Drive methodPneumatic with air compressor
Motor power380v, 50/60HZ,   3 phase
Demension800*700*1250mm
Weight157kg

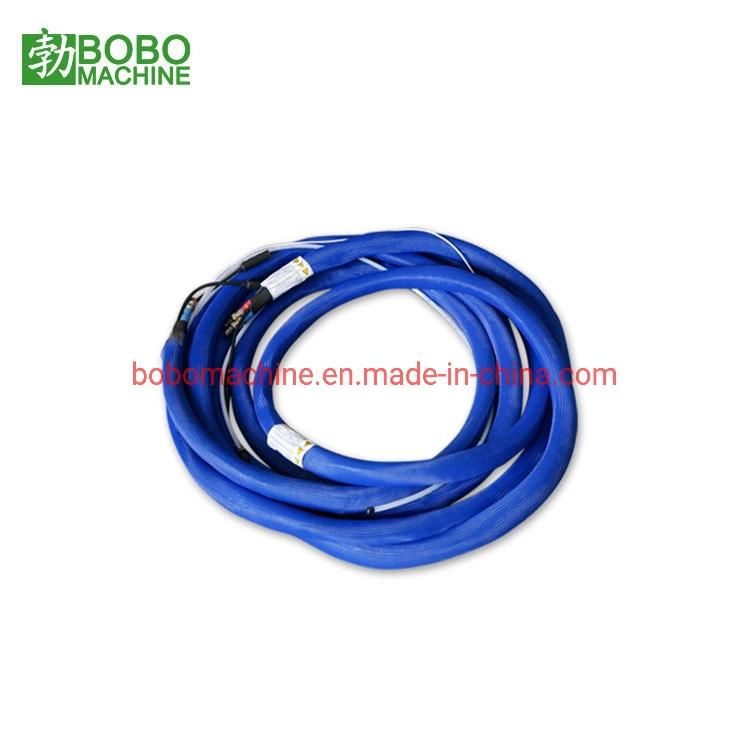

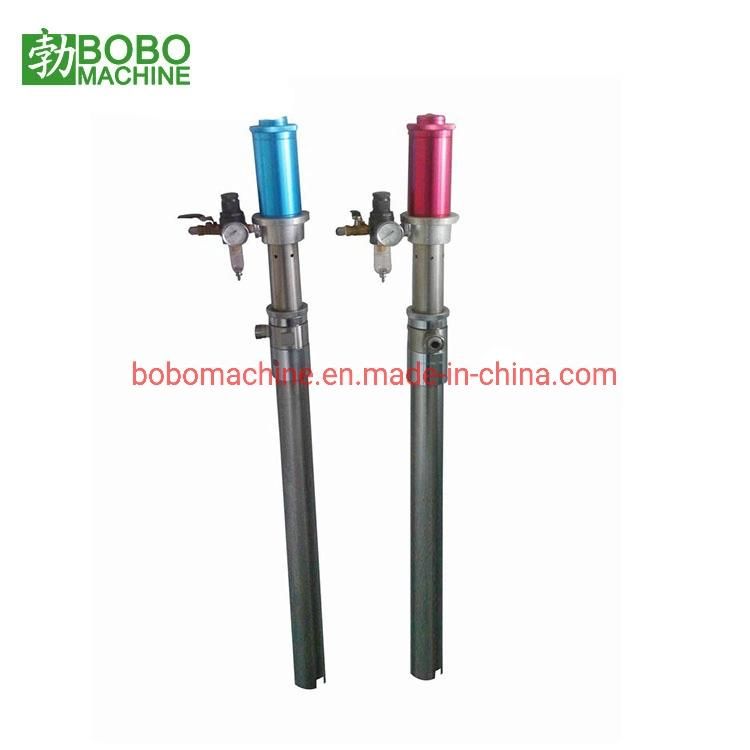

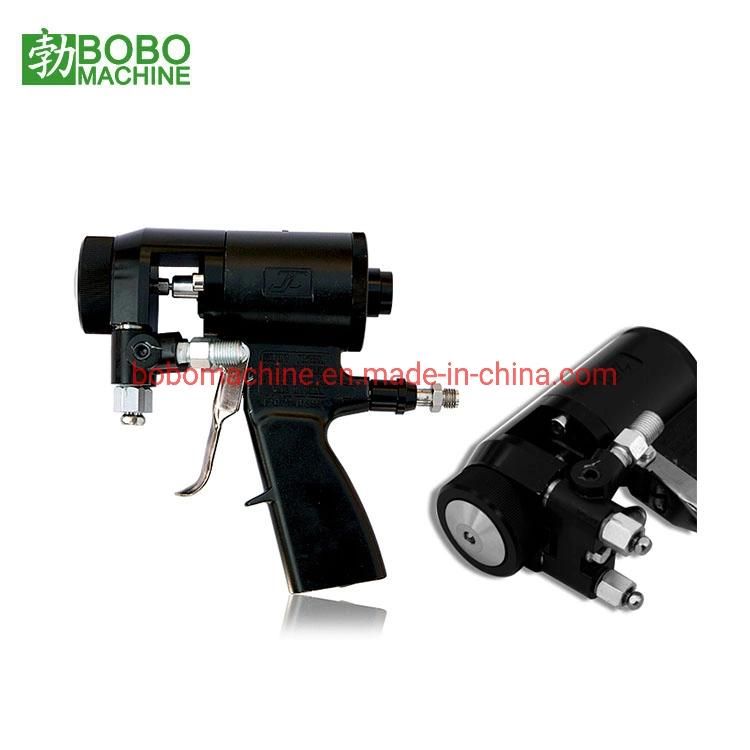

Standard configurationmain machine, meterial pump, spaying gun, 15m long heating hose
