• Model NO.：MT63
• Condition：New
• Transport Package：Wood
• Specification：sgs
• Trademark：middle tech
• Origin：Zhangjiagang City
• HS Code：84772090
• Production Capacity：300kg,Hr

Basic Info.

Model NO. MT63 Condition New Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84772090 Production Capacity 300kg/Hr

Product Description

plastic PE PP LDPE electric/electrical/electricity conduit pipe making machine

GENERAL DESCRIPTION

Through technology combination and continuous innovation, Midtech pleased to provide energy saving (15% down), high capacity (exceed 25% ), high standard (PLC Intelligence), reliable quality (SKF bearing) PE/LDPE/PPR Extruder and pipe extrusion and production line.


Model/data	Pipe diameter(mm)	Co-extruder model	Speed (m/min)	Max capacity (kg/h)	Installed power(kw)	Dimension(m)	weight(t)
MT65/33	20-110	LSJ25/25	0.3-12	150-180	98	36*3.1*2.2	10.5
MT75/33	63-160	LSJ25/25	0.5-5	220	120	40*3.2*2.4	12.5
MT90/33	160-400	LSJ30/25	0.5-2	450	320	52*3.3*2.6	27.5
MT120/33	355-630	LSJ30/25	0.1-1	800	510	60*3.5*2.8	41
MT150/33	400--800	LSJ45/25	0.1-0.5	1000	630	68*3.6*3.0	62.1


MAIN FEATURES

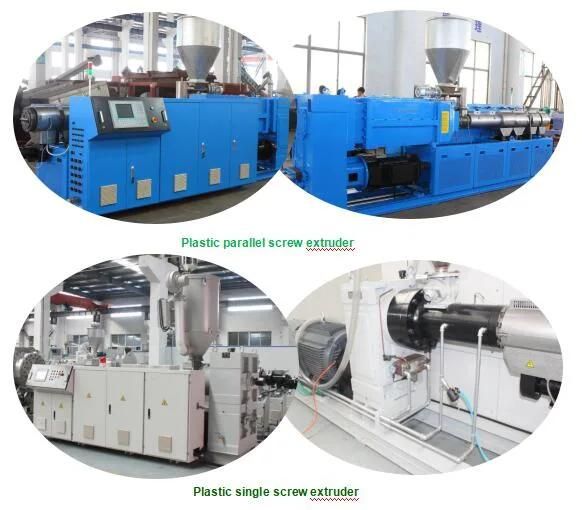

1)  Single screw extruder
adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.

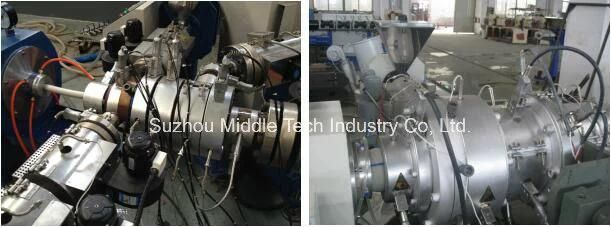

2)  Extrusion die head
is spiral type, good calibrating makes good quality pipe production.
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.

3) Vacuum calibrating tank and water spraying cooling tank
adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system.

4) Haul-off machine
adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight-claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes.

5) Cutting machine
Non-scraped cutting, saw cutting or planetary cutting can be applied, accurate cutting, reliable property, high efficiency. Meter-counting device is also installed.

OUR SERVICES


We have over 7 years of experience of plastic extruders, for over 7 years our strong point are to design and manufacture efficient, durable and easy to use equipment. Now we have a professional technical team to support our products' update, pre-sales and after-sales service. "Clients first" are our working principle.

Pre-Sales Service
* Inquiry and consulting support.
* Equipment pre-commissioning& testing support.
* View our Factory.

After-Sales Service
* Machinery warranty time is 12 months starting from the date of Bill of Lading. Electric and electronic parts excluded.
* Training how to install the machine and how to use the machine (Free training in our factory).
* Engineers available to service machinery overseas.

If you do need any support, please don't hesitate to contact me on 0086-13962227556.
