Double-Side Double Colors Film Blowing Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service:Technical Support Online
  • Warranty:One Year
  • Type:PE Film Blowing Machine
  • Raw Material:PE
  • Maximum Folding Width of Film:600mm
  • Screw Diameter:50mm

Base Info

  • Model NO.:FB-F
  • Automation:Non-Automatic
  • Computerized:Non-Computerized
  • Machine Weight:3.6t
  • Certification:CE, ISO9001:2008
  • Screw Quantity:2sets
  • Thickness of Film:0.01-0.1mm
  • Extrusion Output:30-40kg,H
  • Winder:Single Station
  • Film Color:2 Colors
  • Rewinding Motor:10n.M
  • Die Head:Double Layers Coextrusion Type
  • Guarantee:1 Year
  • Transport Package:Stretch Film or Wooden Case
  • Specification:CE, ISO9001 certificate
  • Trademark:HOIN
  • Origin:Ruian, Zhejiang, China
  • HS Code:8477301000
  • Production Capacity:20 Set,Month

Description

Basic Info.

Model NO. FB-F Automation Non-Automatic Computerized Non-Computerized Machine Weight 3.6t Certification CE, ISO9001:2008 Screw Quantity 2sets Thickness of Film 0.01-0.1mm Extrusion Output 30-40kg/H Winder Single Station Film Color 2 Colors Rewinding Motor 10n.M Die Head Double Layers Coextrusion Type Guarantee 1 Year Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477301000 Production Capacity 20 Set/Month

Product Description

It can blow low density polyethylene (LDPE), high density polyethylene (HDPE), color striped plastic film, and other plastic films.

Double-color film blowing machine set used for blowing low density polyethylene (LDPE), high density polyethylene (HDPE), color striped plastic film, and other plastic filmsFeatures and

Main Feature

1) Cylinders and screws of the FB-F-600 model extruder are made of high quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing

2) FB-F-600: the auxiliary machine can be freely adjusted within the limits of 700mm according to technical requirements of different materials ] and has is fitted with a pug-in plate mechanism for making vest bags

3) Coiling unit adopts torque motor to keep proper tensions and make rolling even and roll-changes easy

4) Widely used for packing food, fruit, garments, textiles, daily necessities and other civil and industrial products

Use

It is used for blowing the various low density polyethylene(LDP)and high density polythylene (HDPE) colour striped plastic film,etc,which are widely used for packing food,fruit,garments,textile,dailly neccessities and other civil and industrial products.

Characteristics

The cylinder and the screw stems of made of FB-F-600 extruder are mode of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.

FM-600 the auxiliary machine can be freely adjusted within the limits of 700mm according to the rechnological requirements of different materials,and has is fitted with a plug-in plate mechanism for making vest bag.

The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Main Technology Parameter:

ModelFB-F-600FB-F-800
Screw DismeterΦ40mm×2Φ45mm×2
Screw L/D Ratio L/D28:1 L/D28:1
Screw Speed 10-100r/min10-100r/min
Power of Main Motor 11Kw*215Kw*2
Max.Extrusion output 30kg/h40kh/h
Max.Folding Width of Film 600mm800mm
Single-sided Thickness of Film 0.01-0.10mm 0.01-0.10mm
Total Power 28Kw34Kw
Weight of Machine 2200kg2600kg
Overall Dimension(L×W×H) 4000×2000×2800mm4600*2300*3800

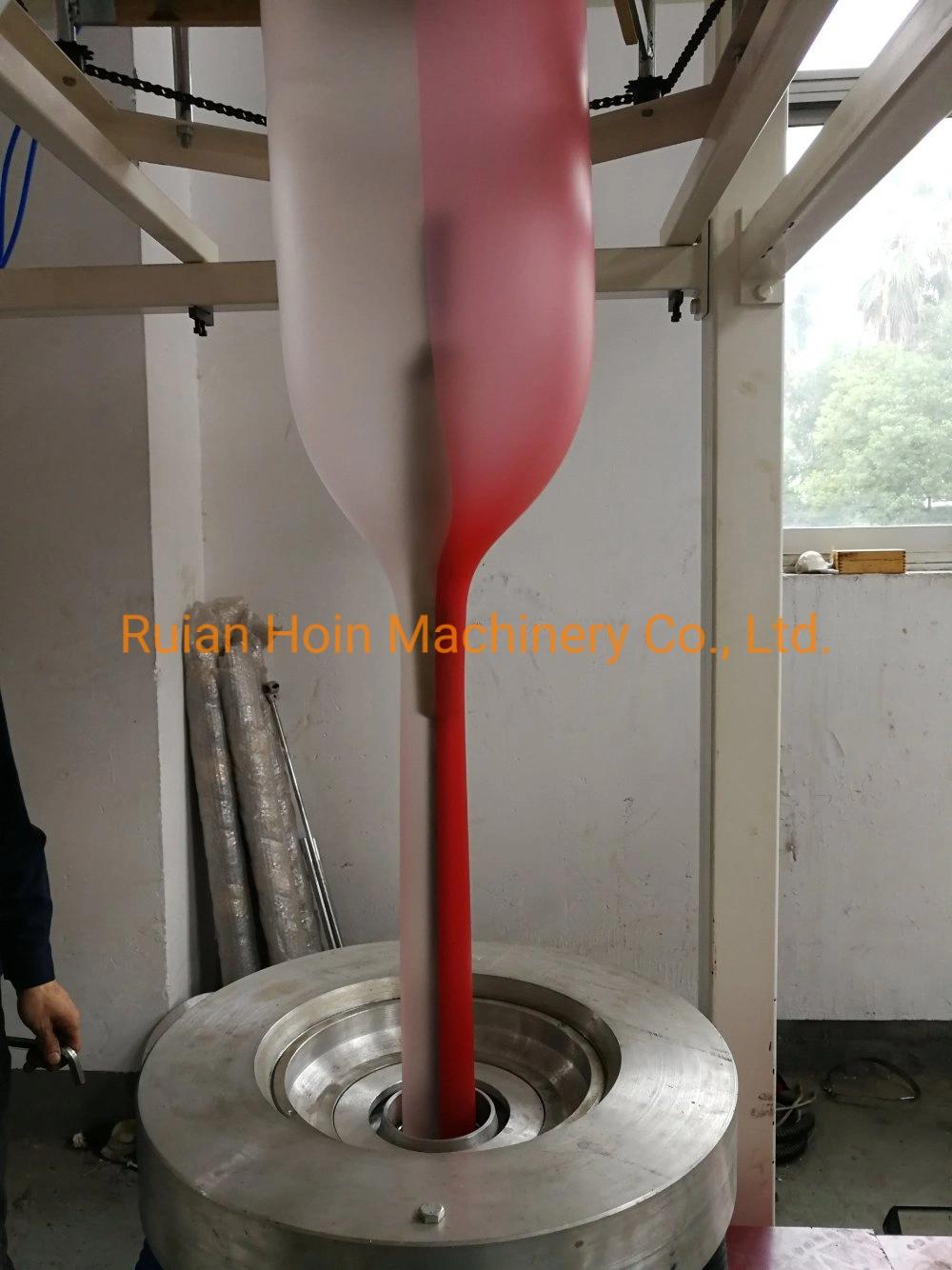

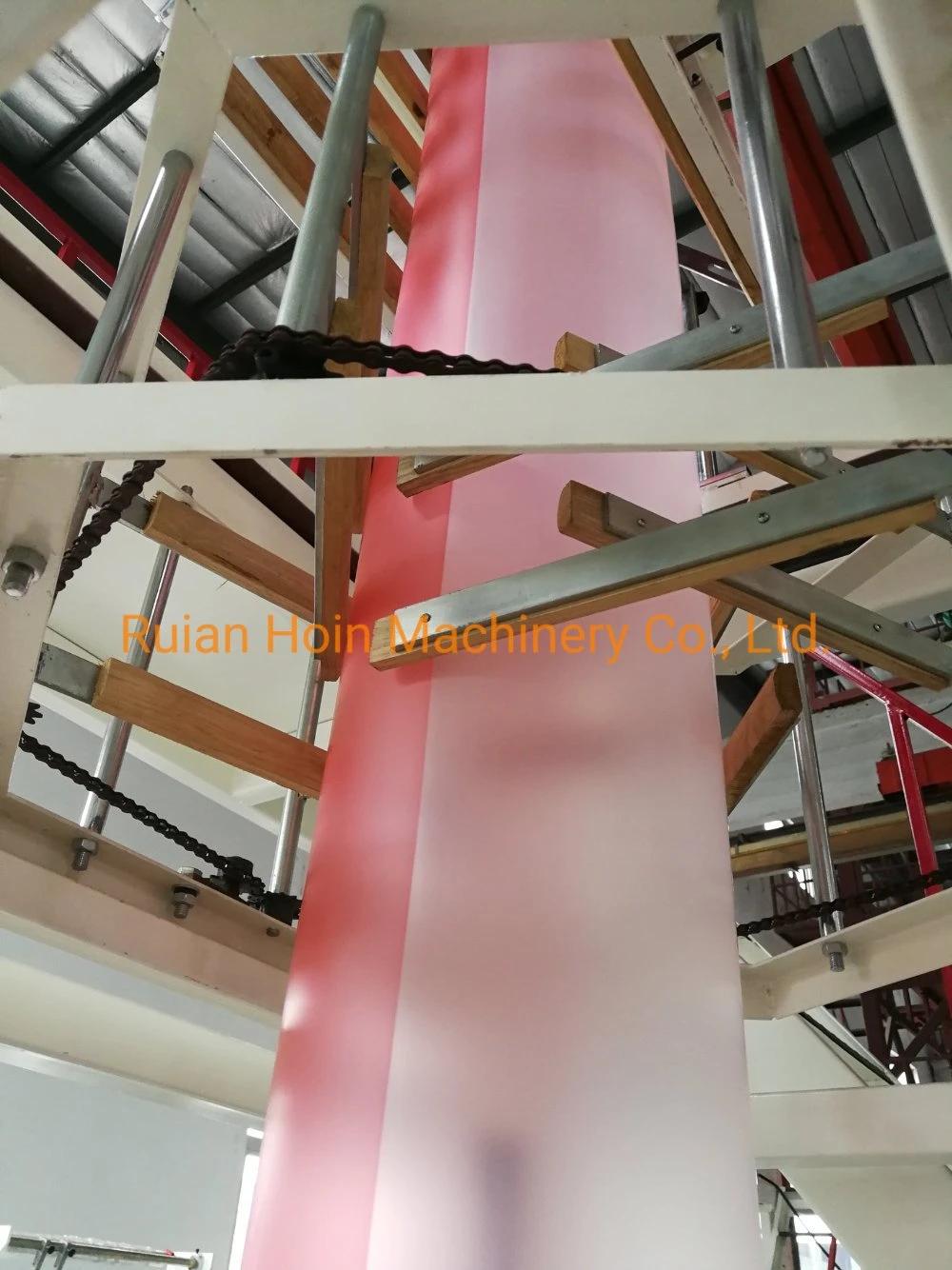

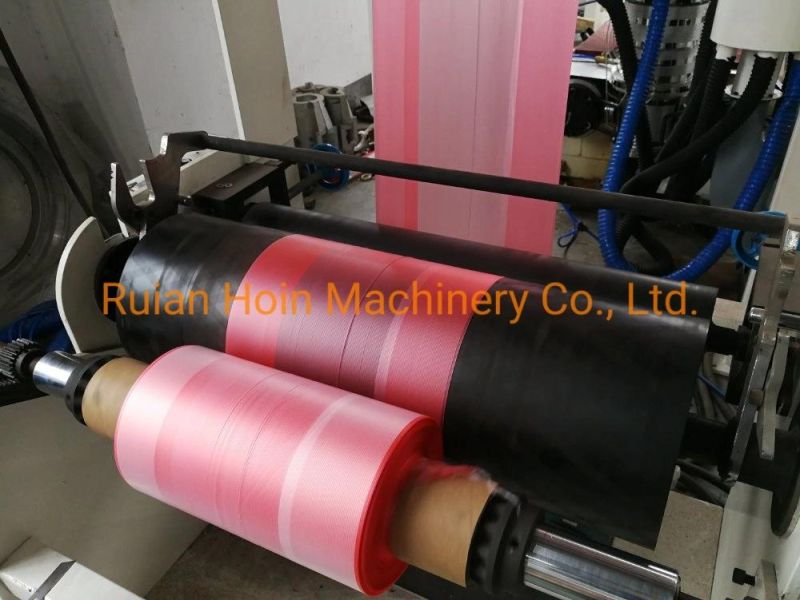

C.Pictures for Reference:

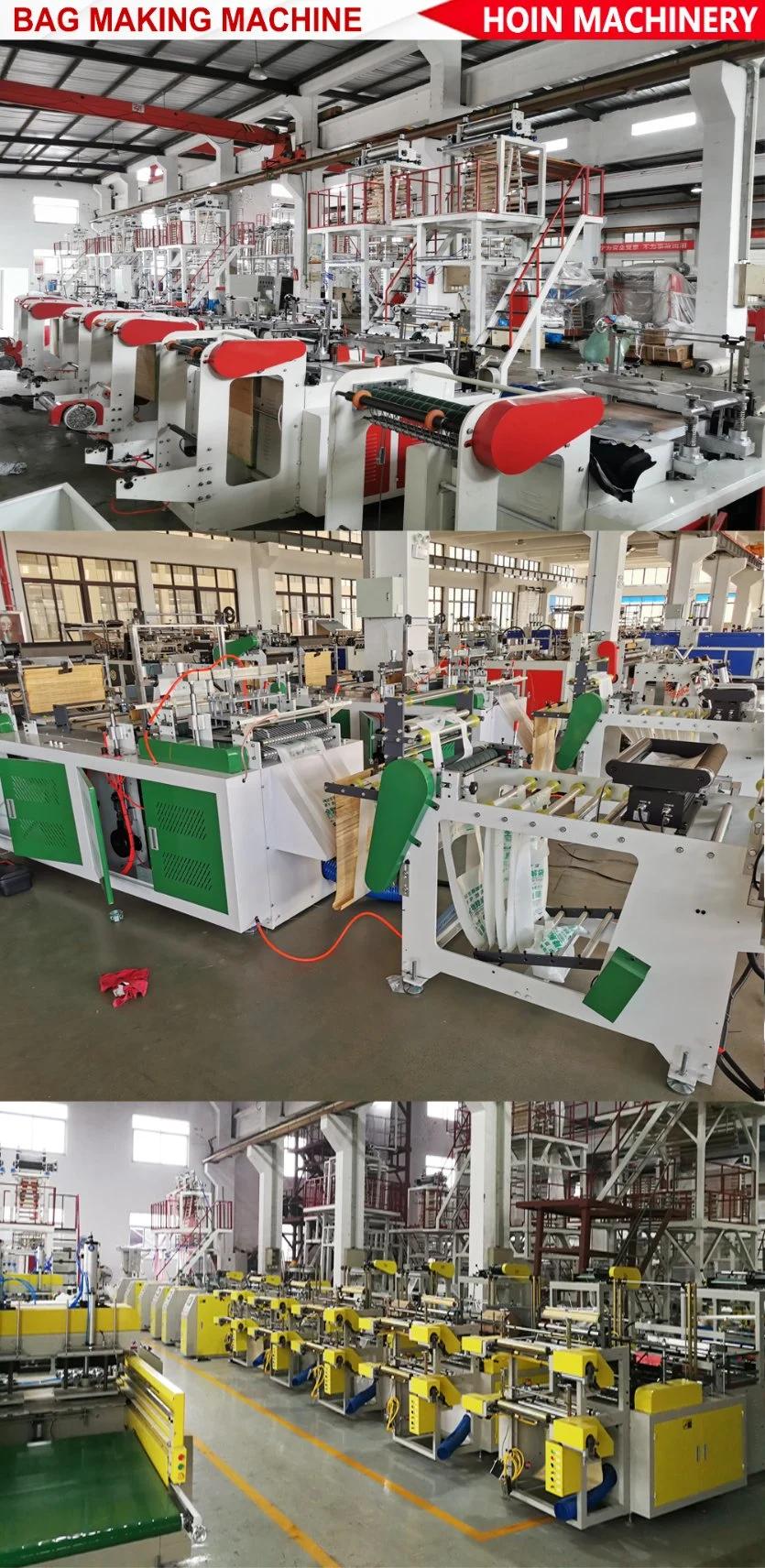

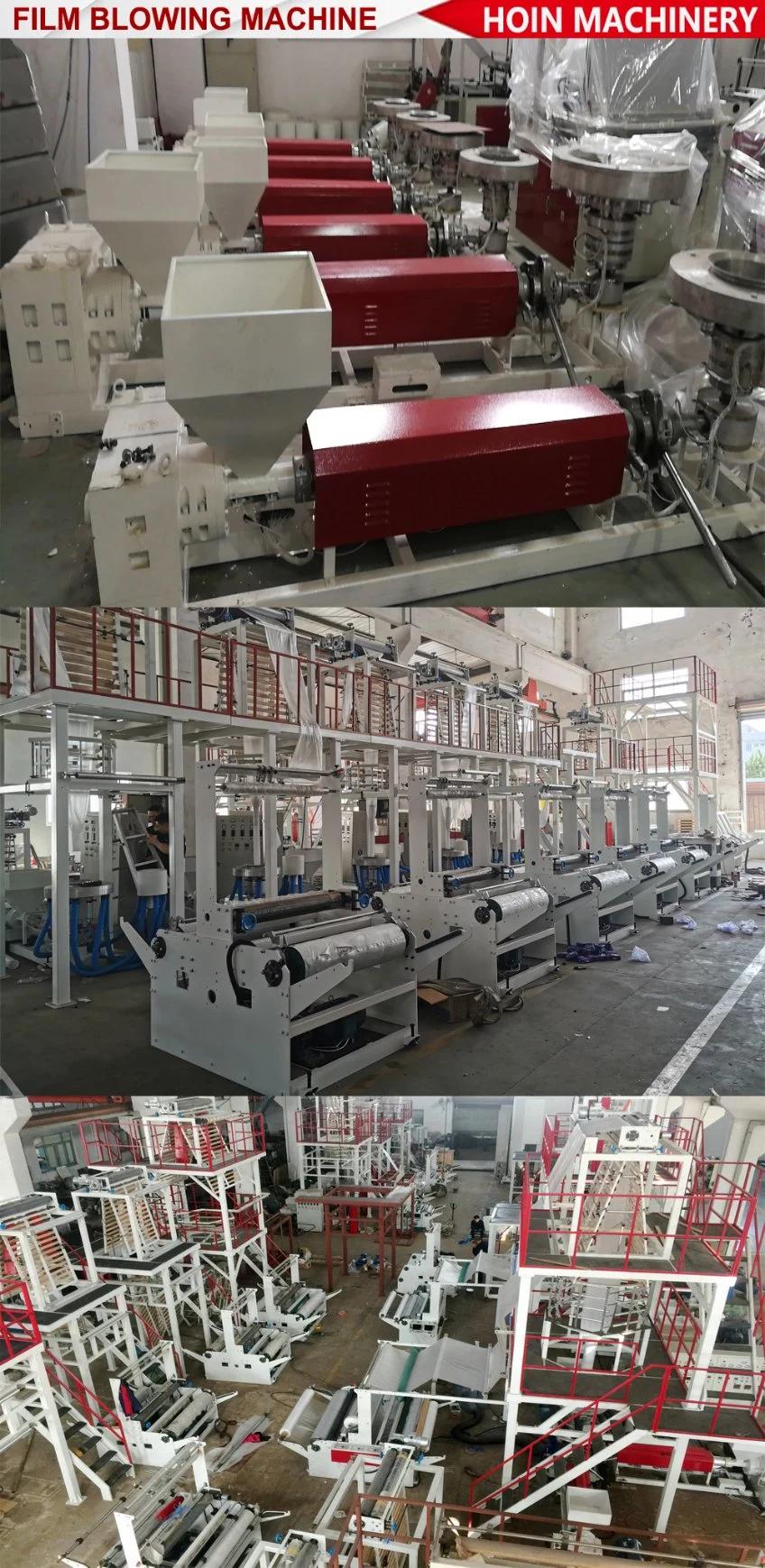

Double-Side Double Colors Film Blowing MachineDouble-Side Double Colors Film Blowing MachineDouble-Side Double Colors Film Blowing MachineD.Workshop of HOIN

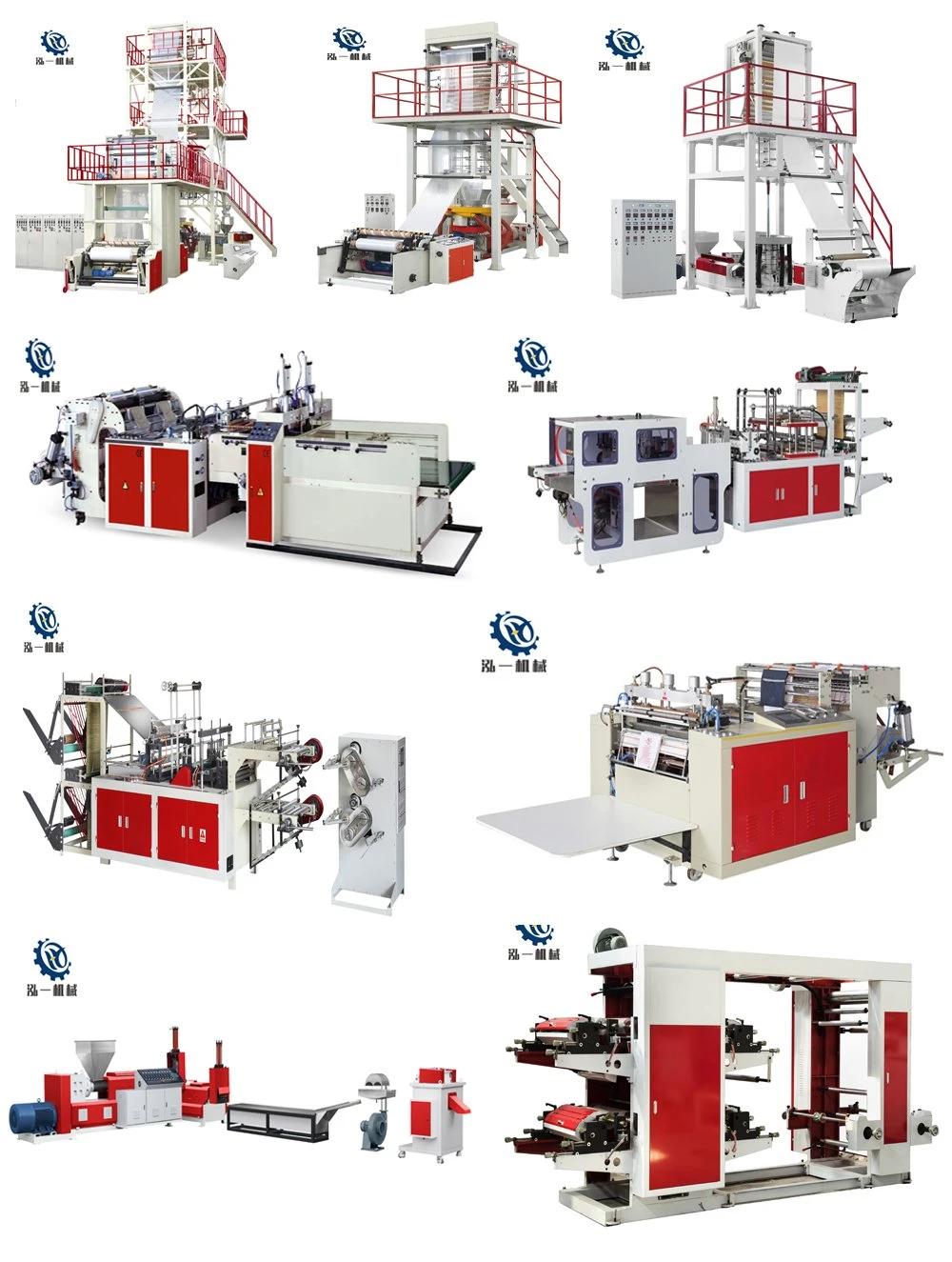

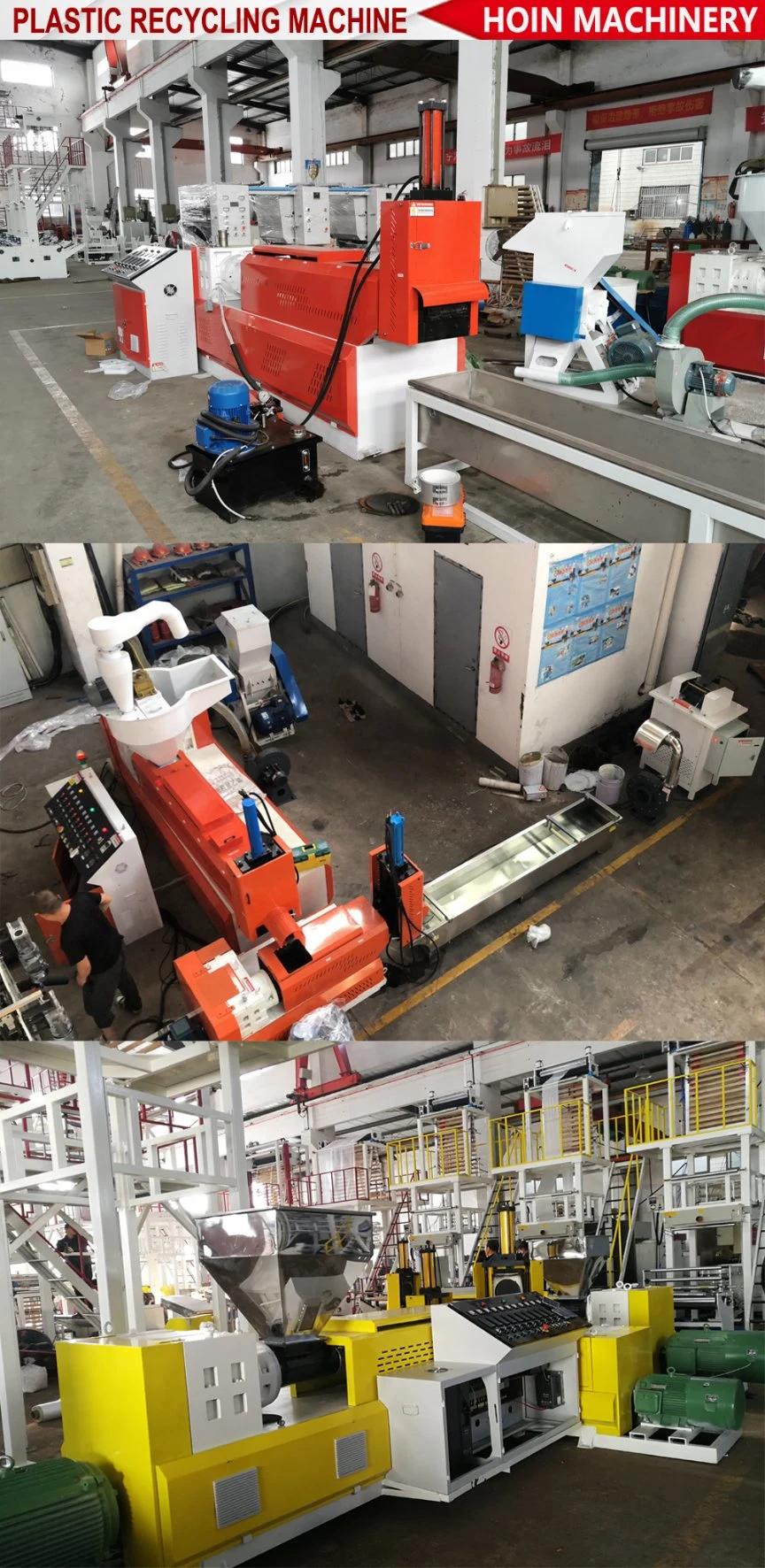

Double-Side Double Colors Film Blowing MachineDouble-Side Double Colors Film Blowing MachineDouble-Side Double Colors Film Blowing MachineE. More Products Optional
Double-Side Double Colors Film Blowing Machine
F. After service of HOIN

1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 80USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
