Pet Flakes Horizontal Dewaterer for Washing Line
Zhejiang Boretech Environmental Engineering Co., Ltd.- Capacity：1500kg,H
- Power：18.5kw
- Water Content：<2.5%
- Dimensions：2573*1631*1750 mm
- Transport Package：Film,Wooded Case,Regular Seaworthy Packing,Ect.
- Specification：2573*1631*1750 mm
Base Info
- Model NO.：TS600
- Trademark：BORETECH
- Origin：China
- HS Code：84211910
- Production Capacity：10 Sets Per Year
Description
Model&UnitCapacity Power Dimensions Water Content (kg/h) (kW) (mm) (%) TS600 1500/3000 18.5/30 2573×1631×1750 2~3 TS800 3000/6000 55 2470×1940×2022 2~3
Standard Process Flowchart for Your Reference (Process as per layout based on customer's factory and rPET flakes applications demand)
De-baling------Metal Separation------ Label Scrapping------- Label Separation-------- Presorting------Bottle Pre-washing ------Automatic Sorting/Manual Sorting -----Wet Grinding-------Drying-------Hot Flotation-------Friction-------Continuous Rinsing-----Drying--------Dust Removal------Packing

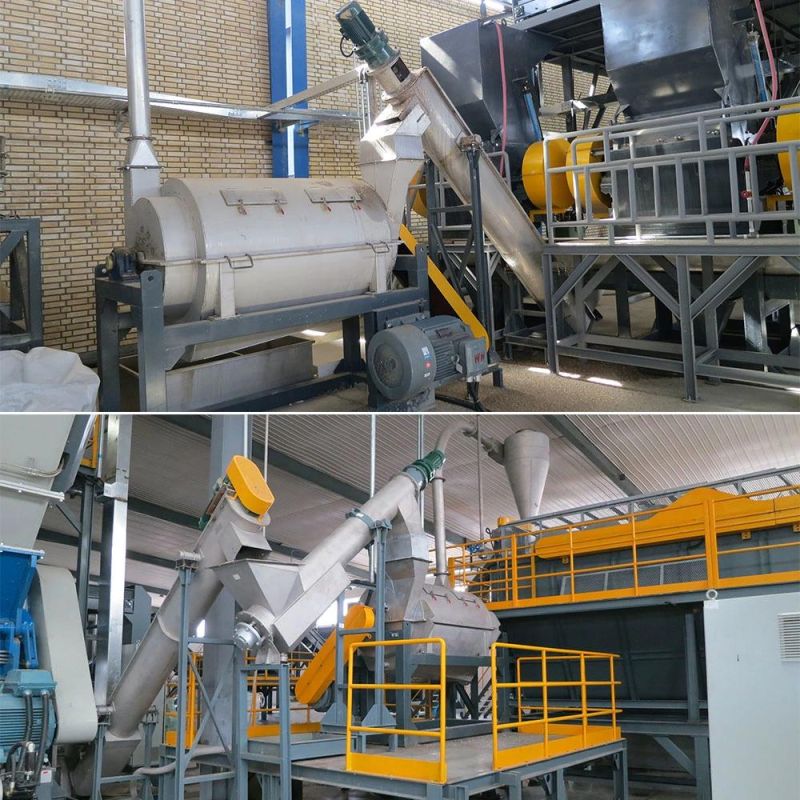

Dewatering Section
De-watering process is running by high-speed mechanical centrifugal force, the moisture content of the flakes will be reduced to be less than 1%. If the heat-exchange air drying is supplemented later, the moisture rate of the flakes will be further reduced to be less than 0.7%.
Standard Process Flowchart for Your Reference (Process as per layout based on customer's factory and rPET flakes applications demand)
De-baling------Metal Separation------ Label Scrapping------- Label Separation-------- Presorting------Bottle Pre-washing ------Automatic Sorting/Manual Sorting -----Wet Grinding-------Drying-------Hot Flotation-------Friction-------Continuous Rinsing-----Drying--------Dust Removal------Packing
Dewatering Section
De-watering process is running by high-speed mechanical centrifugal force, the moisture content of the flakes will be reduced to be less than 1%. If the heat-exchange air drying is supplemented later, the moisture rate of the flakes will be further reduced to be less than 0.7%.
