• Model NO.：SKY-12
• Certification：CE, ISO9001:2008
• Bottle Volume：20L
• Bottle Material：Pet
• Color：Customized
• Capacity：90bph
• Material Screw：Stainless Steel
• Driven Type：Pneumatic
• Mold Cavity：1 Cav
• Auxiliary Equipment：Blow Mould, Auto Loader, Chiller, Mixer, Crusher
• Model：Blow Molding Machine
• Transport Package：Wooden Case
• Specification：1900mm*1850mm*1920mm
• Trademark：SKYM
• Origin：Jiangsu, China(Mainland)
• HS Code：84774010
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SKY-12 Certification CE, ISO9001:2008 Bottle Volume 20L Bottle Material Pet Color Customized Capacity 90bph Material Screw Stainless Steel Driven Type Pneumatic Mold Cavity 1 Cav Auxiliary Equipment Blow Mould, Auto Loader, Chiller, Mixer, Crusher Model Blow Molding Machine Transport Package Wooden Case Specification 1900mm*1850mm*1920mm Trademark SKYM Origin Jiangsu, China(Mainland) HS Code 84774010 Production Capacity 20 Sets/Month

Product Description

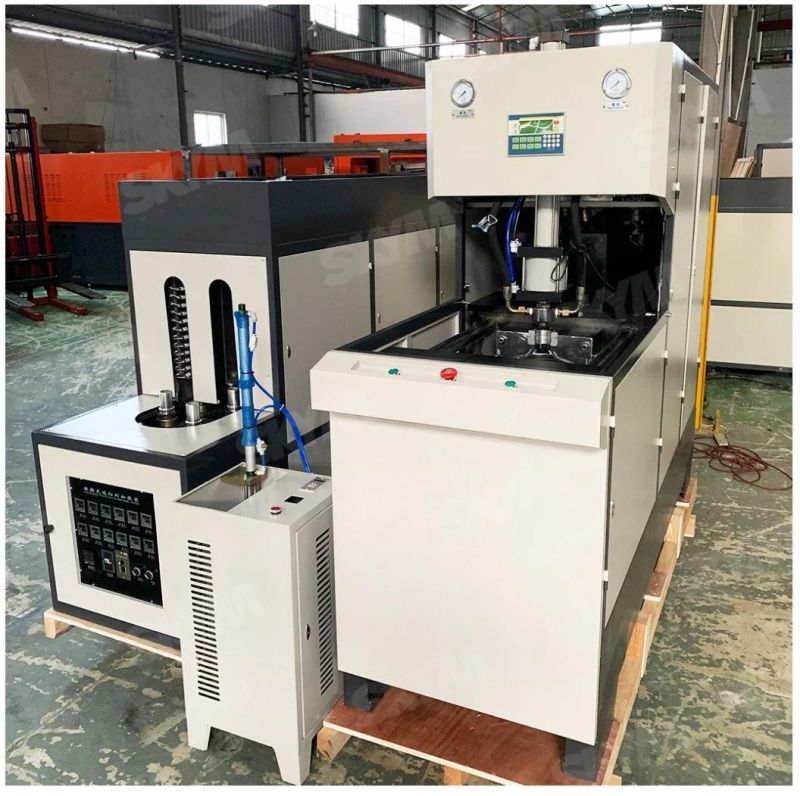

SKYM Semi-Auto PET Plastic Barrel Bottle Making Blowing Machine Equipment

Production Application

Product Description

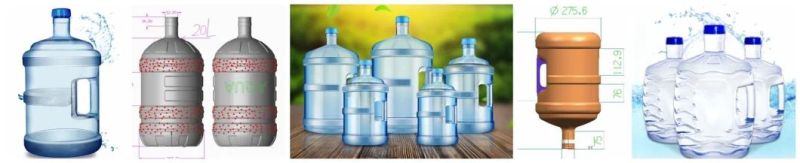

SKY-12 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
Perfect function with economic investment.
Small size and compact construction with no space waste.
Easy to operate and maintain ,operation by one person .
Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mold, the cross fixed. Providing high pressure blowing system.
We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.

 Semi automatic Bottle Blower Model List

Model	Bottle Volume	Theoretical Output	Blower(L*W*H)	Blower/Weight	Heater(L*W*H)	Heater/Weight	Power
SKY-12	10L-25L	90-180pcs/h	218*77*196cm	1000kg	237*68*135cm	380kg	40kw
SKY-8Y	0.01L-2L	1200-1600pcs/h	160*60*161cm	500kg	187*63*145cm	250kg	17.5kw
SKY-SA4	0.01L-2.5L	2000pcs/h	190*88*180cm	1000kg	190*66*160cm	380kg	18kw
SKY-5L	0.01L-5L	300-800pcs/h	175*67*186cm	600kg	187*63*145cm	250kg	17.5kw
SKY-10L	5L-10L	300-500pcs/h	193*72*183cm	800kg	187*63*145cm	250kg	17.5kw

Company Information:

Our Services:
1.Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.

2.Training
Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3.Quality guarantee
We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.

4.After sales
1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
2,After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.

FAQ:

Q1:What's your guarantee or the warranty of the quality if we buy your machines?
A1:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
      Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.

Q2:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing
and teaching your technicians how to run the machines.

Q4:What's the delivery time?
A4:30-45 days after the T/T deposit or L/C.

Q5:What's min order quantity?
A5:1 unit
