• Certification：CE
• Model NO.：D-R600
• Blowing：Machine
• Pet：Water Bottle
• Automatic：2cavity
• Application：Household
• Transport Package：Wooden Case
• Specification：CE
• Trademark：D-R
• Origin：Huangyan Taizhou, Zhejiang China
• HS Code：8477300000
• Production Capacity：2.5L, 1500PCS,Hour, 0.5L, 2000PCS,Hour.

https://chinadoria.en.made-in-china.com/product-list-1.html
1, specification of machine -D-R600:
1.1, maximum capacity of products: 500g ;
1.2,quantity of moulds:1set;
1.3,production capacity:400PC/H-2500PC/H;
1.4,dimension of machine:L3200*W1850*H1850;
1.5, weight:5.5T ;
1.6,clamping force:50KN;
1.7, maximum dimension of mould plate:W390*H300mm;
1.8,dimension of mould plate:500*300mm;
1.9,thickness of mould:150-300mm;
1.10, power of oil pump:15KW;
1.11,power of electrical heating:10KW;
1.12,working pressure:0.6MPa;
1.13, diameter of screw:Φ75mm;
1.14,screw L/D ratio:23:1;
1.15,plasticizing capacity:60-70KG/H;

2.0 AUXILIARY EQUIPMENT:
2.1,Air dryer(Model:OMK-1HNF);
2.1.1,dimension:900*600*1100mm;
2.1.2, air flow:1.6N  /min;
2.1.3,working pressure:3.0MPa;
2.1.4,inlet temperature:80ºC;
2.1.5dew point temperature:2-10ºC;
2.1.6,compressor power:0.6KW;
2.1.7,refrigerant:R22;
2.1.8 Dia of connecting pipe: ZG3/4;
NOTE:when the device is in max use,the temp of inlet cooling water temp is 8-12ºC,outlet cooling water temp is 18ºC more or less;
2.2, High pressure air compressor(VH-1.2/3.0).
2.2.1,packing size:1600*850*1000mm;
  Size:1550*800*900mm;
2.2.2,Motor power:15KW;
2.2.3,weight:320KG;
2.2.4,air flow:1.2M3/min;
2.2.5,Max air pressure:3.0MPa;
2.3, Low pressure air compressor(V-1.0/10)
2.3..1,packing size:1500*730*1200mm;
     size:1465*680*1130mm;
2.3.2,Motor power:7.5KW;
2.3.3,weight:357KG;
2.3.4,Air flow:1.0M3/min;
2.3.5,Max air pressure:1.0MPa;
2.4, T/C grade air filter
2.4.1,rated air flow: 2Nm3/min;
2.4.2,Max working pressure: 3.0MPa;
2.4.3, inlet air temp≤50ºC;
2.4.4, filter precision of T filter≤3μm;
     Filter precision of C filter≤1μm;
2.2.5,weight: 2.3KG;
2.5, 5HP water-cooled water chiller:
2.5.1,dimension:910*520*900mm;
2.5.2,compressor capacity:3.15KW;
2.5.3,weight:130KG;
2.5.4,refrigerating capacity:12.4KW;
2.5.5,Pump capacity:0.5HP;
2.5.6,Cold water flow:2.6M3/H;
2.5.7,Voltage:   380V-415V/3P /50HZ;
2.5.8,refrigerator medium: R22

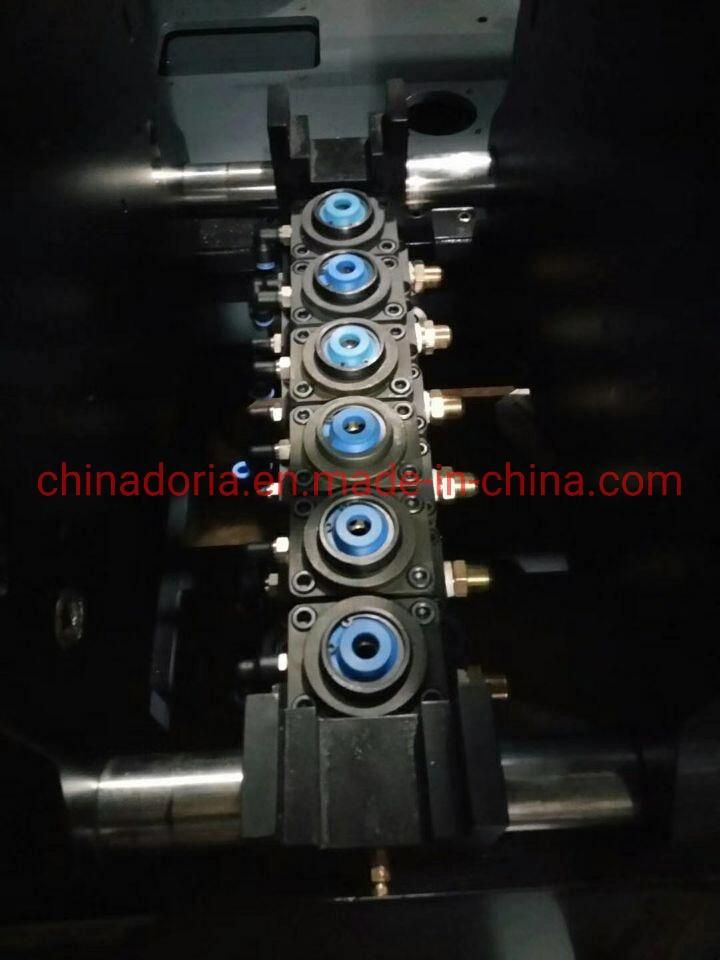

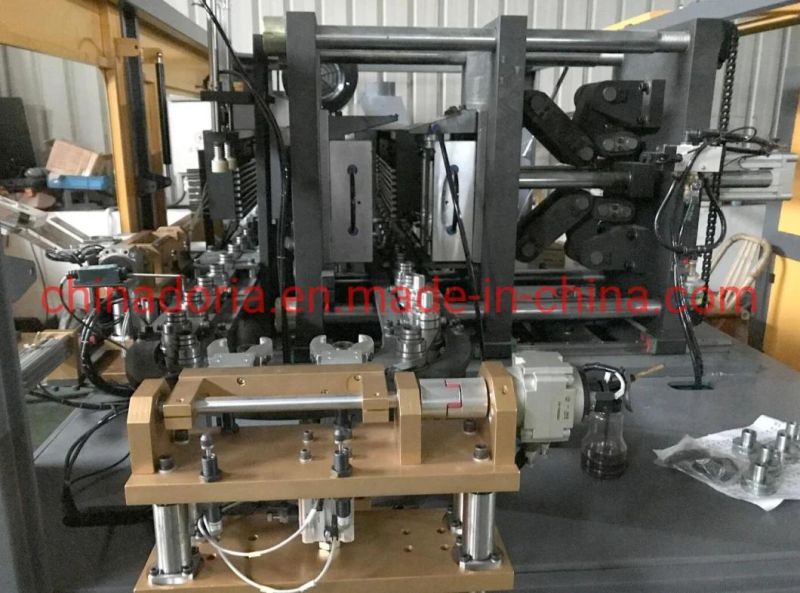

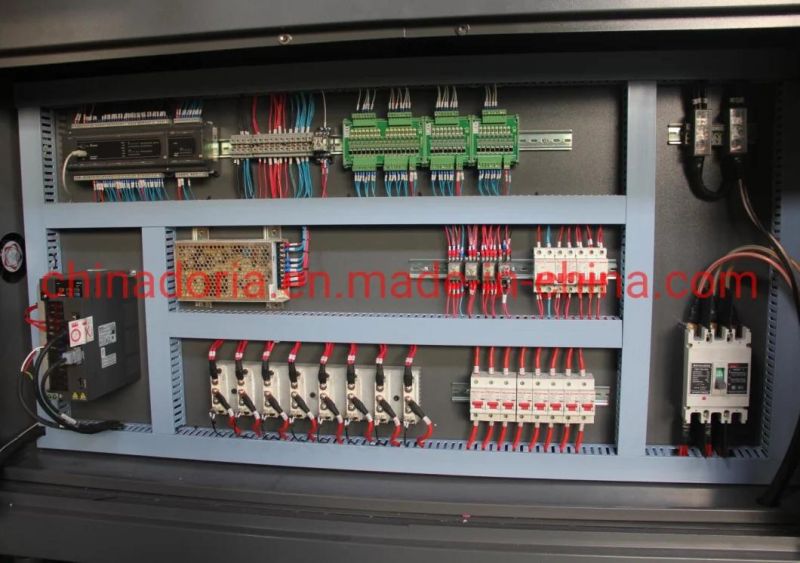

3. Pictures of D-R600
