6/Six Cavity Automatic Blow/Blowing Molding/Moulding Machine for Pet Bottle
Taizhou Doria Plastic Equipments Co., Ltd.- Warranty：1year
- Type：Stretch Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：D-R606
- Certification：CE
- Blowing：Machine
- Pet：Water Bottle
- Automatic：6cavity
- Application：Household
- Transport Package：Wooden Case
- Specification：CE
- Trademark：D-R
- Origin：Huangyan Taizhou, Zhejiang China
- HS Code：8477300000
- Production Capacity：0.5L 8, 500PCS,H, 1L 8, 000PCS,H
Description
https://chinadoria.en.made-in-china.com/product-list-1.html
1, specification of D-R606 (6cavity) main machine:
1.1, dimension of main machine: L3850*W2300*H2070mm;
12. Theoretical output: 0.5L 8,500pcs/h, 1L 8,000pcs/h
1.3, The frame of the machine adopts high quality steel 63# and A3 plate, the whole is in blue and nice in appearance;
1.4. Stretch cylinder and main parts adopt "SMC" brand.
1.5, The conveyor of perform is 45#steel, and the surface of conveyor galvanizes
1.6, adopt automatic loader. The machine will begin to work as long as put perform in the automatic loader. Main process is:
Automatic loading perform heating automatic blowing bottles down automatic
1.7, the revolving heating could make sure each performs heat evenly;
1.8, PLC is Mitsubishi to make sure the machine working steadily.
2, specification of D-R606 blower:
2.1, working voltage of blower: 3P 220V/60HZ. (Could be adjusted according to the customer's demand)
Rated power: 60KW; actual power: 30KW;
2.2, clamping force: 300KN;
2.3, mould opening stroke: 200-280mm (adjusted);
2.4, maximum dimension of mould plate: L350*W960mm;
3, accessories:
3.1, specification of 1.5m3/3.0MPa air tank;
3.1.1, working pressure: 3.2MPa;
3.1.2, temperature: 100ºC;
3.1.3, volume: 1.5
3.2 water chiller: 3HP;
3.2.1, Dimension of equipment: 1000*600*1180mm;
3.2.2, power of pump: 0.5KW;
3.2.3, power of compressor: 2.5KW;
3.2.4, weight: 150KG;
3.2.5, Coolant: R22;
3.2.6, water pressure: 28;
3.3, specification of air dryer OMK-1HNF;
3.3.1, Dimension of equipment: 900*600*1100mm;
3..2, capacity: 1.6 Nm3/min;
3.3.3, working pressure: 3.0MPa;
3.3.4, temperature of air in: 80ºC;
3.3.5 Temperature of air out: 2-10ºC;
3.3.6, power of compressor: 0.6KW;
3.3.7, coolant: R22;
3.3.8, caliber of air connection tube: ZG3/4;
3.4, when the equipment achieves maximum output, the temperature of cooling water is between 8-12ºC, the temperature of water flowing is about 18ºC.
3.5, specification of High Air pressure Compressor:
VH-1.5/30:
3.5.1, dimension of equipment packing:
1680*920*1250mm;
Dimension of equipment: 1600*840*1100mm;
3.5.2, motor power: 18.5KW;
3.5.3, weight: 520KG;
3.5.4, air displacement: 1.5M3/min;
3.5.5, maxima pressure: 3.0MPa;
3.6, low air pressure compressor V-1.6/10
3.6.1, dimension of equipment packing:
1800*800*1540mm;
Dimension of equipment: 1700*760*1440mm;
3.6.2, motor power: 11KW;
3.6.3, weight: 500KG;
3.6.4, air displacement: 1.6M3/min;
3.6.5, maxima pressure: 1.0MPa;
3.7, T/C air filter
3.7.1, rated capacity: 2Nm3/min;
3.7.2, maxima working pressure: 3.0MPa;
3.7.3, temperature of air flow≤50ºC;
3.7.4, filtrate precision of T air filter≤3μm;
filtrate precision of C air filter≤1μm;
3.7.5, weight: 2.3KG;

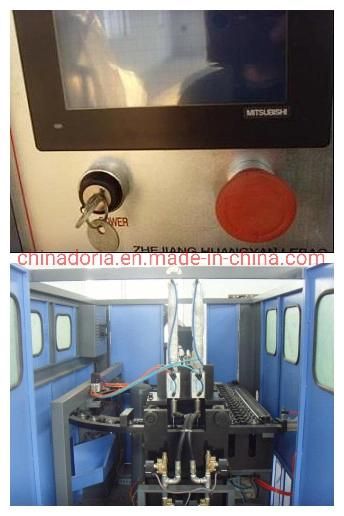

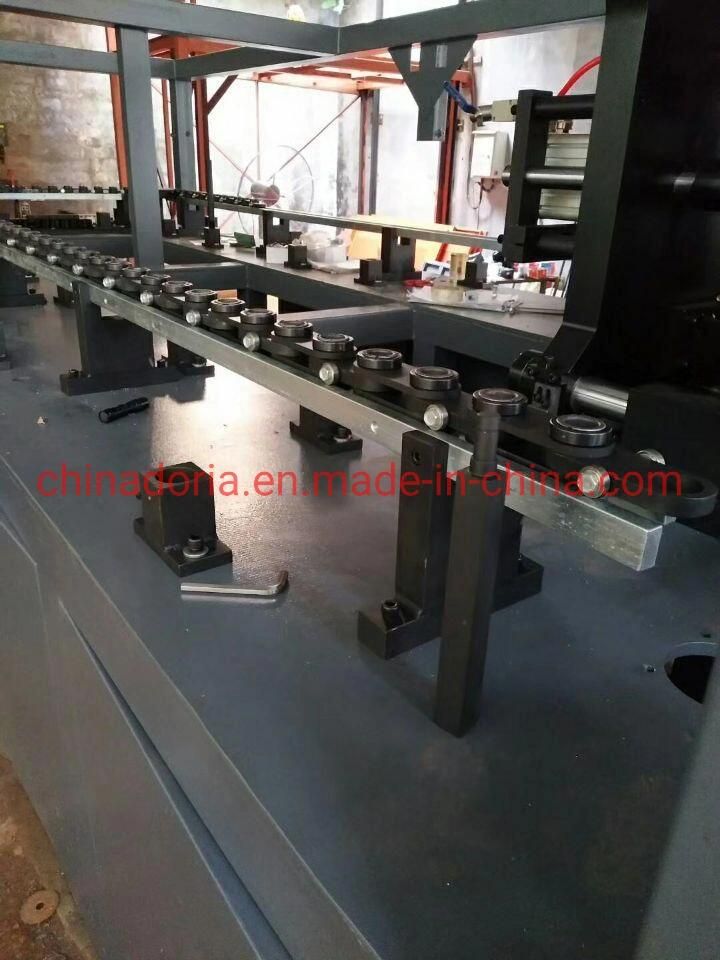

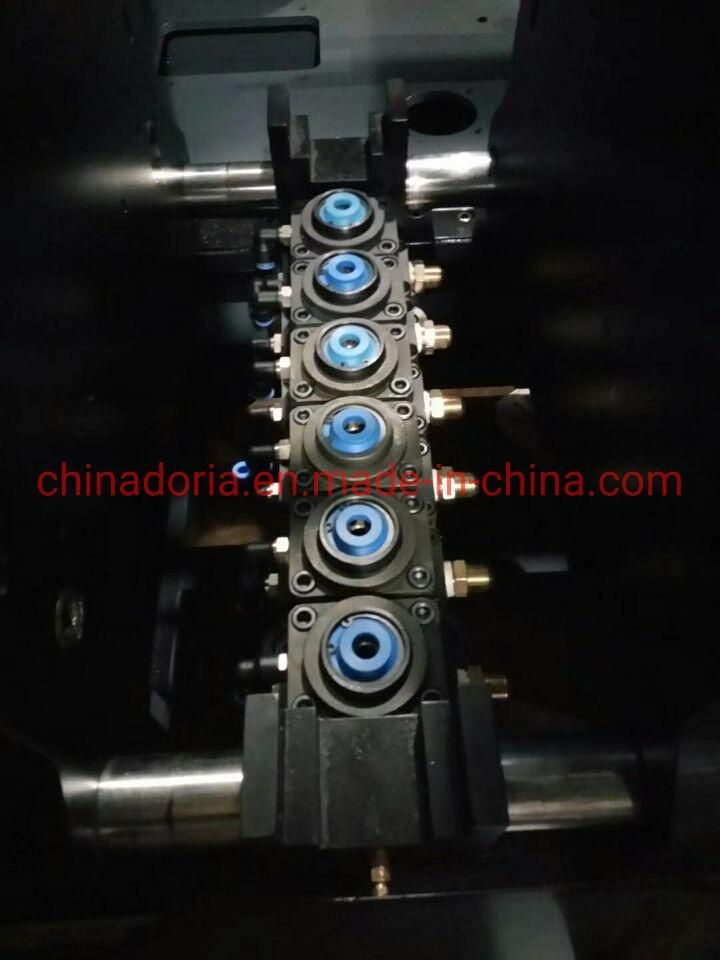

4. Pictures of D-R606
5. Frequently Asked Questions:
Q. What are your company's main products?
A: The main products of Our company are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Q: Can I get free samples?
A: Yes. We would like to send several samples for your reference if you could afford freight.
Q: What surface handing could you support?
A: We cab provide screen printing, hot stamping, frost, label printing etc.
as to printing color: Color can be made according to PANTONE color number.
Q: Do you accept customized order?
A: YES. We can arrange opening the mould according to customers' requirement.
Q: Can I get the bottle samples when the machine is finished?
A: Yes, we will test the machine and send bottle samples to you to check.
6. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
7. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
| No. | Item | Quantity | Remark |
| 1 | D-R606 main machine | 1set | |
| 2 | high pressure air compressor | 1set | |
| 3 | low pressure air compressor | 1set | |
| 4 | high pressure air tank | 1pc | |
| 5 | T /C air filter | 1set (2pcs) | |
| 6 | 3HP water chiller | 1set | |
| 7 | water dryer | 1set |
