Single Shaft Shredder Machine for PE PVC thick wall pipe

Jiangsu Mooge Machine Co., Ltd.
  • After-sales Service：Engineers available to service machinery overseas
  • Warranty：1 year
  • Material Processed：Plastic, Wood, etc.
  • Plastic Type：PE PVC
  • Screw：Single-Screw
  • Automation：Automation

Base Info

  • Model NO.：VS, VS series
  • Computerized：Computerized
  • Certification：ISO9001:2008, CE
  • Rotor Dia(Mm)：400 or 480
  • Rotating Speed：83rpm
  • Main Motor Brand：Wn of China
  • Gear Box Cooling：by Water
  • Safety Design：with PLC Auto Control
  • Knife Roll：Solid Knife Roller
  • Name：Single Shaft Shredder
  • Capacity：300kg-2000kg,H
  • Mesh Dia.：40mm or Customized
  • Gear Box Brand：Boneng Best of China
  • Boneng Best of China：by Air
  • Transport Package：Standard Exporting Package
  • Specification：according to layout
  • Trademark：Mooge
  • Origin：China
  • HS Code：8343770
  • Production Capacity：100 Set Per Year Shredder

Description

Overview Product Description

Product ParametersModelVS-2860VS-4080VS-40100VS-40120VS-40150VS-48150Motor Power22KW37KW45KW55KW75KW90KWRotor Speed83RPM83RPM83RPM83RPM83RPM83RPMRotor Diameterφ280φ400φ400φ400φ400φ480Rotor Blades QTY2638465874111Fixed Blades QTY122233Screen Dia.(mm)60606060mm60mm60mmCapacity300kg/hr600kg/hr800kg/hr1000kg/hr1500kg/hr2000kg/hrDiemension(mm)2225*1350*18853000*1680*21503000*1880*21503000*2200*24503300*2500*25003300*2600*2500Weight(Kgs)185030003800420055006500Detailed Photos

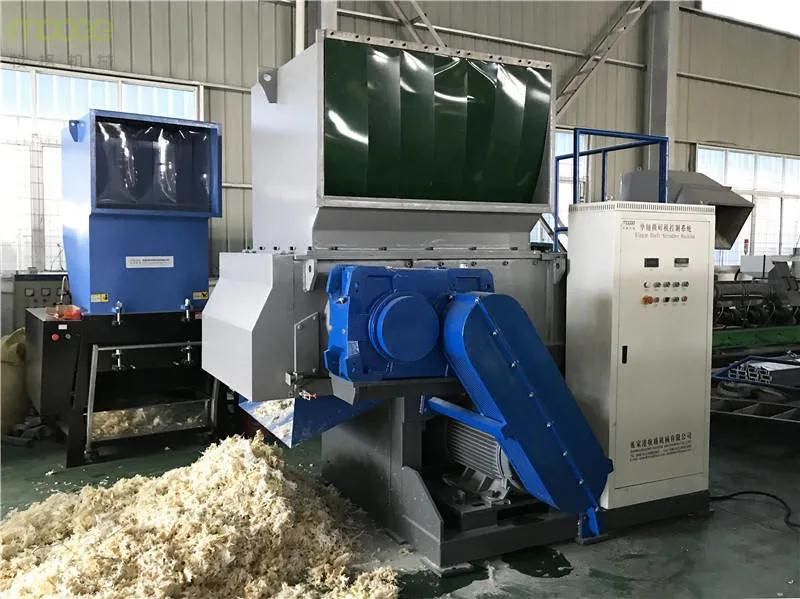

Single Shaft Shredder Machine for PE PVC thick wall pipeSingle Shaft Shredder Machine for PE PVC thick wall pipeSingle Shaft Shredder Machine for PE PVC thick wall pipe

Our service

Our Exhibition

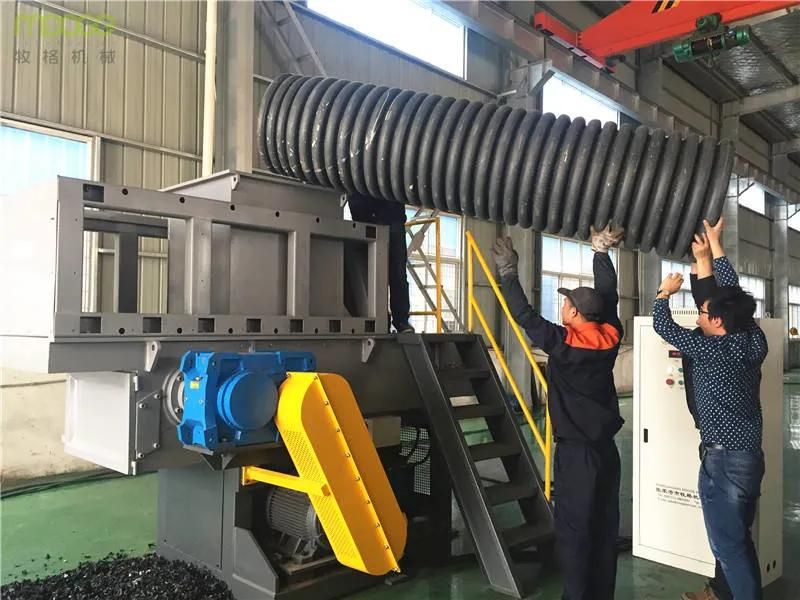

Single Shaft Shredder Machine for PE PVC thick wall pipe

Certifications

Single Shaft Shredder Machine for PE PVC thick wall pipe
