• Model NO.：XDCSJ120
• Feeding Mode：One Feed
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Non-Automatic
• Computerized：Computerized
• Name：PVC Wide Door Plate Extruding Production Line
• Transport Package：WOODEN
• Specification：1500x1200x6000mm
• Trademark：XDC
• Origin：QINGDAO
• Production Capacity：12

Basic Info.

Model NO. XDCSJ120 Feeding Mode One Feed Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Non-Automatic Computerized Computerized Name PVC Wide Door Plate Extruding Production Line Transport Package WOODEN Specification 1500x1200x6000mm Trademark XDC Origin QINGDAO Production Capacity 12

Product Description

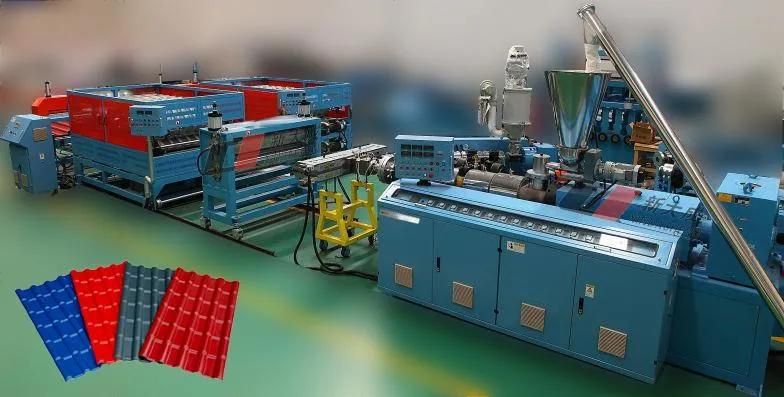

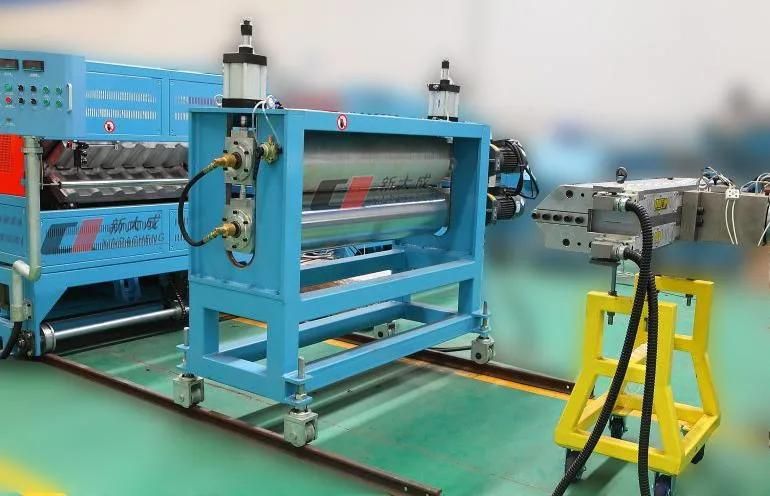

PVC Wave Roof Tile Extruding Production Line


Technical parameter:

plate width	700-1100(mm)
plate thickness	1.2-6(mm)
extrusion capacity	300-500(kg/h)
production speed	0.2-10(m/min)

Product description:

Equipment characteristics:

1.PLC or intelligent control system, easy to operate;

2.Advanced temperature control system, precise in temperature control, reduce energy consumption, improve production efficiency and product quality;

3.Automatic frequency conversion adjustment, being synchronous with production line;

4.Rolled type plate, one-time forming, uniform thickness;

5.Stable horizontal cut-off control, high precision in synchronous cutting, to ensure smooth cut, small cutting noise, closed dust collection;

6.We produce single plate, double plate and multilayer plate based on user's requirements.

Application and characteristics:

Widely used in factories, workshops, warehouses, residence, carport, farmers market, road boarding and other permanent buildings, especially suitable for corrosive industries such as ceramic production workshop, chemical fertilizer warehouse, zinc plating plant, aluminum plant, chemical plant, etc..

1. Good waterproof;

2. Be good at self-cleaning;

3. Body stability. Even if the temperature changes greatly, its performance of thermal expansion and contraction can be self-digested, to ensure stable;

4. light in weight;

5. Good flame retardancy;

6. Be good at insulation, sound insulation and thermal insulation;

7. Excellent impact resistance;

8. Excellent corrosion resistance;

9. It belongs to environmentally-friendly new building materials that are highly recommended by the state. (The PVC material is recyclable and reusable, and it can be further processed as its accessories, such as diesel, etc...)
