• Model NO.：WTFB series
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Color：White and Blue
• Transport Package：2450*2200*3120mm
• Specification：3E
• Trademark：3E
• Origin：China
• HS Code：8477800000
• Production Capacity：400 Sets,Year

Basic Info.

Model NO. WTFB series Computerized Computerized Certification CE, ISO9001:2008 Color White and Blue Transport Package 2450*2200*3120mm Specification 3E Trademark 3E Origin China HS Code 8477800000 Production Capacity 400 Sets/Year

Product Description

       3E's plastic shredder is a widely used type of machine.  It consists of a single, solid shaft with square blades bolted into it. This shaft rotates at about 74-83 RPM, depending on the model, and these blades pass through a bed knife on the base of the cutting chamber. A hydraulic ram continually pushes the material against the shaft of the shredder for continuous cutting. It is an ideal machine for plastics, paper, wood, fiber, rubber, organic waste a wide variety of non metallic materials.The size of the machine required for each project depends on the initial size of the material, capacity and the final particle size desired.
       3E's Plastic shredder is almost always used with a screen, which retains the material in the cutting chamber to reduce the material even further. The standard cut on a single shaft shredder is 25-40mm.
Single Shaft Shredder of Plastic shredder(WTF48150B) Application:
        The WTFB series range is a swinging arm shredder which uses gravity to guide material onto the shaft. Controlled by microcomputer (PC), featuring start, stop, reverse functions. It is fitted with an automatic overload return mechanism to prevent damage to rotor and other parts. It runs at high torque, low speed, with low noise output.Suitable for processing a wide range of materials including: Refrigerator, Pipe, Tires, Barrels, Car shell, Aluminum, Copper.

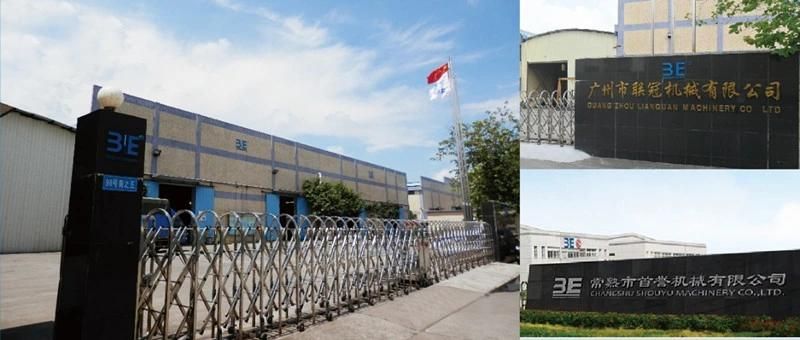

Company profile
3E Group is an integrated company specialized in developing, manufacturing, distributing and providing recycling machinery solutions. Our main entity " Guangzhou 3E Machinery CO. Ltd" founded in 2003, has currently become focusing on "Shredding" and "Recycling industry" modern enterprise.
Technology is the core-competitiveness of 3E Group, we are active in the recycling market and keep cooperating with well-known enterprises in Europe and the USA. Meanwhile, 3E Group keeps on improving and innovating, so far, we awarded 18utility model patents and 3 invention patents.
"Efficient Economical & Environmental" is the traditional idea of 3E Group. With its own intellectual property and solid technological team, our products have been already sold to over 90 regions and countries which include the USA, Europe, Australia, Southeast Asia, Latin America, and Middle East.

Certification
We awarded 18utility model patents and 3 invention patents.

Our service
1.Pre-sale support
l  3E Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
l  On-site inspection
2. After-sale service
l  3E's skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a 3E technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
l  3E holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
l  3E provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
l  Regular return visit



Model  Item	WTB48150	WTB48200	WTB48250
Dimension L/W/H(mm)	2740×3750×2770	2740×4265×2770	2740×4930×2770
Cutting Chamber C/D(mm)	2120×11970	2120×2470	2120×2970
Height of discharge port E(mm)	600	600	600
Cylinder Stroke(mm)	550	550	550
Rotor Diameter(mm)	φ464.8	φ464.8	φ464.8
Main Shaft Speed (r/min)	83	83	83
Screen Mesh(mm)	φ40	φ40	φ40
Rotor-knives(PCS)	90+4	114+4	144+4
Stator-knives(PCS)	3	4	5
Main Motor Power(KW)	90	75+75	90+90
Hydraulic Motor Power(KW)	7.5	7.5	7.5
Weight(KG)	8500	10500	12790
