• Model NO.：20-63mm
• Condition：New
• PVC Pipe：63-1200mm
• Specification：ISO,CE
• Trademark：XJG
• Origin：Zhangjiagang
• HS Code：847780000
• Production Capacity：Uncertain

Basic Info.

Model NO. 20-63mm Condition New PVC Pipe 63-1200mm Specification ISO/CE Trademark XJG Origin Zhangjiagang HS Code 847780000 Production Capacity Uncertain

Product Description

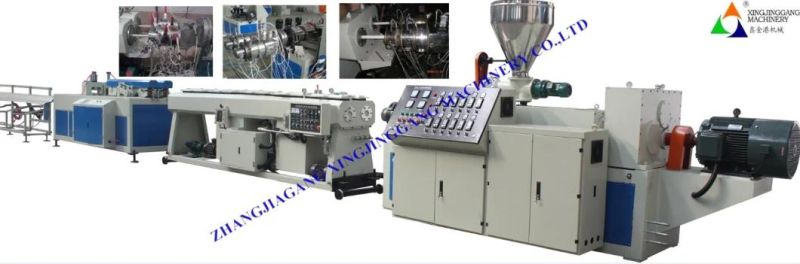

PVC double pipe production line is developed for high output of double pipe extrusion.

The main machine is SJSZ51/105 or SJSZ65/132 conical double screw extruder, which is equipped with double-tube single-control

stainless steel spraying shaper to form a production line. It avoids a waste condition when one tube is adjusted and the other one is affected.

The auto single-control double drawing machine and cutting are combined with the front shaping technology to make operation more flexible.

Let you enjoy economic benefit which is brought about by separately control double-tube extruding.

 The diameter of the extruded pipe is from 20-63mm. It can fully use the extruding capacity of the extruder. Even if it producces small diameter pipe,

it can get great output too.

So, it is your best choise for high output and effecient for PVC double pipe extrusion/ production line



Pipe size range ø16-40mmø16-63mm  Extruder SJSZ51/105 SJSZ65/132  Extruder power 22kw 37kw Extrusion capacity135kg/h 250kg/h  Max. production speed2*8m/min 2*10m/min

 1) conical twin screw extruder (PVC)

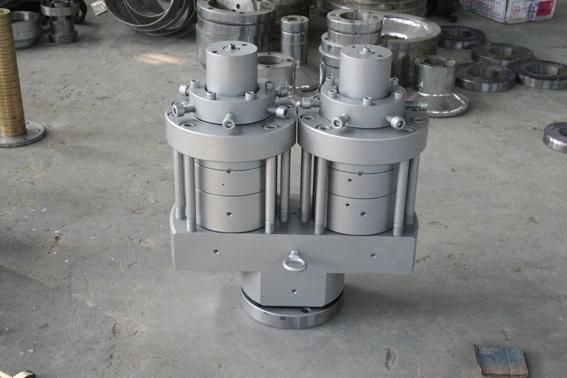

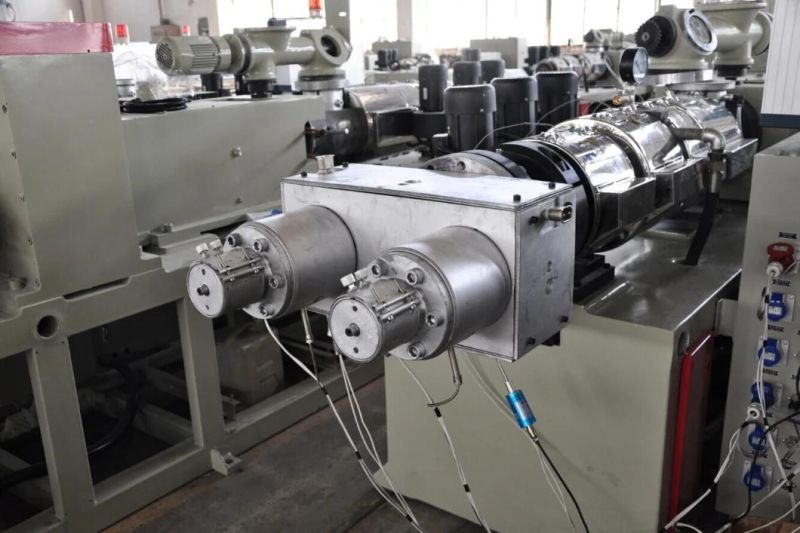

2) die head and mould (double-one)
3) Vacuum calibrating unit (double-one)
4) Spraying cooling tank (double one)
5) hual off unit and cutting machine (double one)
6) stacker



	Machine List	Quantity
1	SJSZ51/105 Conical Twin Srew Plastic Extruder	1
2	Mould	1
3	Vacuum Calibration Tank	1
4	Two caterpillars Hauling Machine -	1
5	Pipe Cutting Machine	1
6	Stacker	1
