• Model NO.：SUD600HE
• Drive Unit：Metabo, Germany
• Preheating Air Volume：500L,Min
• Installation Guidline：Provide Video or Pictures
• Frenquency：50,60 Hz
• Colour：Green
• Transport Package：Carton Boxes
• Specification：CE ISO SGS
• Trademark：SUDA
• Origin：China
• HS Code：84688000
• Production Capacity：100PCS,Week

Basic Info.

Model NO. SUD600HE Drive Unit Metabo, Germany Preheating Air Volume 500L/Min Installation Guidline Provide Video or Pictures Frenquency 50/60 Hz Colour Green Transport Package Carton Boxes Specification CE ISO SGS Trademark SUDA Origin China HS Code 84688000 Production Capacity 100PCS/Week

Product Description

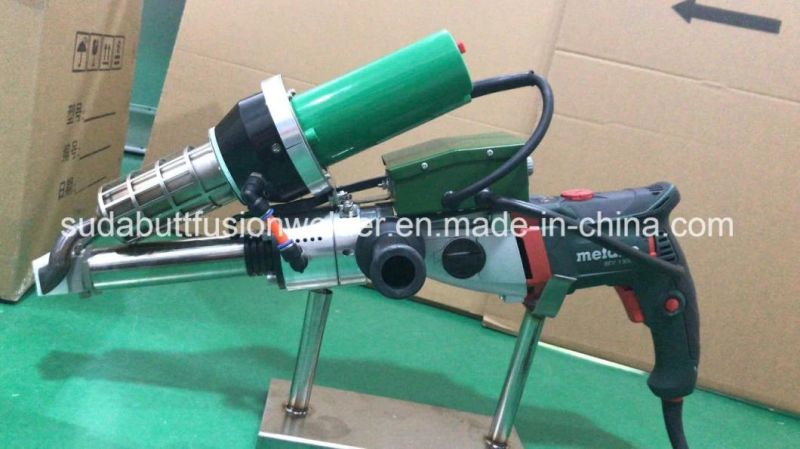

 Plastic Extruder Welding Equipment


SUD600HE Series Extruding plastic gun is a new type of hot air welder which imported foreign advanced technology.
Reasonable structure, convenient operation, continuous welding, high working efficiency, powerful extrusion, to make the weld strength is greatly improved,It is the idealproduct for a variety of thermoplastic welding processing.
Available welding materials: thermoplastic HDPE, PP, PVDF, especially PE .Don't apply in a conductive plastic(PE-EL), or cause the machine to produce a conductive short-circuit.

Main technical parameters>>>

SUD600HE High Power Hand Extruder:

1)Voltage: 220V
2)Power: extrusion system drive motor: 1020W heating systems: heating tube 1020W + hot air welding torch 1600W
3) Temperature: adjustable air temperature 20 to 600 ° C adjustable plastic extrusion heating temperature is 0 ~ 450 °C
4)preheating air volume: 500L/min
5) welding rod diameter size: Φ3.0mm ~ 4.0mm

Appearance and components(SUD600HE for example)>>>





Operation procedures>>>

1) Put the welding gun on the shelf, install the handle, plug in the mains plug.

2) Open the control box switch, welding temperature is generally set at 300 ° C,  Open the hot air machine power switch,
     thermostat knob, heated a few minutes to operate.
3) The right hand pull the motor switch, the motor starts to rotate. The new machines have noise, probably It mostly is
relevant to the resonance between the tool and the base or the close of the parts inside the tool.If the motor is very smooth,
 and the internal sound disappears after sending welding rods.
4)The air temperature and air volumedetermine welding 's strength.Usually hot air temperature is 260 ~ 400 °
5)Hot air motor carbon brush life is about 800 hours, attention to early replacement, do not wait until the carbon brushes to run out.
6) When shutdown, please circumgyratehot air thermostat knob to the minimum, a few minutes blowing before they shut down the hot air machine.

Product Features>>>

1)Imported hot air welding torch and imported driven system, high temperature, big torque, long service life, stable performance.
2)Light weight, easy to handle and available to operation at different angles.
3)Big extrusion volume can be welded more than 10mm welding seam.
4)Different welding shoes can be applied to different types of welding.
5)It is used in the tank and pipe and comply with Part 4 of the DVS standard (Germany Welding Association).

Product warranty>>>
This welding machine warranty period from the date of delivery for one year.

Packaging and shipping of Pipe butt fusion HDPE extrusion welding machine>>>
