Fb-HS-1100 High Speed Film Blowing Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Online Technical Support
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：1000mm
  • Screw Diameter：60mm

Base Info

  • Model NO.：FB-HS-1100
  • Automation：Automatic
  • Computerized：Computerized
  • Machine Weight：4500kgs
  • Certification：CE, ISO9001:2008
  • Suitable Material：LDPE,HDPE,LLDPE
  • Output：120kg,H
  • Die Size：100mm and 120mm
  • Transport Package：Wooden Package
  • Specification：6300*2600*6500mm
  • Trademark：Hoin
  • Origin：Ruian, Zhejiang, China
  • HS Code：8477309000
  • Production Capacity：30 Sets,One Month

Description

modelFB-HS-700FB-HS-900FB-HS-1100FB-HS-1300suitable materialHDPE/LDPE/LLDPEHDPE/LDPE/LLDPEHDPE/LDPE/LLDPEHDPE/LDPE/LLDPElayflat width of film(mm)300-600400-800500-1000600-1200thickness of film(mm)0.008-0.10mm0.008-0.10mm0.008-0.10mm0.008-0.10mmmax extrusion output

HD 60kg/h

LD 80kg/h

HD 80kg/h

LD 100kg/h

HD 100kg/h

LD 120kg/h

HD 120kg/h

LD 140kg/h

extrusion    screw dia(mm)50556065screw L/D30:130:130:130:1screw materialSAC-645/38CRMOALASAC-645/38CRMOALASAC-645/38CRMOALASAC-645/38CRMOALAcylinder materialSAC-645/38CRMOALASAC-645/38CRMOALASAC-645/38CRMOALASAC-645/38CRMOALAcylinder cooling180w*3180w*3180w*3180w*3main motor18.5kw22kw30kw37kwtemperature control zone3333screen change    changer typemanual screen changermanual screen changermanual screen changermanual screen changertemperature zone1111die head    diaHD80mm, LD150mmHD100mm, LD170mmHD120mm, LD220mmHD150mm, LD280mmair ringdouble air ventdouble air ventdouble air ventdouble air ventair blower3kw4kw5.5kw7.5kwtake up unit    roller width(mm)70090011001300take speed(R/MIN)10-9010-9010-9010-90motor power1.1kw1.5kw1.5kw1.5kwstaility ring1unit1unit1unit1unitwinding unit    type of winderauto back to back winder(single)auto back to back winder(single)auto back to back winder(single)auto back to back winder(single)effective width(mm)60080010001200dia of wind roll800800800800wind rolldia300*700Ldia300*900Ldia300*1100Ldia300*1300Lair shaft2pcs2pcs2pcs2pcsdimension L*W*H(m)5.5*2.1*5.56*2.3*6.06.3*2.6*6.56.6*2.8*6.8average power consumption18kw/h20kw/h24kw/h28kw/hoptional device     digital corona treaterembossing rollerfast screen changerauto double winders

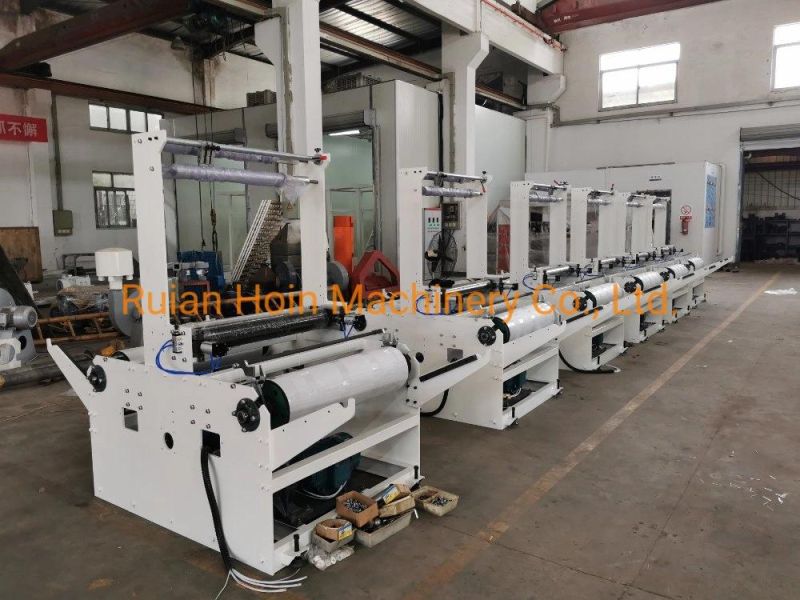

1. Detail picture of machine:

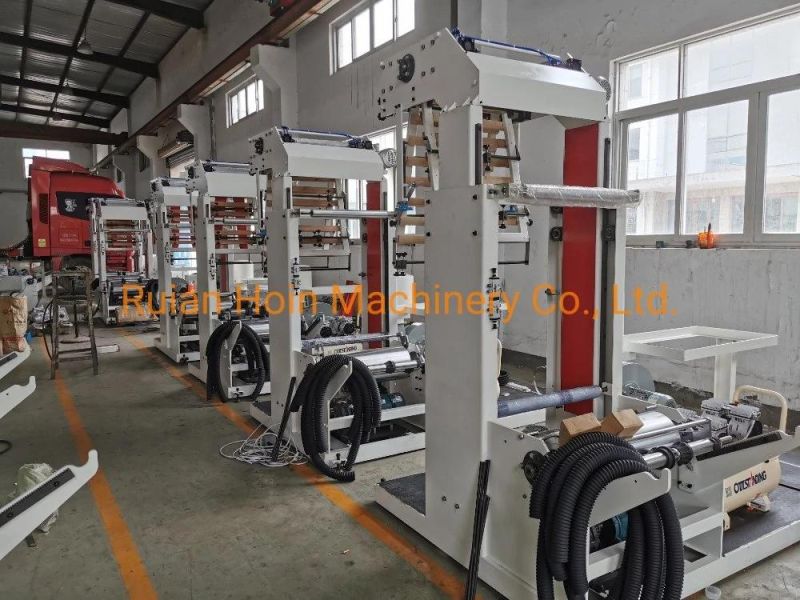

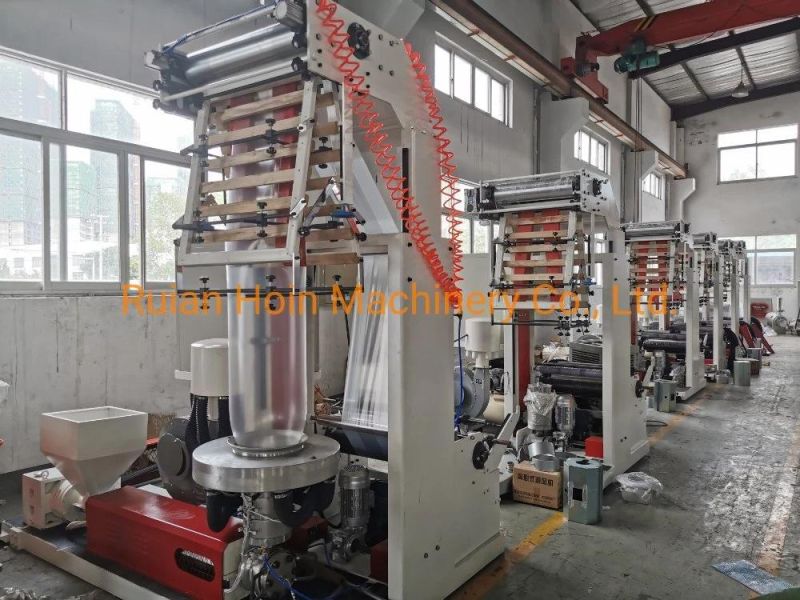

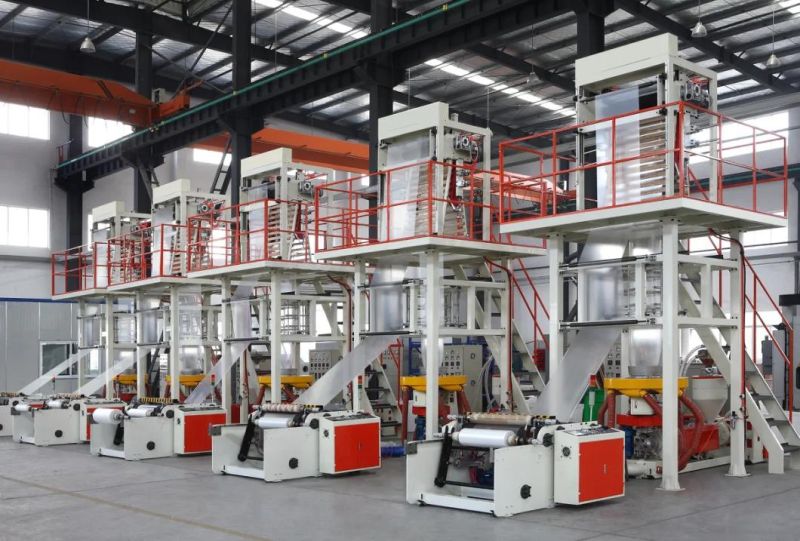

Fb-HS-1100 High Speed Film Blowing MachineMachine Pictures for Reference:
HDPE-LDPE Dual-Purpose Film Blowing Machine Set (SJ-45--100)HDPE-LDPE Dual-Purpose Film Blowing Machine Set (SJ-45--100)

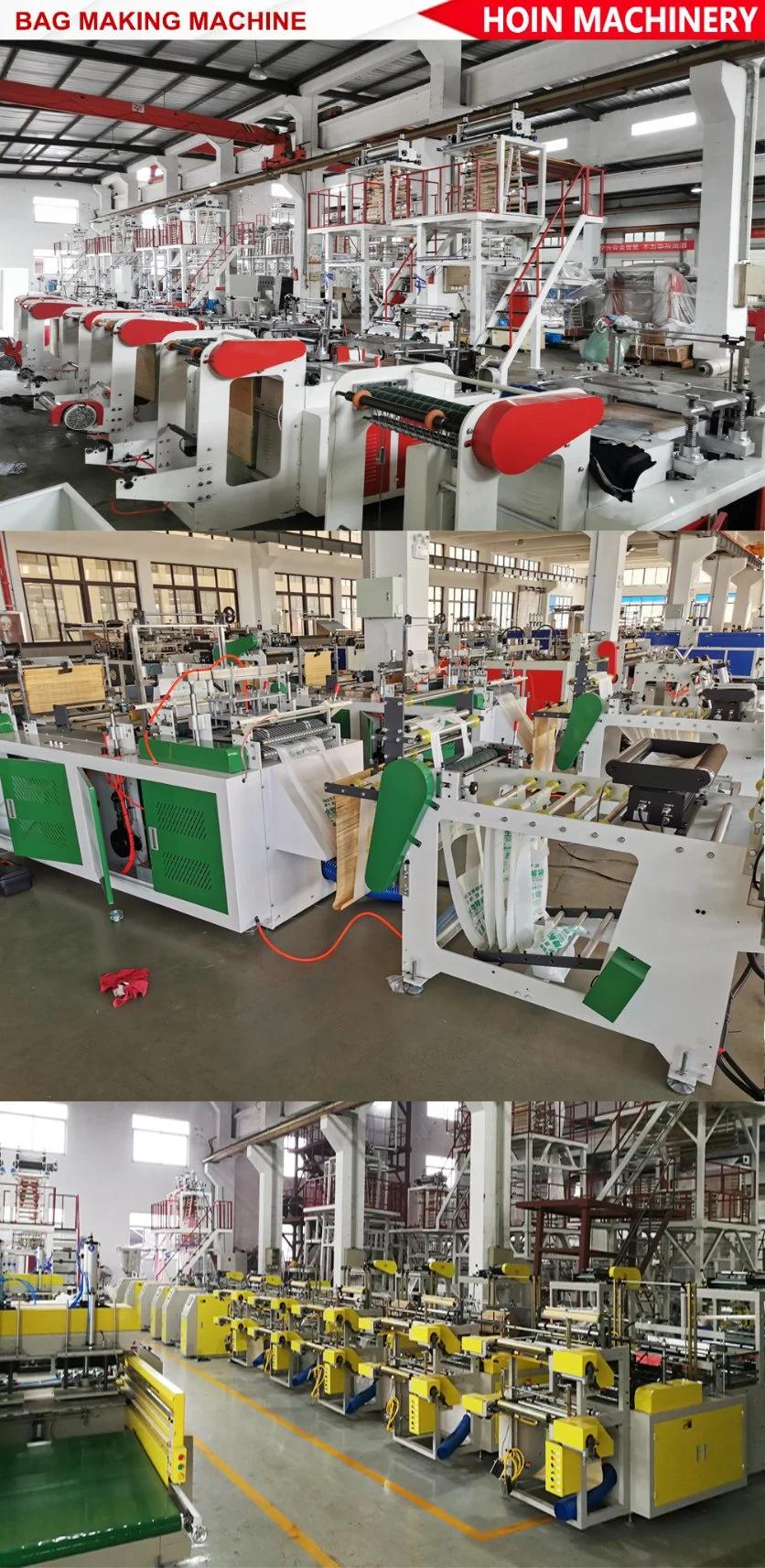

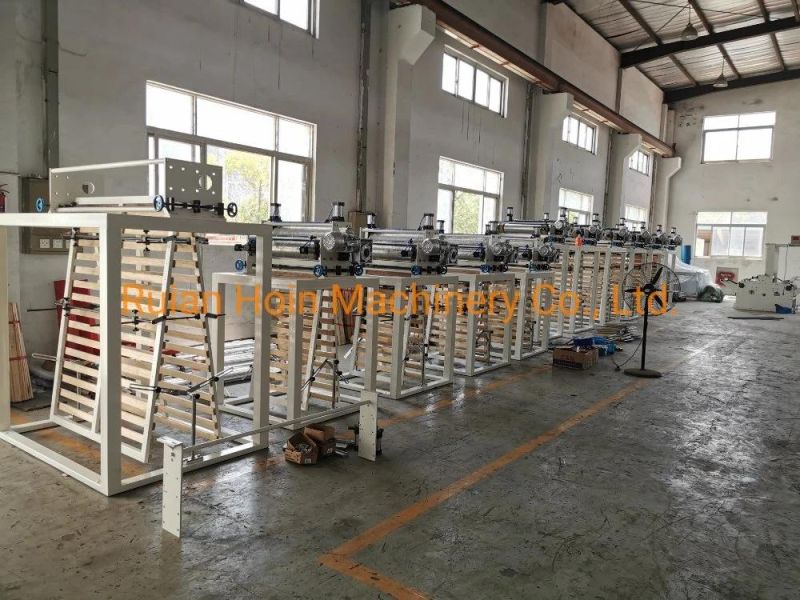

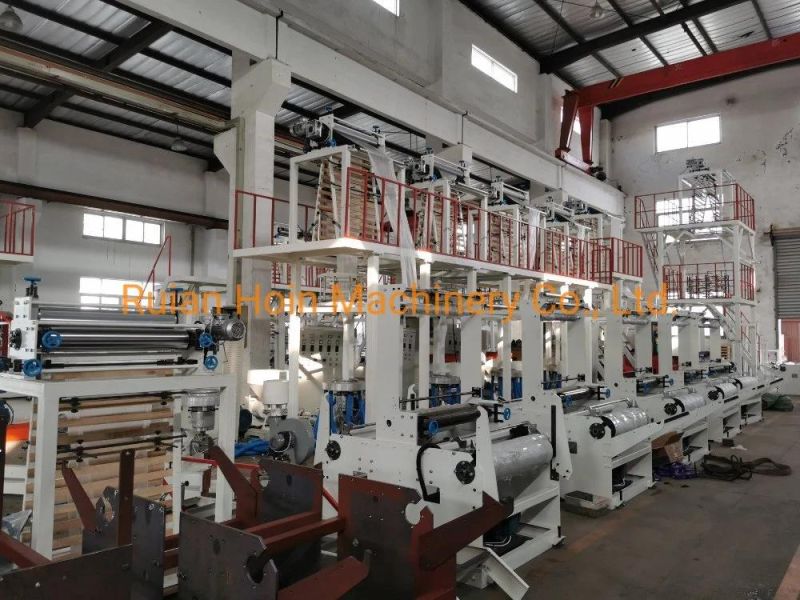

HDPE-LDPE Dual-Purpose Film Blowing Machine Set (SJ-45--100)HDPE-LDPE Dual-Purpose Film Blowing Machine Set (SJ-45--100)HDPE-LDPE Dual-Purpose Film Blowing Machine Set (SJ-45--100)HDPE-LDPE Dual-Purpose Film Blowing Machine Set (SJ-45--100)Workshop of HOIN
Agricultural Mulch Film Blowing MachineAgricultural Mulch Film Blowing MachineAgricultural Mulch Film Blowing MachineMore Products Optional:
Agricultural Mulch Film Blowing MachineAfter service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
