• Model NO.：FB-A-800
• Automation：Non-Automatic
• Computerized：Computerized
• Machine Weight：3600kgs
• Certification：CE, ISO9001:2008
• Suitable Material：LDPE,HDPE,LLDPE
• Output：50kg,H
• Die Size：80 and 160mm
• Transport Package：Wooden Package
• Specification：6000*2200*4400
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：8477309000
• Production Capacity：30 Sets,One Month

Basic Info.

Model NO. FB-A-800 Automation Non-Automatic Computerized Computerized Machine Weight 3600kgs Certification CE, ISO9001:2008 Suitable Material LDPE/HDPE/LLDPE Output 50kg/H Die Size 80 and 160mm Transport Package Wooden Package Specification 6000*2200*4400 Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477309000 Production Capacity 30 Sets/One Month

Product Description

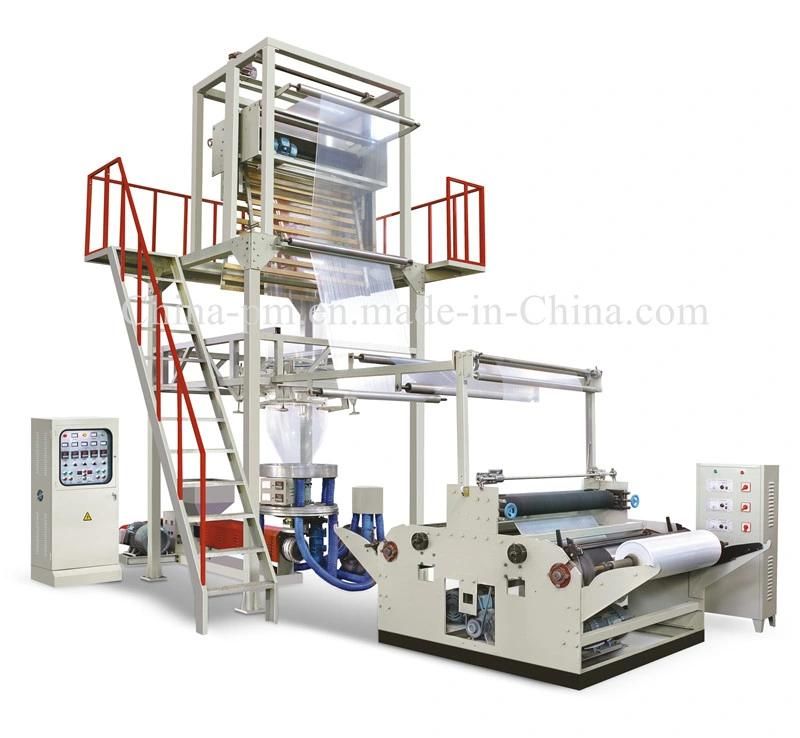

FB-A-800 PE Film Blowing Machine



A.Main Technical Variables:

Model	FB-A-800
Screw Diameter	55MM
Screw Ratio	L/D28:1
Screw Speed	10-100r/min
Power of Main Motor	15KW
Power of traction main motor	1.5kw
Main Output	50kg/h
Max.Folding Width of Film	200-800mm
Single-sided Thickness of Film	0.008-0.10mm
Overall Dimensions	6000x2200x4400mm

2. Machine Specification:
a.Features:
Suitable Material: HDPE/LDPE/LLDPE
Max.Folding Width of Film (mm): 800
Thickness of Film (mm): 0.008-0.10MM
Max. Output (Kg/Hr.): 50kg/h
b.Extruder:
Screw Dia. (mm): φ 50
Screw & Barrel L/D Ratio: 28: 1
Screw & Barrel material: 38 CRMOALA
Barrel Auto Thermo Control: 3 Points
Cooling Blower : 1.1kw
Gear box: water cooling reducer, hard tooth surface  use 147# type
Driving Motor: 15kw
Screen Changer: manual type
Screen Changer Heater Capacity (Kw): 1.5
c.Die Head:
Die Dia. (mm): 80mm and 160mm
Die Heater Capacity (Kw): 3
Die Auto Thermo Control: 1 Points
Air Ring: 1 Set per Die
Bubble Basket: Hexagon Type
Folding devices ( from the double sides ) ,
max.folding : The 10cm
d.Take-up Unit:
To be possible to moving the tower 1.5m
Pinch Roller- Embrorosing  Roller
Take-up Motor with Inverter Control: AC 1.5kw
e.Winding Unit:
Max. Width (mm): 800
Max. Wind-up roll dia. (mm): φ 800
Winding Motor: 10Kg/Nm with moment motor
Rewinding Speed: 5-50m/min

3. Spare Part List:

01	filter	1 M	08	electric -testing pen	1 pcs
02	magetic stone	1 pcs	09	hexageonic wrench	1 pcs
03	air pipe	1 pcs	10	glove	2 pairs
04	8-10 open and wrench	1 pcs	11	Steady Bar	1 pcs
05	12-14 open and wrench	1 pcs	12	Mould Pipe	1 pcs
06	14-17 open and wrench	1 pcs	13	electric-thermal couple (E)	2 pcs
07	17-19open and wrench	1 pcs	14	screw heater(stainless steel)	1 pcs

4. Machine Pictures for Reference:

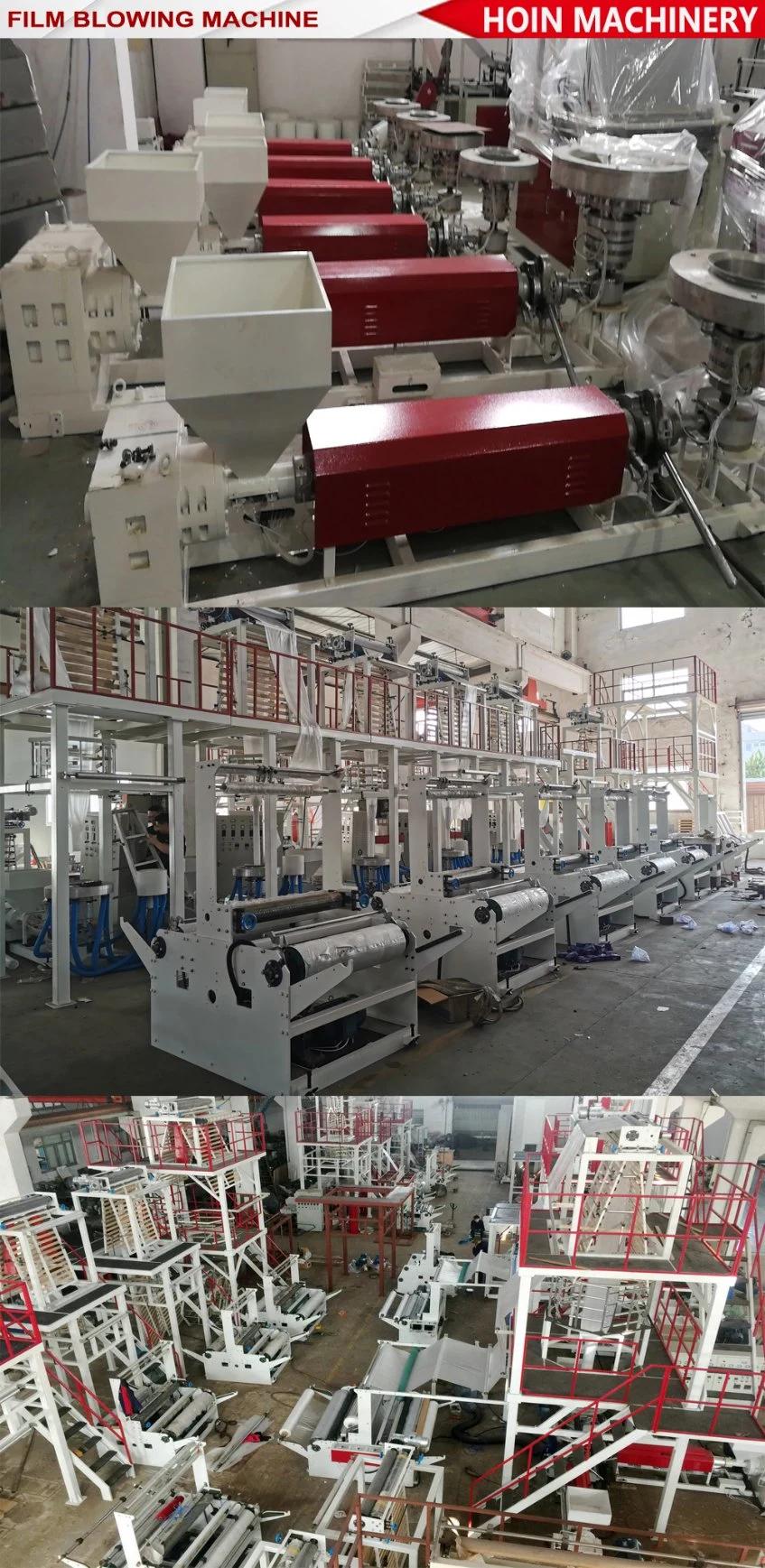

5. Workshop of HOIN

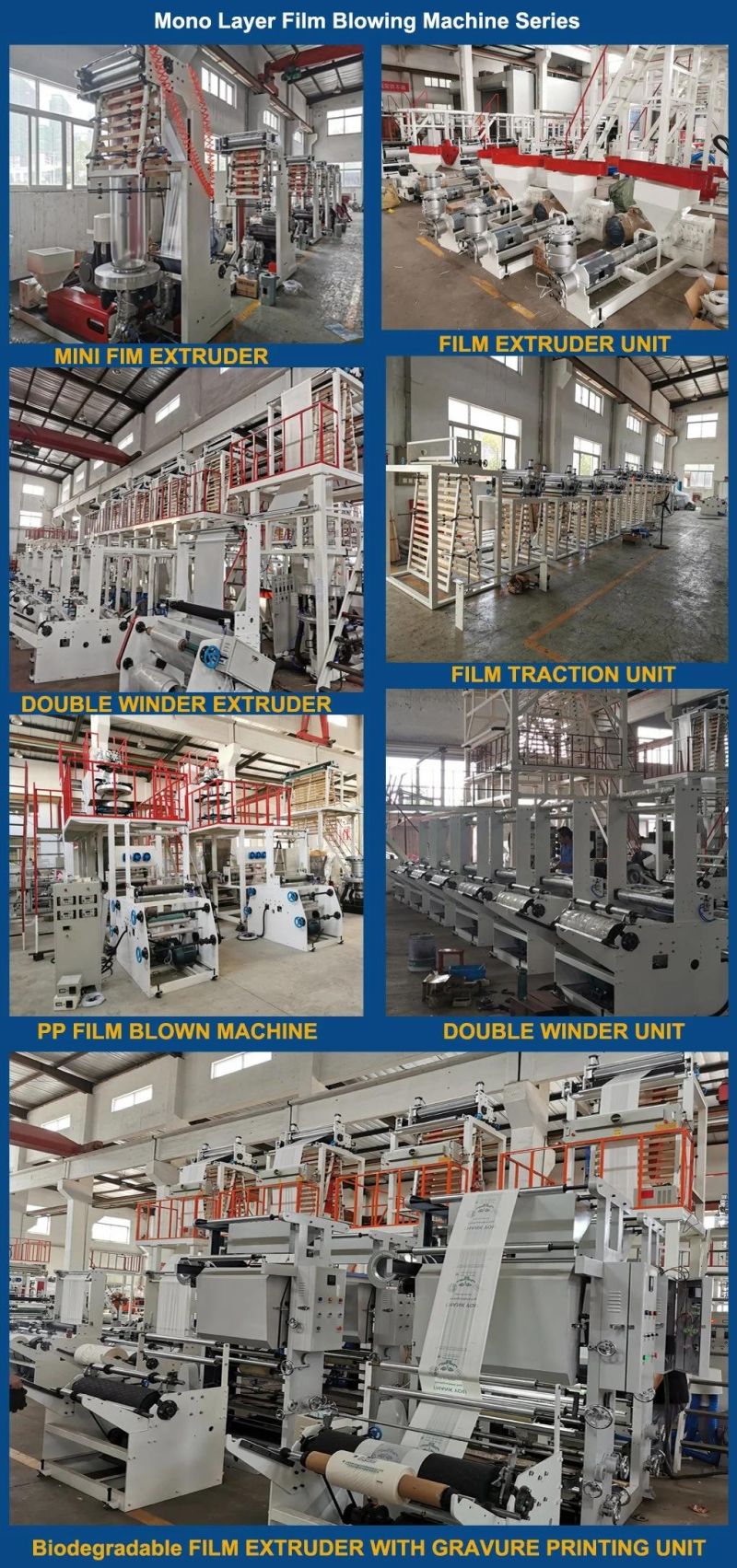

6. More Products Optional:
7.After Service of HOIN:
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.

Any query please feel freely to contact with us!
