Single Screw Four Die Head Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：400mm
  • Screw Diameter：65mm
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：FM-500*4
  • Machine Weight：8T
  • Certification：CE, ISO9001:2008
  • Size：L*W*H: 20m * 6m * 4.5m
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Warp Film for Container Shipment
  • Specification：single screw four die head
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

LDPE / LLDPE / HDPE / MLLDPE / EVA / EAA etc.film width(mm)40--30050--40060--50080--600100--700thickness0.01--0.16mmL/D ratio30:1screw diameterΦ45mmΦ50mmΦ55mmΦ65mmΦ75mmdie diameterΦ80mm*4Φ120mm*4Φ150mm*4Φ160mm*4Φ180mm*4die structureSpiral mandrel die chrome plated surface 40Crmain power11kw15kw18.5kw22kw30kwmax output40kg/h50kg/h60kg/h75kg/h110kg/hTorque motor winderoptional equipmentauto-loader device, film surface treater, air compressor, fast change net, auto rewinder, rotary die head, double wind air ring

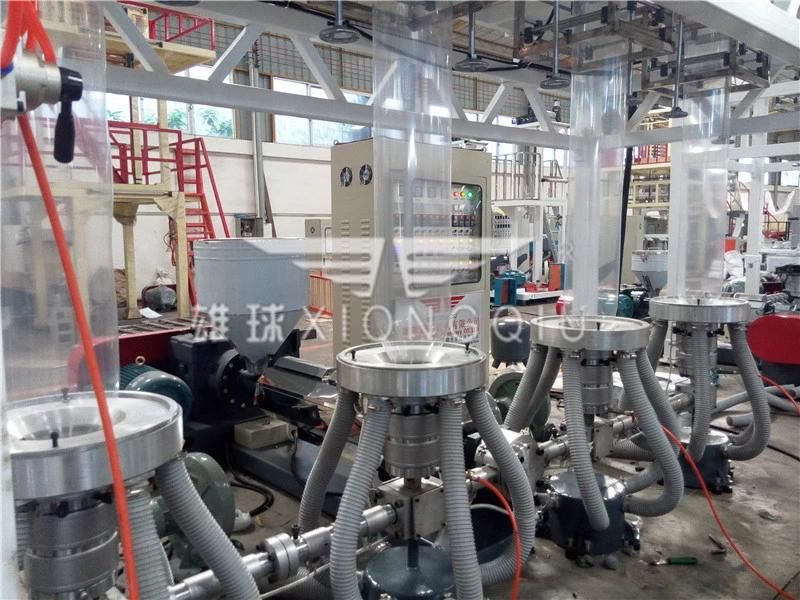

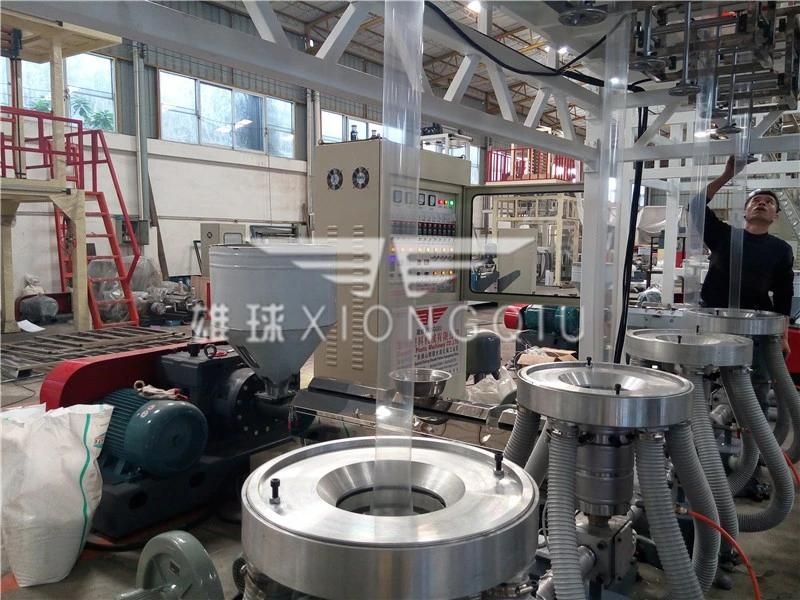

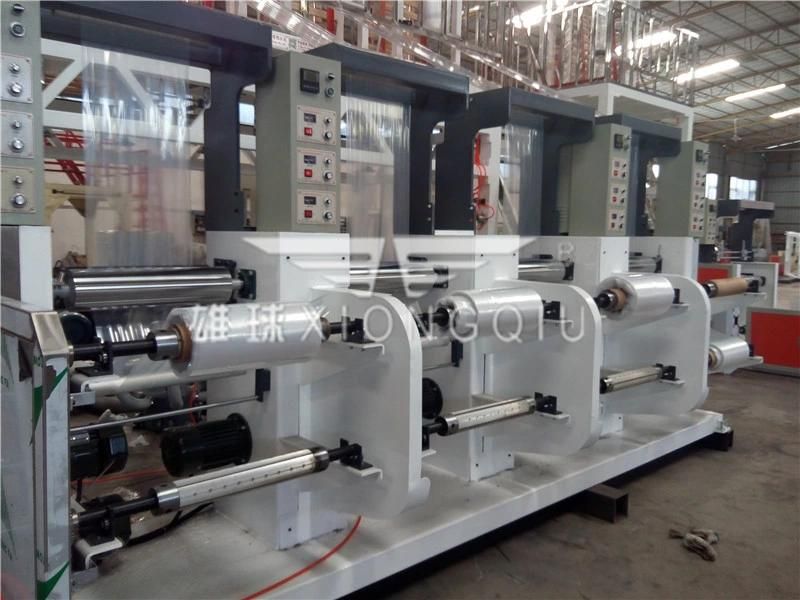

pictures for reference:
Single Screw Four Die Head Film Blowing Machine
Single Screw Four Die Head Film Blowing Machine
Single Screw Four Die Head Film Blowing Machine
