Pert-Al-Pert Pipe Production Line/Pipe Making Machine/Pipe Extruder
Weifang Kaide Plastics Machinery Co., Ltd.- Product Type：Aluminum Composite Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, UL
- Customized：Customized
Base Info
- Model NO.：KAIDEMAC-LS
- Condition：New
- Low Voltage Electrical Component：Schneider
- Frequency Inverter：ABB
- Producing Scope：16-63mm
- Machine Speed：8-15m,Min
- Welding Type：Untrasonic Overlap Welded
- Extruders：4 Extruders
- Pipe Structure：PPR-Glue-Al-Glue-PPR
- Min.Al Thickness：0.15-0.18mm
- Machine Control：Iemens PLC Programmable Control System
- Transport Package：Soft Film Packaged
- Specification：33m*4.5m*3.5m
- Trademark：KAIDEMAC
- Origin：China
- HS Code：8477800000
- Production Capacity：150sets,Year
Description

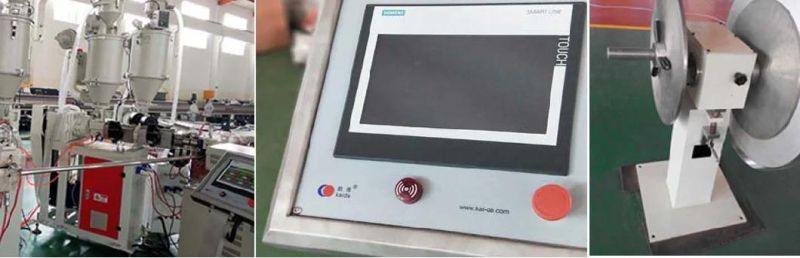

Machine features of the PERT-A-PERT pipe making machine:
Aluminum strip uncoiling&accumulator device:
1.Humanized design of 360° free of rotation Aluminum strip unwinding machine ,which is easy and for workers changing Aluminum strips.
2.High-quality aluminum strip welding machine and Al storage machine to ensure the supply of aluminum strip adequate and clean.
Inner&Outer PERT&Glue layer extruder
1.The inner and outer pipes adopt a step-by-step co-extrusion process, which improves the bonding strength between the pipes2.avoids heat accumulation between the pipes, and ensures smoother surfaces of the inner and outer pipes.
3.Special designed screw and barrel according to PERT and Adhestive raw material's processing specification.
4.All extruding tools are processed by imported CNC machinery
PERT-AL-PERT pipe haul-off machine
1.Tension belt structure, and multiple sets of rollers are suspended independently.2.Each group of the rollers clamping force can be adjusted freely.
3.The traction belt with grooved design, which can prevents the PEX-AL-PEX tube from rotating during traction.
4.Three-dimensional adjustable guide roller, which is easy to adjust when producing different pipe size.
5.Equipped with imported high-precision length recording device, which communicates with the extruder and coiler modules with accurate data and no delay.
6.Synchronous control with the extruder, rapid response when adjusting the screw speed; Schneider (Schneider) electrical components, reliable and stable.
PLC control system
1.Synchronous control of Extruder and the downstream equipment, such like gravimeter system, haul-off machine, etc.2.Intelligent and easy to learn for operator. Kinds of information such as temperature, electricity, melting pressure, can be showed on screen.
3.Alarm reminder. Programmable amd settable alarming and protection function at all levels.
4.Remote control system for machine fault analysis and problem solving.
The finished PERT-AL-PERT pipes
1.An inner (0.18mm) aluminum foil layer, lined with PE-Xb inner and outer layers, bonded to the aluminum foil layer through thermal reaction. The PE-Xb and aluminum layer between the melted adhesive layer bond different materials together firmly.2.The pipe is resistant to high pressure, has no oxygen penetration, no growth of microorganisms, and is easy to bend but never bounces back.
3.The diameter and wall thickness of the pipe and the thickness of the aluminum layer can be customized according to the customer's local requirements.
