PPR-Al-PPR Pipe Making Machine/Pipe Production Line/Pipe Extruder

Weifang Kaide Plastics Machinery Co., Ltd.
  • Product Type：Aluminum Composite Pipe
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, UL
  • Customized：Customized

Base Info

  • Model NO.：KAIDEMAC-LS
  • Condition：New
  • Low Voltage Electrical Component：Schneider
  • Frequency Inverter：ABB
  • Producing Scope：16-63mm
  • Machine Speed：8-15m,Min
  • Welding Type：Untrasonic Overlap Welded
  • Extruders：4 Extruders
  • Pipe Structure：PPR-Glue-Al-Glue-PPR
  • Min.Al Thickness：0.15-0.18mm
  • Machine Control：Iemens PLC Programmable Control System
  • Transport Package：Soft Film Packaged
  • Specification：33m*4.5m*3.5m
  • Trademark：KAIDEMAC
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：150sets,Year

Description

Pipe Thickness(mm)Inner PPR layer thickness(mm)Outer PPR layer thickness(mm)Aluminum Tape thickness(mm) MinMax   203.003.40.901.700.25253.253.651.001.800.30324.004.51.102.100.35405.005.61.502.600.40505.506.101.803.000.50637.007.802.403.800.60

Machine features:

PPR-Al-PPR Pipe Making Machine/Pipe Production Line/Pipe Extruder

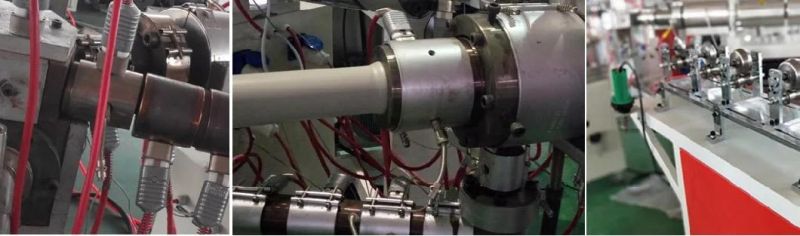

Inner 3-layer co-extrusion die head

1)Inner 3 layer co-extrusion die head is for extruding inner PPR layer+inner adhestive layer+ Aluminum tube.

2)Mature co-extrusion and altrasonic welding technique integrated with a completely automatic control system.

3)Using Stable imported Ultrasonic Welder, which ensure the PE-AL-PE pipes can be produced in stable welding condition.

4)One-step realizes the co-extrusion of inner plastic layer and the aluminum layer. The Min aluminum strip thickness is 0.15-0.3mm, the production speed is 15m/min.

Outer 2 layers co-extrusion die head


1)The inner and outer pipes adopt a step-by-step co-extrusion process, which improves the bonding strength between the pipes,

2)avoids heat accumulation between the pipes, and ensures smoother surfaces of the inner and outer pipes.



PPR-AL-PPR pipe cutting device:
1)Flying knife cutting machine is used when pipe diameter≤32mm.
2)Siemens servo motor driving, response rapid , it can really realize the fast cutting of small diameter pipes.
3)Different specifications and sizes, equipped with special guide sleeves
4))When customers produce 4m or 6m long straight pipes, they can achieve (cutting) accuracy with an error of ≤1mm. The signal transmission is fast, the response is sensitive, and it can really realize the fast cutting of small diameter pipes,

The pexb-al-pexb pipe production line includes:

1Aluminum Foil Uncoiler device2Aluminum Foil Accumulator device3Ultrasonic Aluminum Foil connecting welder4Aluminum pipe forming device5Ultrasonic Welder for Aluminum pipe forming6Inner PPR pipe extruder7Outer PPR pipe extruder8Inner adhesive layer extruder9Outer adhesive layer extruder10Inner 3 layer co-extrusion die head&moulds11Outer layer co-extrusion die head&moulds12Water cooling flume13Pipe haul-off machine14Pipe cutter15Pipe winding machine16Siemens PLC control System


PPR-Al-PPR Pipe Making Machine/Pipe Production Line/Pipe ExtruderPPR-Al-PPR Pipe Making Machine/Pipe Production Line/Pipe Extruder
