New Advanced Technology PP/PE/PVC/ABS Plastic Extrusion Machine

Qingdao Create Trust Industry Co., Ltd.
  • Type:Sheet Extruder
  • Plastic Processed:PVC
  • Product Type:Extrusion Molding Machine
  • Feeding Mode:One Feed
  • Assembly Structure:Integral Type Extruder
  • Screw:Single-Screw

Base Info

  • Model NO.:CX400A
  • Engagement System:Full Intermeshing
  • Screw Channel Structure:Deep Screw
  • Exhaust:Don′t Exhaust
  • Automation:Automatic
  • Computerized:Computerized
  • Products:Plastic Film
  • Control System:Center Control by PLC System
  • Capacity:From 500kg,H to 1500kg,H
  • Testing of Machine:We Will Use Your Material to Test Working
  • Service:We Provide Both Machine and Formula
  • Transport Package:Woodend Box
  • Specification:CE,ISO9001
  • Trademark:CX
  • Origin:China
  • HS Code:847780000
  • Production Capacity:100 Sets,Month

Description

Basic Info.

Model NO. CX400A Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Products Plastic Film Control System Center Control by PLC System Capacity From 500kg/H to 1500kg/H Testing of Machine We Will Use Your Material to Test Working Service We Provide Both Machine and Formula Transport Package Woodend Box Specification CE/ISO9001 Trademark CX Origin China HS Code 847780000 Production Capacity 100 Sets/Month

Product Description

Name:  Plastic extruder,plastic extruding machine,plastic extrusion machine,PVC extruder,PE extruder,PP extruder

Model : CX150

Usage: this line machine is maily designed for plastic sheet/ plastic film production. such like PP,PE,LLDPE/LDPE/HDPE film ect.

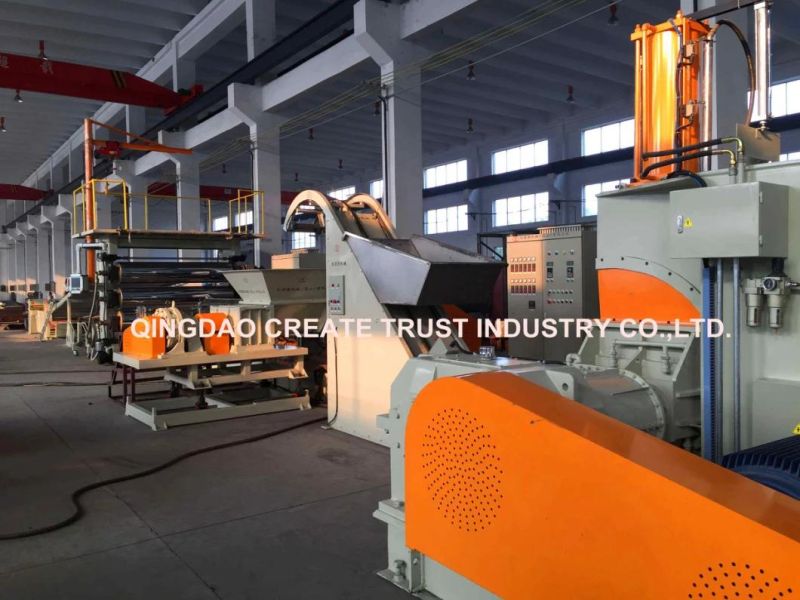

Consist of machinesd: rubber kneader (banbury mixer),force feeding machine,extruder,three roll calender,winding machine ect.
New Advanced Technology PP/PE/PVC/ABS Plastic Extrusion Machine



Details instruction below :

1- Plastic kneader (banbury mixer) :  Specially designed for plastic mixing, with heating system. rotor is stellite welded,after polishing and quenching. this will make rotor and chamber high wear-resistant.

The reducer are hardened gear teeth,no noise,longlife us .

2- Force feeding device :

 INVT frequency converter.
Double screw for material feeding,
Contaction with single screw is Harvard structure

3- The  extruder is the highest technology design now in this area :

Screw is made by nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Cooling by water .

Barrel material is nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Outer with stainless steel cover .  Heating of barrel is made by Cast aluminum heater.

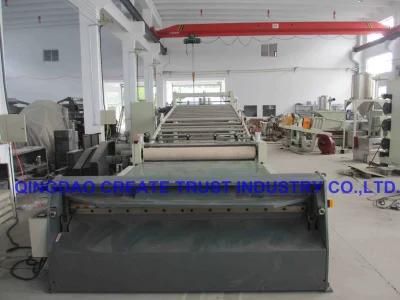

4- Three roll calender and auxiliary machines.



Roll diameter φ400mm
Roll length : 1500mm
Quanity of roll : 3 pcs
Water in/out diameter: 11/4"
Circular degree: 0.005mm
Coaxiality : φ0.012mm
Roughness : Ra0.025μm
Quenching hardness : HRC60,quenching thickness : 5mm
Chrome plated : T=0.1
Thickness of roller : 30mm
Linear speed of roll  : 0-15 meter/minute

Bearing group : NSK,Japan. High temperature resistant double row cylindrical roller bearing self-aligning.

Roll adjustment : manual operation, Up/Down of roll range : 0-70mm, gap range : 1-5 mm.  Power of driving motor is 0.37KW.

Each roll with one reducer and one AC frequency motor. Power is 2.2 KW,total three sets.


The Interlock Control System: we use intelligent instrument,PID parameter setting and double channel. The head of extruder with testing device for temperature and pressure. All the data will be shown and protection the temperature and pressure.

5- The electric parts we used is DELIXI brand,contactor is from SIMENS.

New Advanced Technology PP/PE/PVC/ABS Plastic Extrusion Machine

Service of us :

The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.

All we do is for longterm cooperation , " CREATE TURST" !
