(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine

Rui'an Hengfeng Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Suitable Material：PP, PS, Pet, PVC, PLC etc

Base Info

  • Model NO.：(HFTF-70T)
  • Max. Molding Area：680*320 mm
  • Max. Forming Depth：130 mm
  • Max. Sheet Width：730 mm
  • Sheet Thickness Range：0.3-2.0 mm
  • Max. Clamping Force：250 Kn
  • Upper/Lower Heating Power：70,60 Kw
  • Air Pressure：7-8.5bar
  • Max. Speed：42 Cycles,Min
  • Transport Package：Sea-Worthy Packing
  • Specification：CE Certificate
  • Trademark：HENGFENG
  • Origin：China
  • HS Code：84775900
  • Production Capacity：42cycles,Min

Description

1- Max. Forming  Area680× 320mm2- Max. Down Forming Machine150mm/180mm3- Max. Up Forming Height15mm4- Sheet Thickness0.35-2.5mm5- Max. Roller  Diameter Φ 1200mm6- Air  Pressure 0.7-0.85mpa7- Water  Consumption 50L/min8- Air  Consumption 3000L/min9- Max.Speed 35Cycles/min10- Power (Three  Phase  Four  Wire)3× 380V+NP+PE. 50HZ11- Heating  Power130kw12- Main  Motor  Power11kw13- Feeding  Motor  Power 4.4kw14- Scrap  Rewinding  Motor  Power 0.55kw15- Machine  Weight 10000kgs16- Dimension 11000× 3650× 3500mm

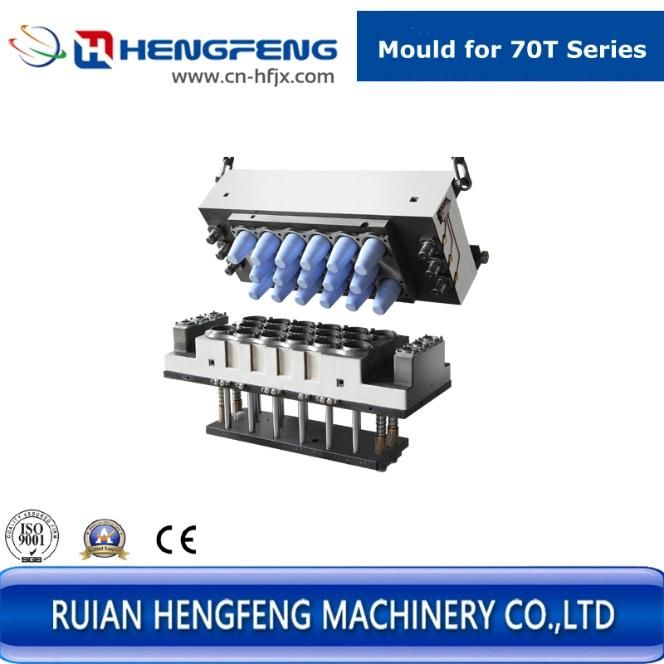

Moulds:(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine

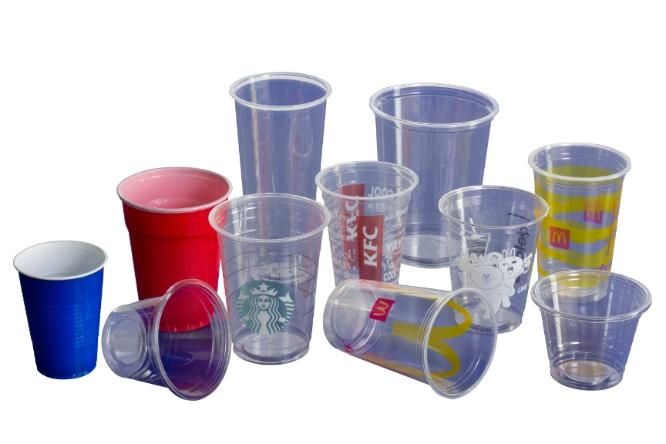

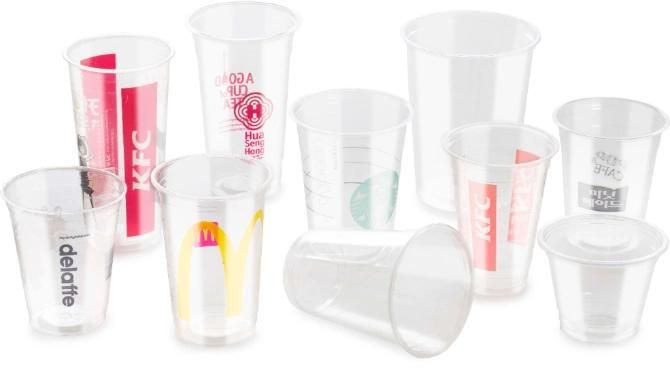

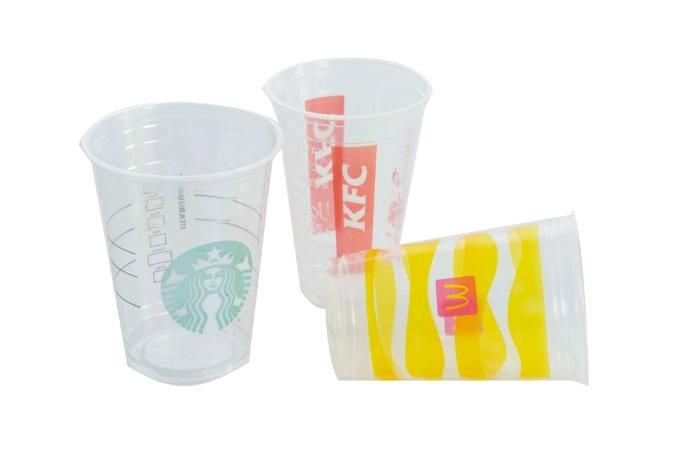

Sample:
(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine
(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine

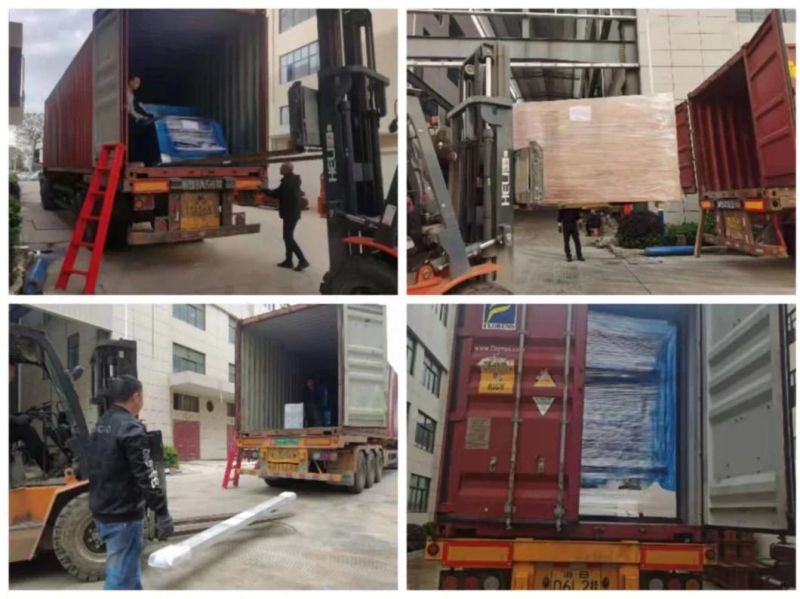

Shipping packaging:
(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine

Company History:

Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d

Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic

Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries

And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,

Chile, Bolivia, Saudi Arabia, Peru, etc.

(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine
Factory Address:
NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine

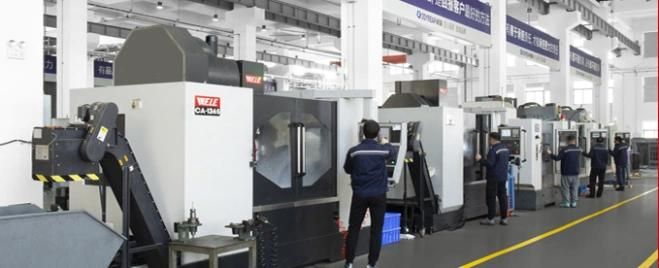

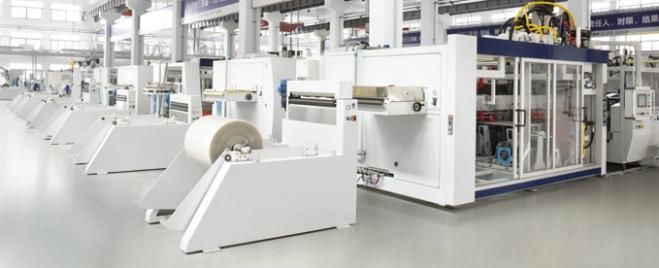

Operation:
(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine

Contact person:
(HFTF-70T) Plastic Yogurt/ Ice Cream Cup Thermoforming Machine

FAQ:
1. Q: Are you a factory or trading company?
   A: We are a factory and giving you the quickest reply in 24 hours.

2. Q: What's your company mainly in?
   A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for   over 10 years.Other machines have included machines in production line,  such .as thermoforming machine and pp and ps extruder .
  (we can produce total production line.)

3. Q: How's your strength of your company?
   A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.

4.Q: If your company has passed some certificates?
  A: Yes, we have passed CE, ISO.
