Wind-Cooling Hot-Cutting Plastic Recycling Compounding Machine
Ruian Hoin Machinery Co., Ltd.- After-sales Service:Technical Support Online
- Warranty:One Year
- Material Processed:Film
- Plastic Type:PE
- Screw:Single-Screw
- Automation:Automation
Base Info
- Model NO.:FLZ-90, 100, 110
- Computerized:Non-Computerized
- Certification:ISO9001:2008, CE
- PE Recycle:PE Rebirth
- Sinle Screw:100kg
- Transport Package:Stretch Film or Wooden Case
- Specification:CE, ISO9001 certificate
- Trademark:HOIN
- Origin:Ruian, Zhejiang, China
- HS Code:8477201000
- Production Capacity:30 Set,Month
Description
Basic Info.
Model NO. FLZ-90, 100, 110 Computerized Non-Computerized Certification ISO9001:2008, CE PE Recycle PE Rebirth Sinle Screw 100kg Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477201000 Production Capacity 30 Set/MonthProduct Description
Characteristics:The raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machinery equipped with a forced feeder, fast mesh changer and automatic rhermocontroller.
Main Technology:
Model type | SJ-90 | SJ-100 | SJ-110 |
Diameter of Screw Stem | φ 90 | φ 100 | φ 110 |
Major Diameter Ratio of Screw Stem | L/D 20 : 1 -22 : 1 | L/D 20: 1 -22: 1 | L/D 20: 1 -22: 1 |
Rational Speed of Screw Stem | 10-100r/min | 10-100r/min | 10-100r/min |
Main Motor Power | 22kw | 30kw | 37kw |
Output | 68kg /h | 95kg /h | 120kg /h |
Weight of overall(kg) | 2600kg | 2800kg | 3000kg |
Cover dimensions (l×w×h) (mm) | 4000×1500×1800 | 4200×1500×1800 | 4400×1500×1800 |

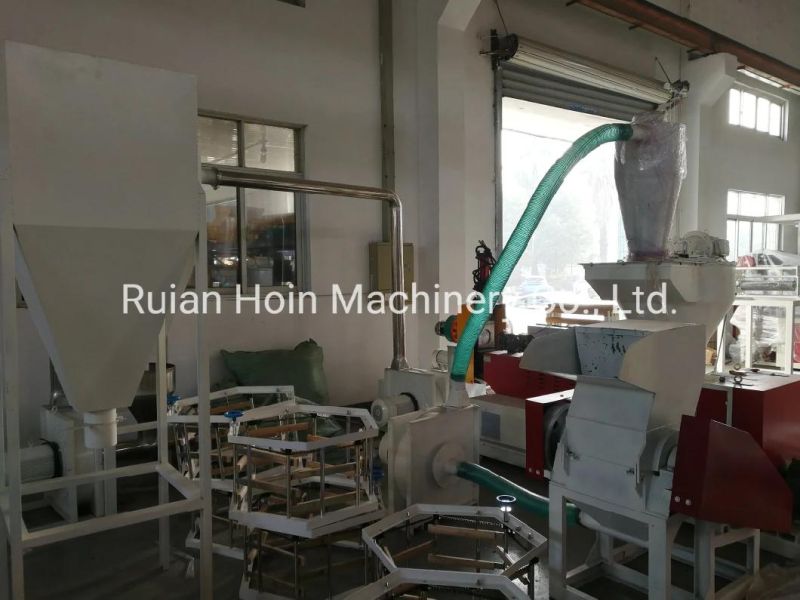

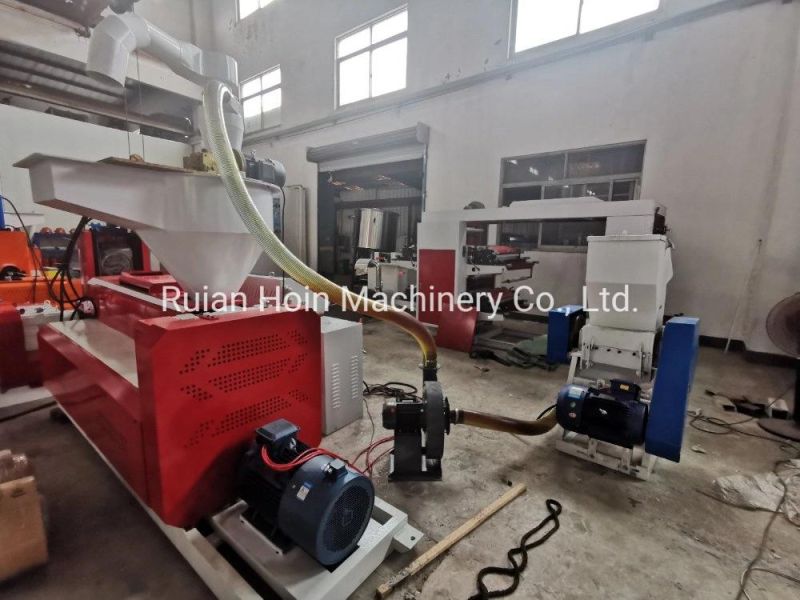

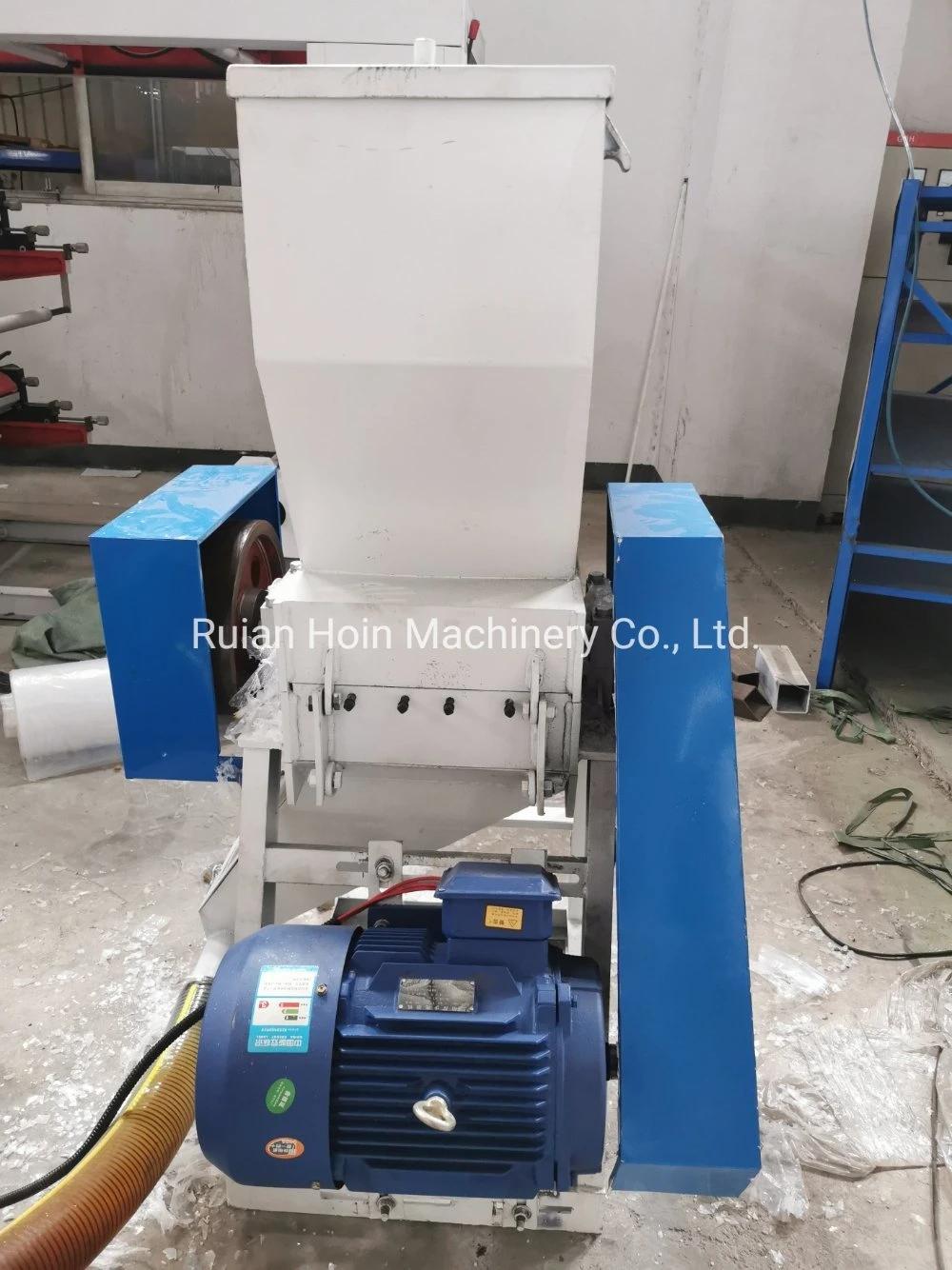

Machine Pictures for Reference:

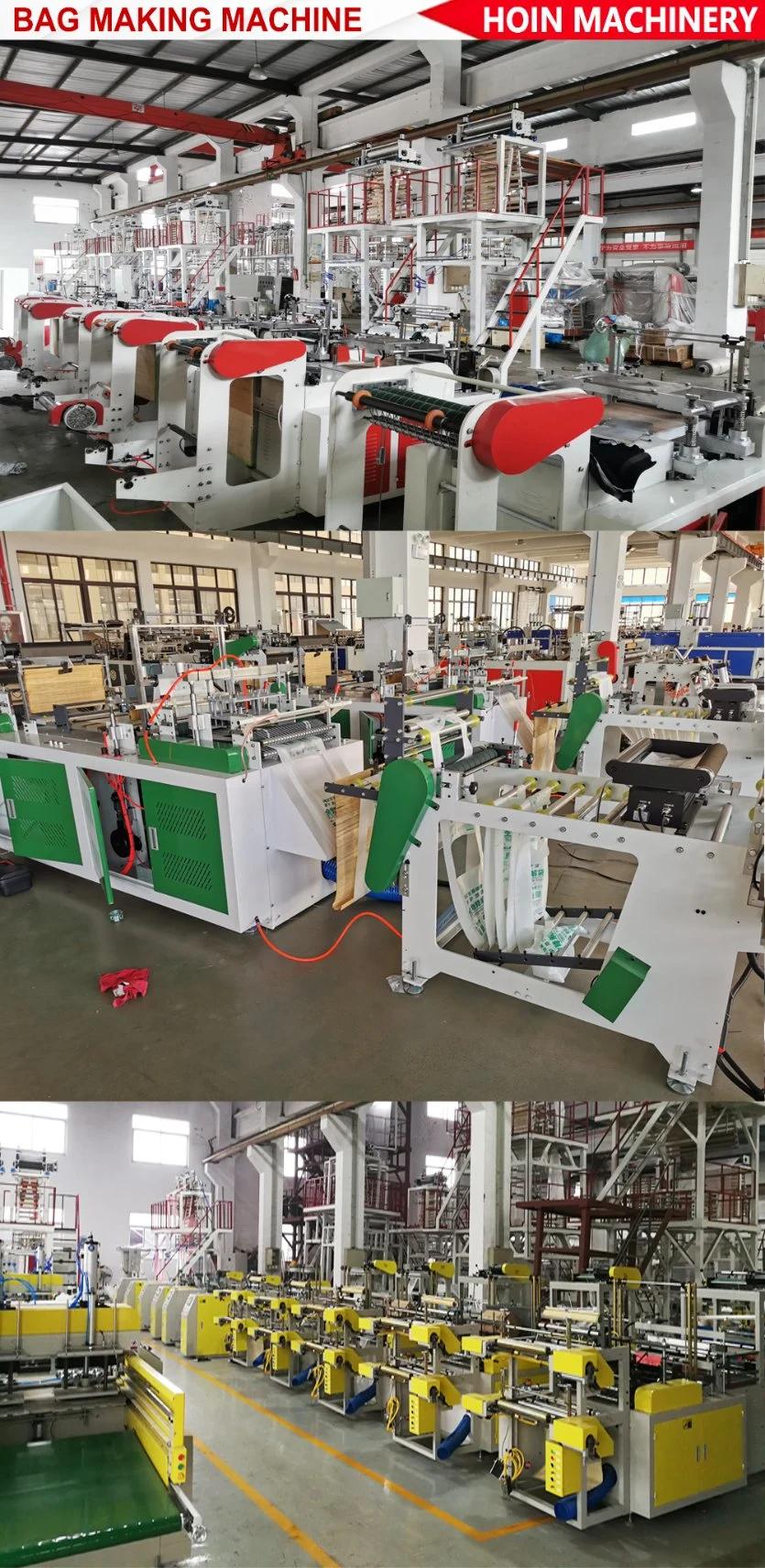

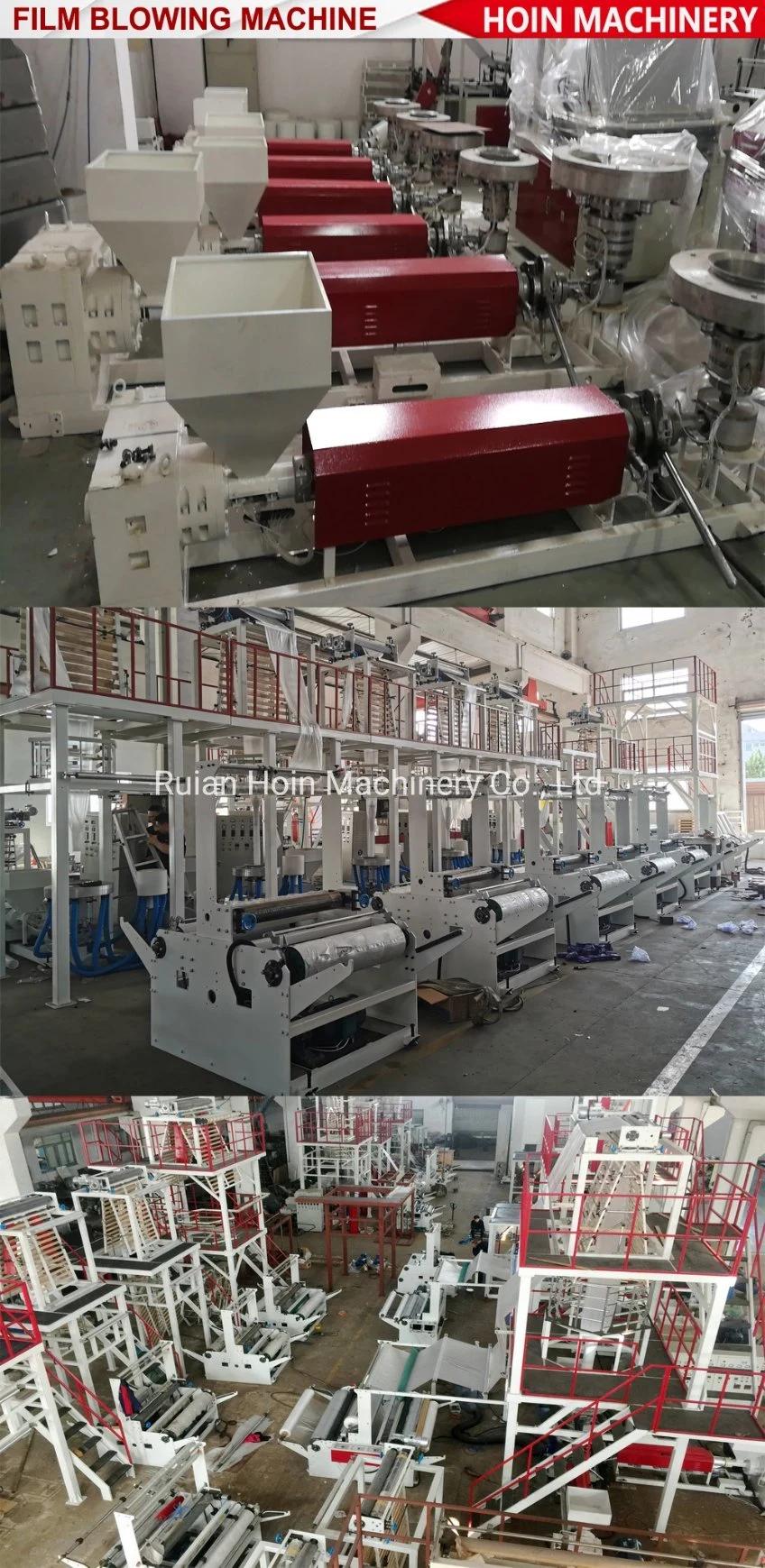

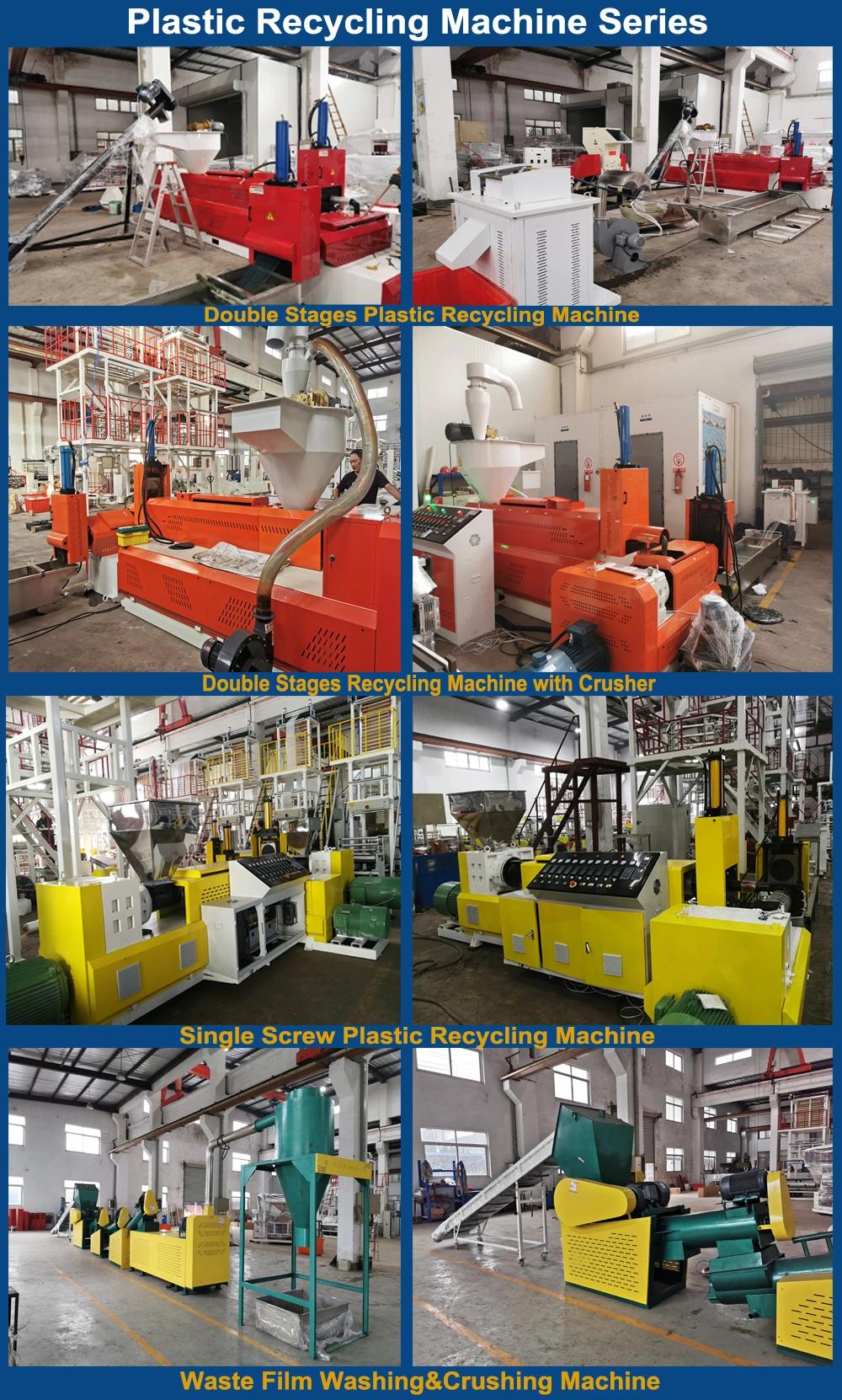

Workshop of HOINMore Products Optional
After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
