• Model NO.：SGK200
• Condition：New
• Socketing Range：Od50-200mm
• Socketing Type：Straight Type and R Type
• PLC Control：Siemens
• Touch-Screen：Siemens
• Suitable Pipe Length：3m-6m
• Color：Customized
• Guarantee Period：One Year
• Delivery：by Shipment
• Electrical Parts：Siemens, ABB, Schneider
• Pack：by Film and Wooden Box
• Transport Package：Film and Wooden Box
• Specification：SKG200
• Trademark：Yusheng
• Origin：Zhangjiagang
• HS Code：84778000
• Production Capacity：30sets Per Month

Basic Info.

Model NO. SGK200 Condition New Socketing Range Od50-200mm Socketing Type Straight Type and R Type PLC Control Siemens Touch-Screen Siemens Suitable Pipe Length 3m-6m Color Customized Guarantee Period One Year Delivery by Shipment Electrical Parts Siemens, ABB, Schneider Pack by Film and Wooden Box Transport Package Film and Wooden Box Specification SKG200 Trademark Yusheng Origin Zhangjiagang HS Code 84778000 Production Capacity 30sets Per Month

Product Description

SGK200 Conduit socketing machine:
Main technical parameters
Pipe expand range
(out diameter)Φ 110-200mm
Belling type U type, R type and square type
Oil labelNo. 46/hydraulic oil
Quantity of heater 1
Heating power9.5kw
Highest temperature in heater280
Air pressure0.4~0.6Mpa
Cooling water pressure0.2~0.3Mpa
Total power/Capacity16kw
Pipe length3-6m
Center height1000mm± 50mm
Machine set weight2.4T
Dimension of machine7300X1450X1850mm

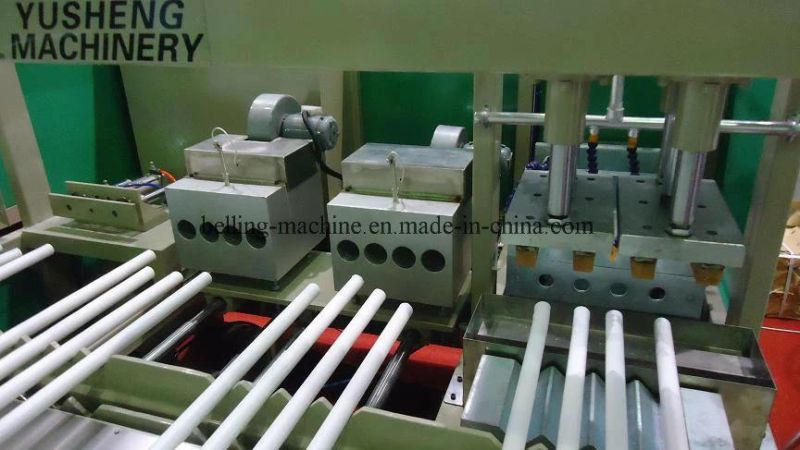

 Plastic pipe auto Belling Machine
1. Double altogether a heating, high production efficiency.
2. The motor control bracket height adjustment, easy to operation.

SGK Series Full Automatic Plastic Pipe Belling Machine is collocated with material-receiving pulling device as well as related process interfaces that are matched with the main machine, it not only can work together with the main machine, it can work solely at the same time; Horizontally moves pipes, stable and accurate actions, and not easy to hurt pipes; This machine adopts infrared ray heating way and it is a double-heating furnace, and each heating furnace is collocated with central heating furnace core; Adopts expansion tube head shaping way, with accurate dimension of nozzle; It has conversion switches of expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type) in control panel, so it is very convenient to choose the way of tube expansion, with strong craft adaptability; Main electric control components adopt imported ones, with stable and reliable system performance

Model	Scope(mm)	Heating  Power(kw)	Total  Power(kw)	Central  Height(mm)	Belling-type
SGK630	315-630	25.4	36.32	1100	straight  type  and  R  type
SGK400	160-400	15.5	22	1100	straight  type  and  R  type
SGK250	50-250	7.2	12.5	1000	straight  type  and  R  type
SGK63	20-63	4	5.5	1000	straight  type  and  R  type
SGK50	2-20-50	6	6.5	1000	straight  type
