• HS Code：84771090

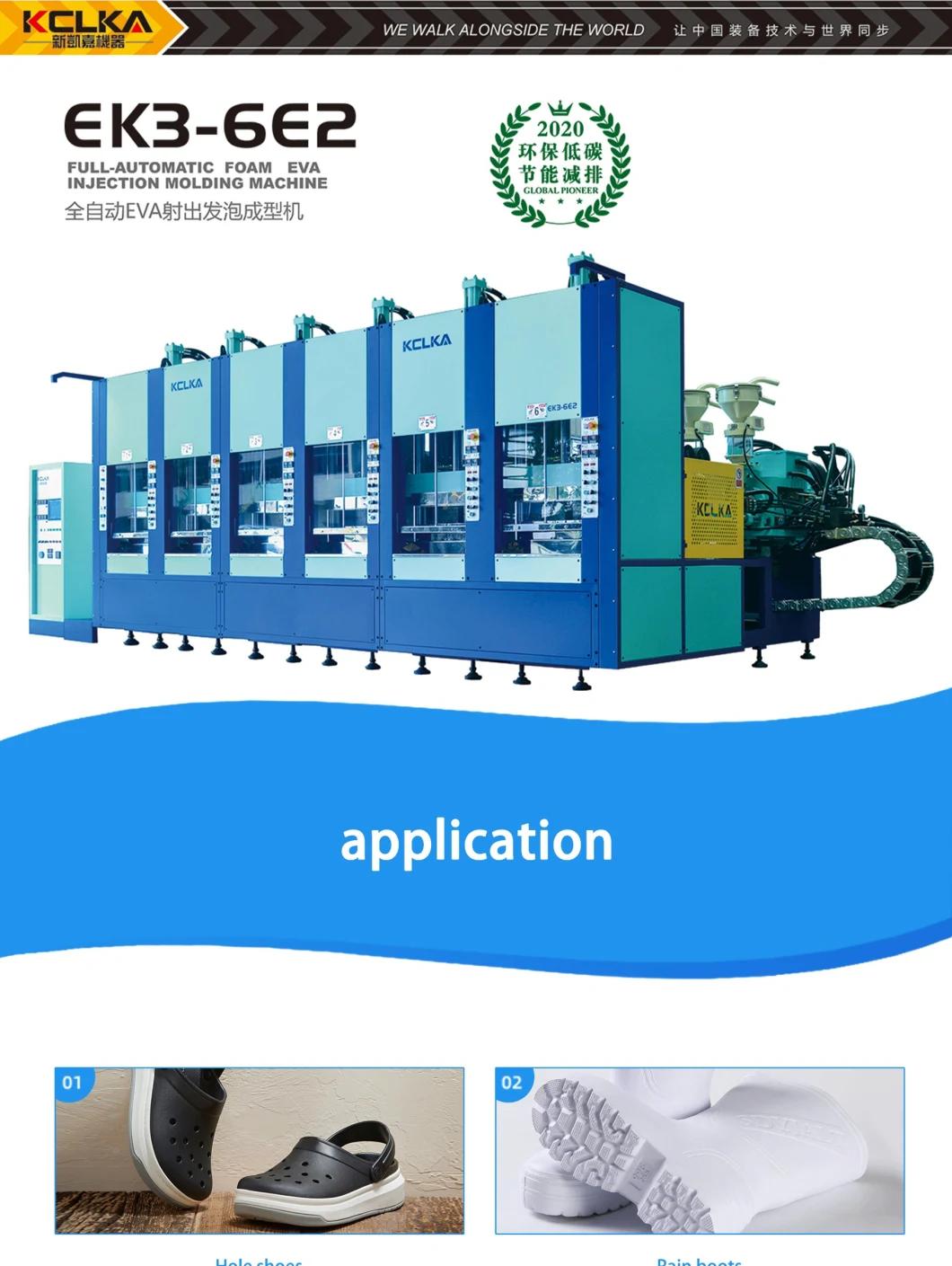

• Model NO.：EK3-6E2
• Production Capacity：20 Sets, Month

Basic Info.

Model NO. EK3-6E2 HS Code 84771090 Production Capacity 20 Sets/ Month

Product Description

Work Station	station	6
Clamping Force	ton	180
Mold Plate Size	mm	(290*550)*2
Mold Height	mm	100-220
Mold-opening Stroke	mm	350
Injection System
Injector		2
Diameter of Screw	mm	Φ65
Injection Cap(Max)	cm³	995
Injection Pressure	kg/cm²	0-130
Injection  Speed	cm/sec	0-10
Rotating Speed of Screw	r.p.m	0-190
Temperature Control	section	4
Electricity Consumption
Heater Barrel	kw	9.8*2
Heating Plate	kw	76.8
Hydraulic System	kw	51.9
Vacuum Pump	hp	1.5
Cooling Fan of Barrel	hp	1
Total Electricity	kw	148.3
Oil Tank Size	L	1000
Machine Weight	kg	26000
Machine Dimension	mm	8000*4500*3000

Detailed Description :


Its daily productivity is 2*18*8*24=6912 pairs by theory calculation.for 1 pair in 1 mould,For 2pairs in 1 mould is 6912*2=13824 pairs per 24hours

Note:

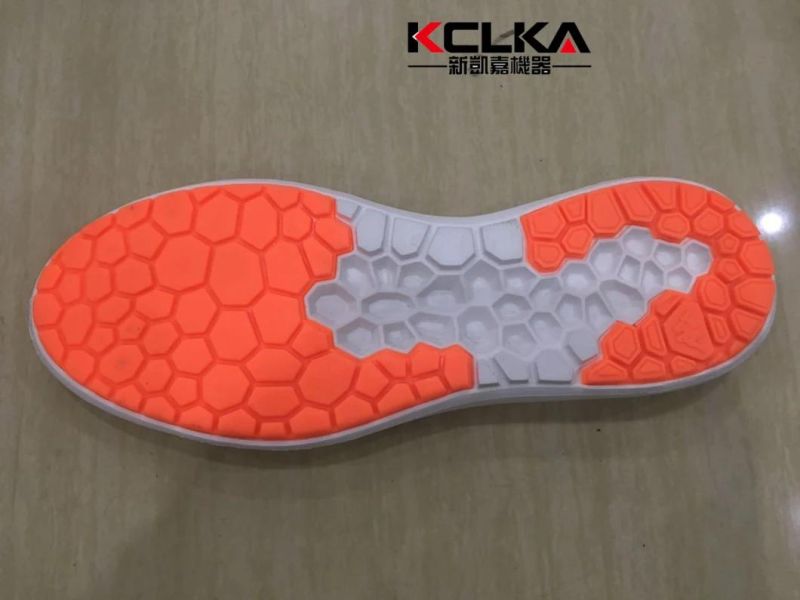

1.Its product range includes EVA mid-soles,rainboots,slippers,sandals, clogs,sport protectors and various kinds of shoes and shoe accessories and depends on the EVA shoe mould.

2.The clamping force can be increased from 150 to 210 tons, according to your requirement.

3.The foam EVA injection molding machine is fully hydraulic and automatic operation except taking out product.

4.It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production.

Character:
1.Low operation height,Operation height in accord with human engineering

2.Extra height opening stroke
Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and

3.available for 2plates mould,Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM

4.Rapid mould opening ,Act by toggle mechanism which opens the mould rapidly

5.Speedy injector movement
Driven by linear-track, allowing speedy moving and precise positioning,Energy saving design

6.No need water circulation for mould station

7.Space saving design,Put oil tank together with injection base, which makes the structure compact and saves more space.




Term:

All quotations are without value-added tax.
Delivery date:Within 60 days After receiving the 30% earnest money
Payment term: Advance payment at order 30%, 70% before shipment
Delivery State: Machines were taken apart and packed in suitable package that fits container shipping

For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Also  Our technician will manage all the machine things for you and at the same time   train  your  workers on  how  to use  and maintain the machine.
Guarantee Time: One-year warranty and lifelong service.  During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.

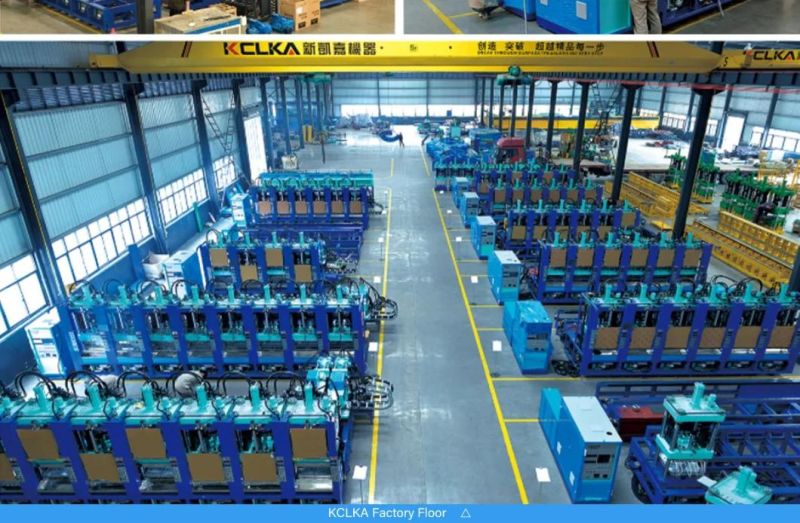

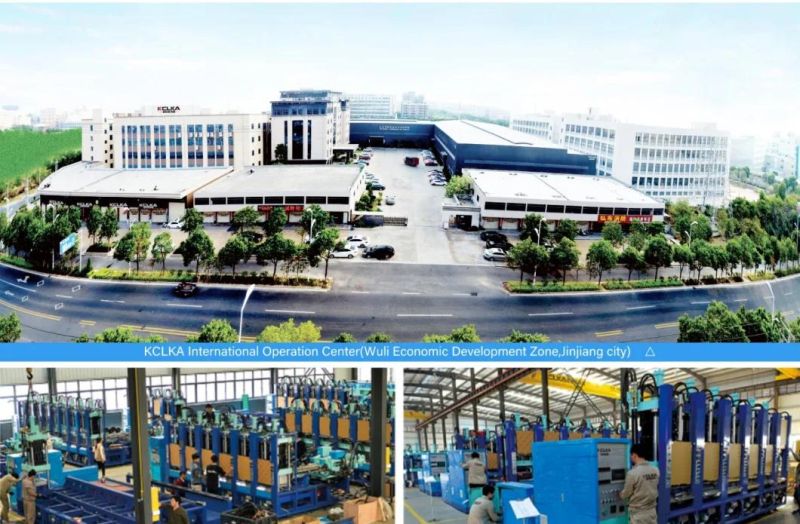

Company Proflie:Introduction: (scale, concept, industry type, etc.)KCLKA Machinery Manufacturing Co., Ltd. was established in 2003 and is located in Jinjiang City, "The capital of Chinese brands". It is a high-tech research and development enterprise specializing in the production of various shoe processing equipment. The company now has more than 200 employees and a modern standard factory building of more than 60,000 square meters, with factories in Jinjiang and Xiamen.
KCLKA  Machinery's products are well-known in the footwear manufacturing industry for their complete categories, reliable quality and thoughtful service. The main products are EVA injection molding machines, EVA secondary foaming molding machines, PVC injection molding machines, TPR injection molding machines, E-TPU Foam molding machines and other shoe-making machines, various matching machinery and equipment, such as dripping machines, etc. At present, the products are always in a leading position in the industry and are exported to dozens of countries on five continents including Turkey, Africa, South Africa, Vietnam, Russia and Southeast Asia. The domestic and foreign sales and technical service systems have also been improved.











FAQ:
1.What is your terms of delivery?
EXW, FOB, CIF, etc.
2. How can I place an order?
You can contact any of our sales person for an order. Please provide the details of
your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with   Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
3.When can I get the price?
Usually we quote within 24 hours after we get your inquiry.
