• Model NO.：FB-K-600
• Automation：Automatic
• Computerized：Computerized
• Machine Weight：5t
• Certification：CE, ISO9001:2008
• Certificate：CE, ISO9001
• Guarantee：One Year
• Feature：Film Blowing and Gravure Printing Machine Set
• Corona Treater：One Set
• Printing Speed：50m,Min
• Printing Color：One Color
• Transport Package：Stretch Film or Wooden Case
• Specification：CE, ISO9001
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：8477201000
• Production Capacity：30 Set,Month

Basic Info.

Model NO. FB-K-600 Automation Automatic Computerized Computerized Machine Weight 5t Certification CE, ISO9001:2008 Certificate CE, ISO9001 Guarantee One Year Feature Film Blowing and Gravure Printing Machine Set Corona Treater One Set Printing Speed 50m/Min Printing Color One Color Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477201000 Production Capacity 30 Set/Month

Product Description

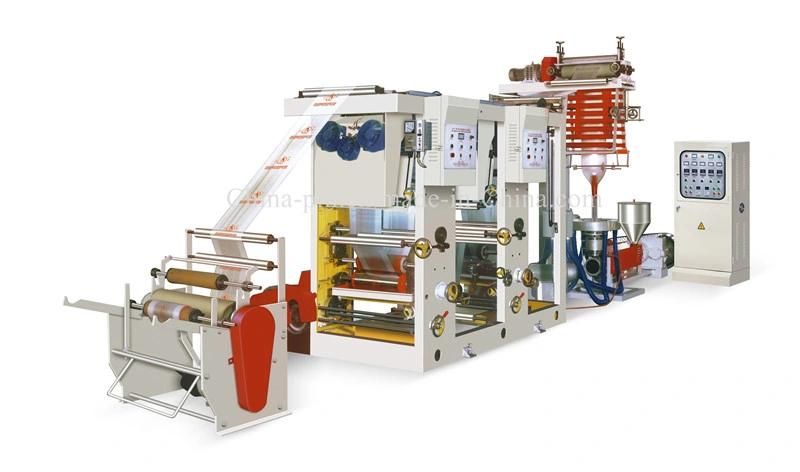

Film Blowing with Printing Machine Line,rotary die head film extruder with gravure printing machine,PE extruding machine

SPECIFICATION
The machinge body is chanel steel frame traction motor frequency with single rolling friction,lift up and down it is suitable for blowing high-low pressure polyethylene industral film and agricultural mulch film.It can be used for continuously printing various plastic films,cloths,thin leathers and package products,etc with one-sided and two-sided printing finished by once-through operation,360 register device is accruagte and doesn't affect stretching of film so that color-checking of printing can be adjusted freely at any time.The farinfrared tube drying unit can keep drying at 50%/min so as to make picture clear and exquisite
MAIN TECHNICAL PARAMETER

Model	FB-K-600
Apolied Mterials	LDPE.HDPE.LLDPE
Screw DIA	50mm
Screw L/D Ratio	28:1
Blow Film Motor Power	11Kw
Max Extruded Quantity	35kg/h
Film I lead DIA	φ80φ 120
Blow Flim Width	600mm
Blow Flim Thickness	0.01-0.10mm
Length Range of Printing	250-1000mm
Printing Width	600mm
Total Power	28Kw
Weight of Machinery	4.3T
Dimensions of Machinery	7500 x 2000 x 3200mm

C: Details Information
1. Extruder Unit
Die Head Material: Cr40 Mould Steel

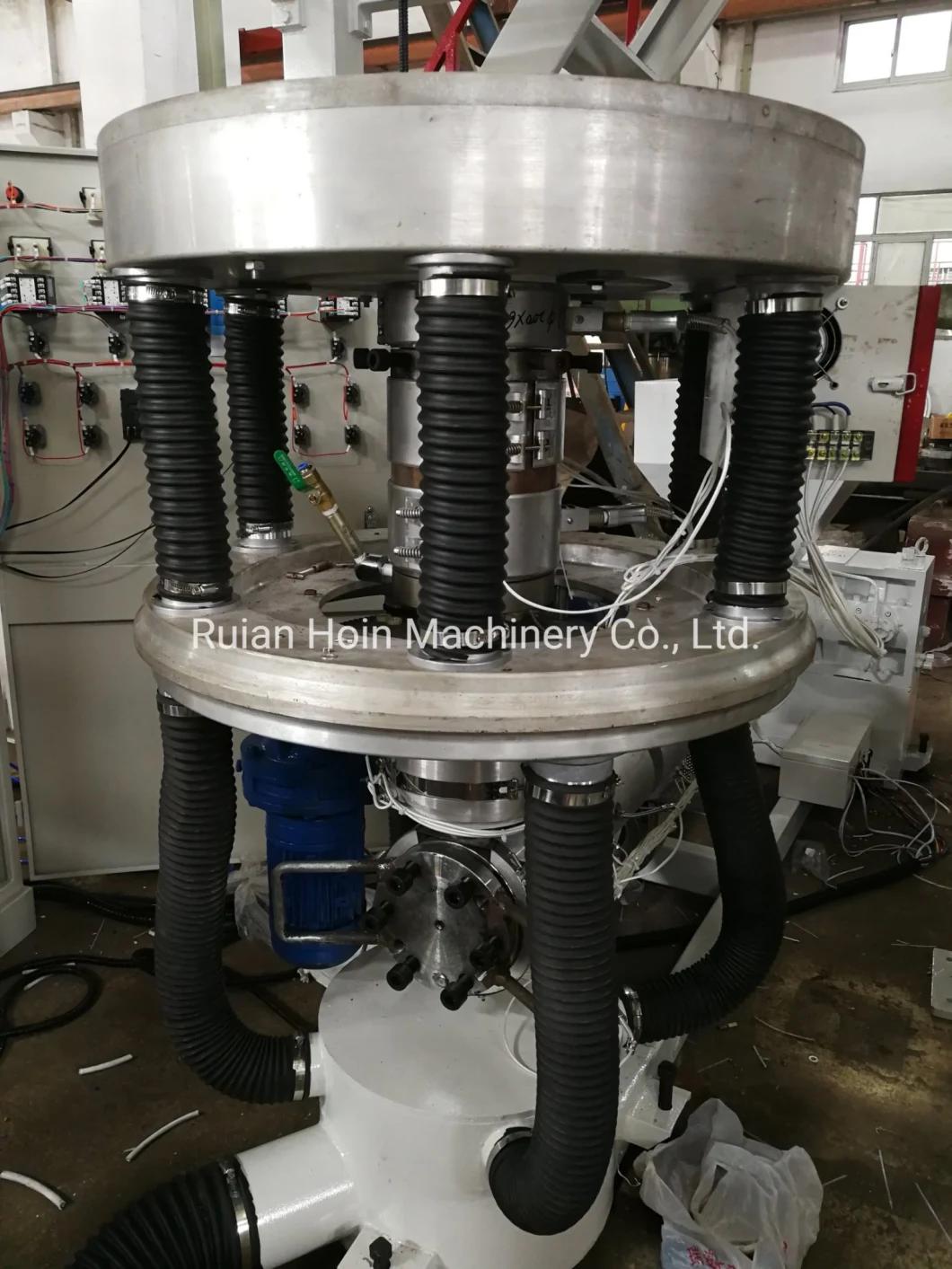

Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Heating Ring Material: Steel Stainless
Screen Changer: Standard Manual Type
Gear Box: Hard Tooth Surface Gear Box

2. Take Up Section

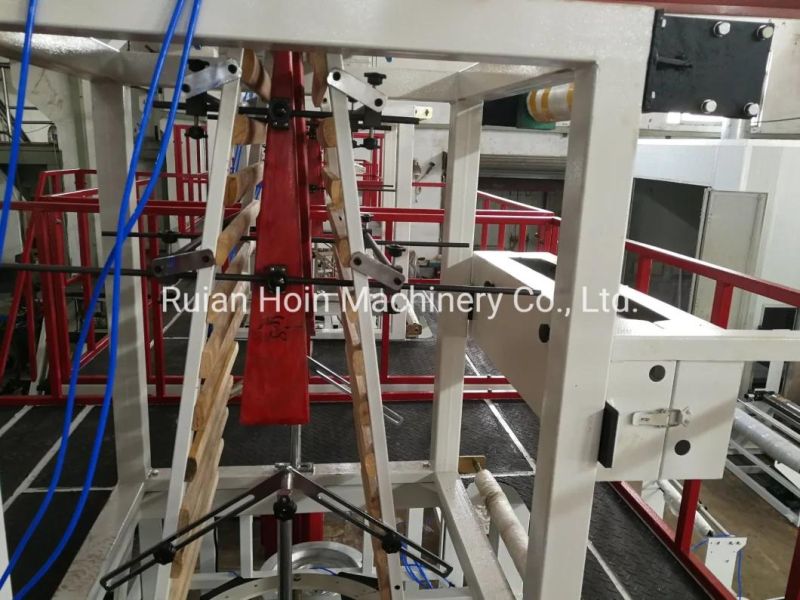

'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Corona Treater: 600MM

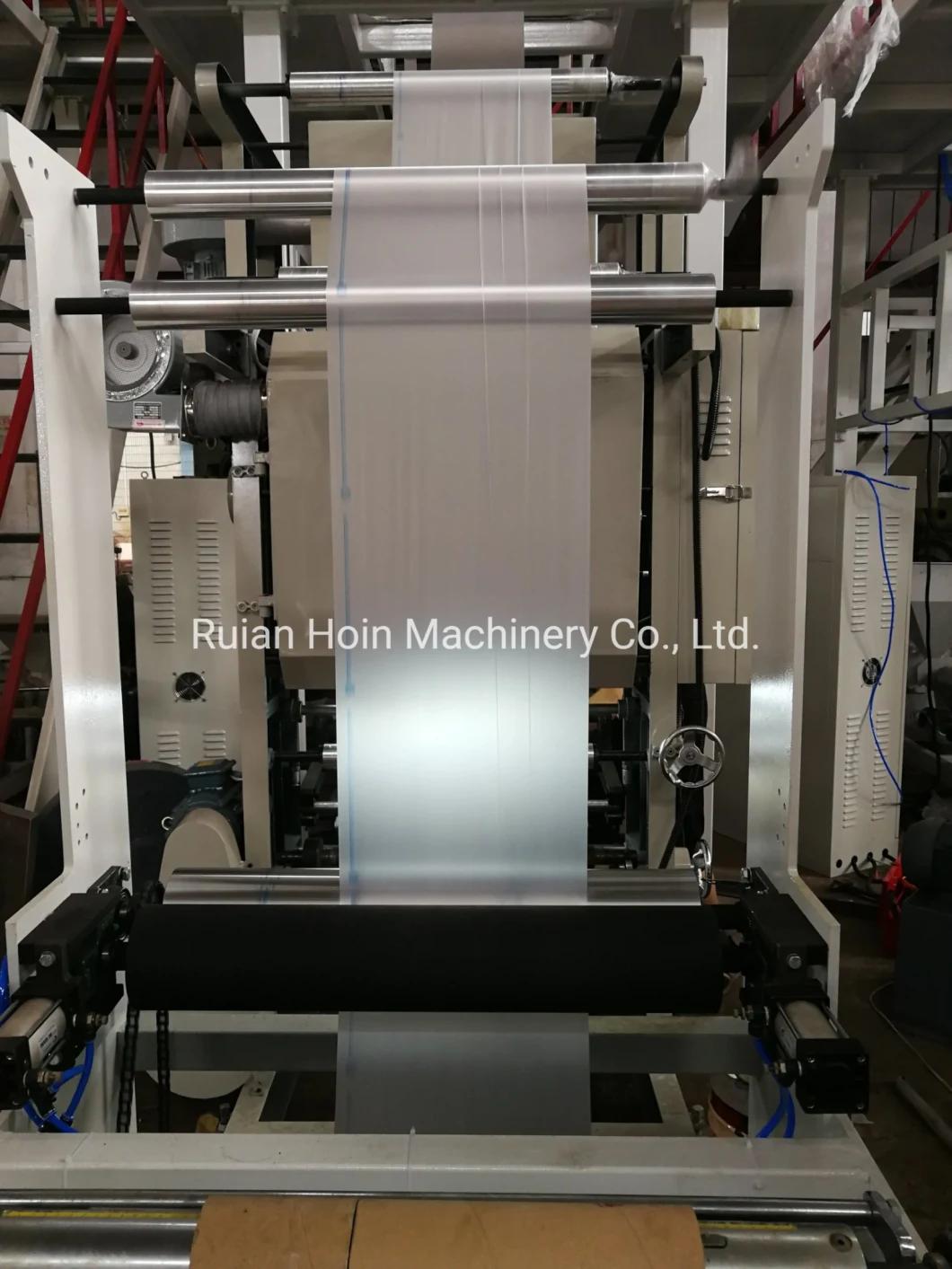

3. Printing Unit
Printing Speed: 10-60m/min
Printing Width: 550MM
Printing Color: 1-4 Colors

4. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

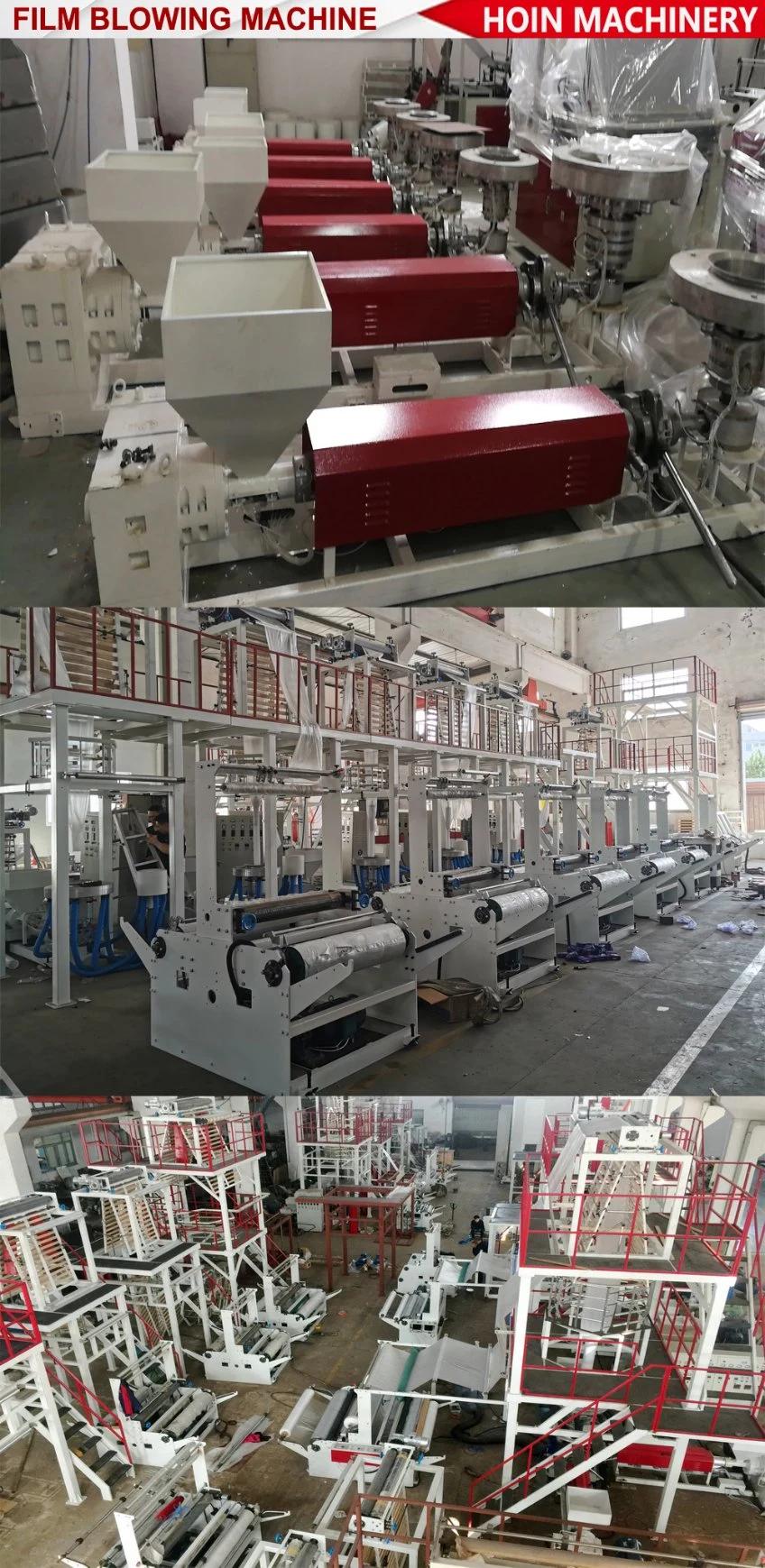

HOIN WORKSHOP

MORE PRODUCTS
AFTER SERVICE OF HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
