Plastic Machinery

Extrusion Machinery for Polycarbonate Multiwall PC Hollow Sheet/Roofing Panels

Qingdao Leader Machinery Co., Ltd.
  • After-sales Service:Available
  • Warranty:18 Months
  • Product Type:PC Board
  • Board Layers:Single Plate
  • Screw No.:Single-screw
  • Automation:Automatic

Base Info

  • Model NO.:LMSB-120,35
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008
  • Customized:Customized
  • Condition:New
  • Sheet Size:2100mm Width*4-10mm Thickness
  • Application:Sunshine Panel Roofing or Construction etc
  • Extruder Model:Sj120,35+45,30
  • T-Die Head:Jc-Times Brand
  • Max Capacity:350kg,H
  • Total Installed Power:510kw
  • Guaranteed Time:12 Months
  • Transportation:4 Sets of 40gp Containers
  • Transport Package:Wooden Pallet,Cases with Streching Films
  • Specification:CE, ISO9001-2008, SGS, GOST
  • Trademark:leader machinery
  • Origin:Qingdao, China
  • HS Code:84772090
  • Production Capacity:32 Sets,Per Year

Description

Main extruder screw diameter120mmL/D35:1Main motor power185kwCo-extruder screw diameter45mmL/D30:1Motor power15kwSheet thickness range4-12mmSheet width2100mmCapacity450kg/hTotal installed power 480kw

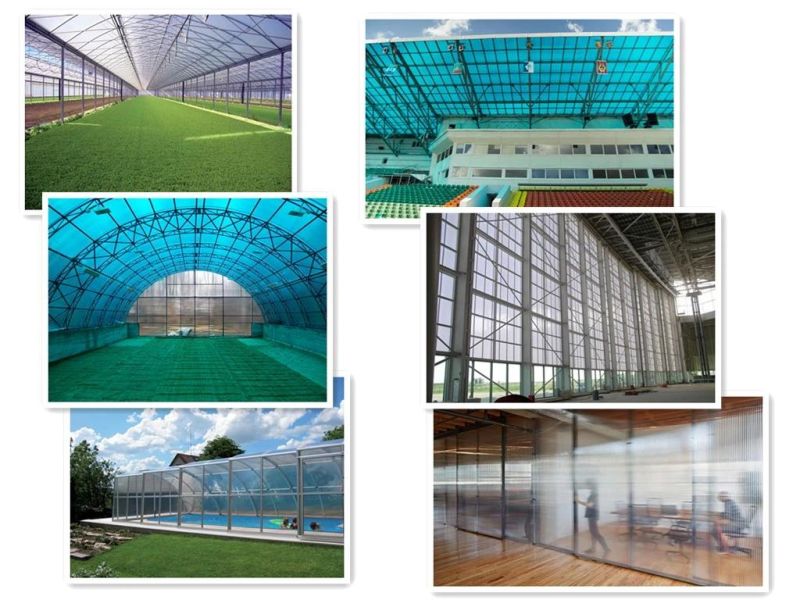

PART 3 Polycarbonate hollow sheets applications:
1. Sunshades for stadium and bus shelters
2. Lighting for corridors, passages and subway entries
3. Bank ATMs
4. Sound and heat insulation for construction such as: houses
5. Canopies for agriculture greenhouse, zoos
6. PC sheets mainly used for building and decorating materials, greenhouse material,
telephone booth, insulation shield express ways & highways
7.Office building, hotels, villas, stadium, schools, bus stop, terminals, hospitals, subway entry
and exit doors, etc.
Extrusion Machinery for Polycarbonate Multiwall PC Hollow Sheet/Roofing Panels

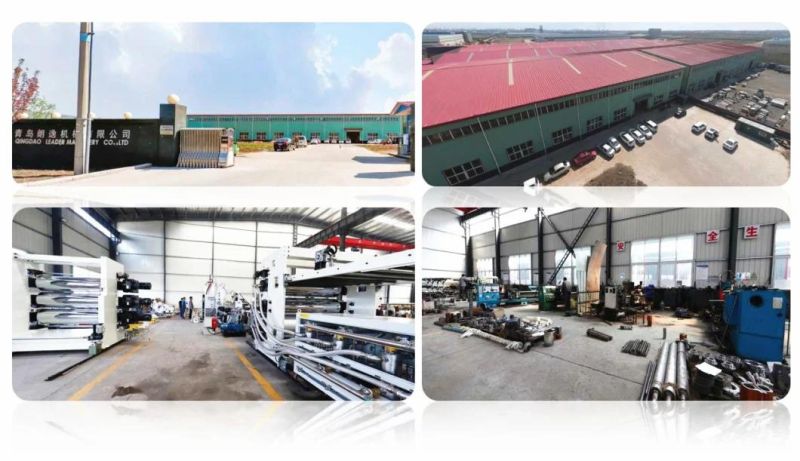

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:
Extrusion Machinery for Polycarbonate Multiwall PC Hollow Sheet/Roofing PanelsExtrusion Machinery for Polycarbonate Multiwall PC Hollow Sheet/Roofing Panels
PART 6 COMPANY CERTIFICATIONS:

Extrusion Machinery for Polycarbonate Multiwall PC Hollow Sheet/Roofing Panels

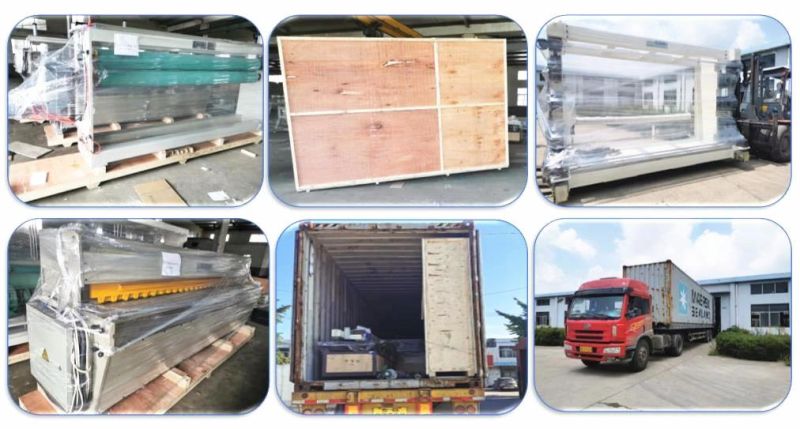

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
Extrusion Machinery for Polycarbonate Multiwall PC Hollow Sheet/Roofing Panels
PART 8 COMPANY OVERSEA SHOWS
Extrusion Machinery for Polycarbonate Multiwall PC Hollow Sheet/Roofing Panels

OUR COOPERATED SUPPLIER LIST
Extrusion Machinery for Polycarbonate Multiwall PC Hollow Sheet/Roofing Panels

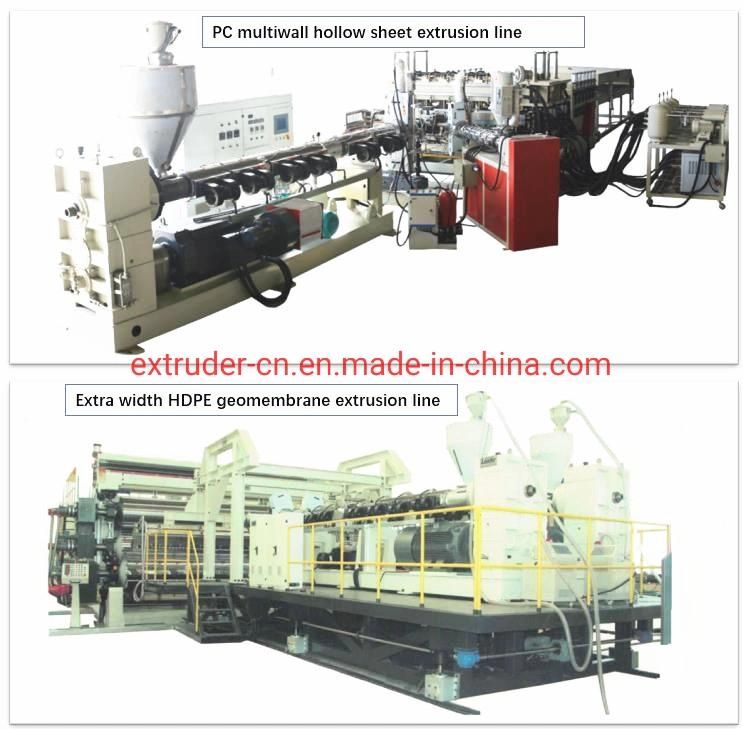

PART 8 OTHER RELATED AND RECOMMENDED PRODUCTS ARE AS FOLLOWS:

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
