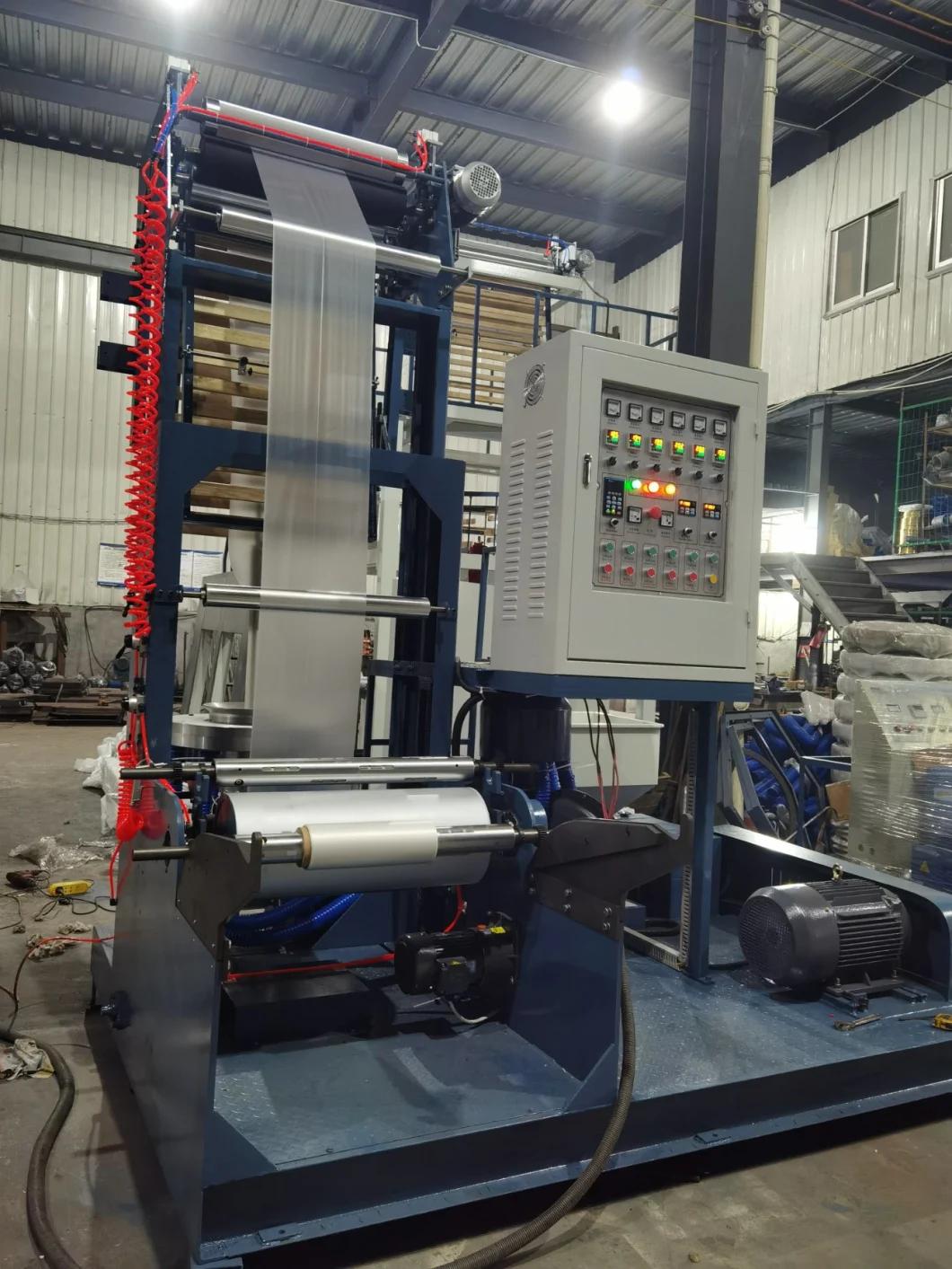

High Efficiency Mini Film Blowing Machine Blown Film Machine
Ruian Queensense Machine Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：QS-MN45,50
- Machine Weight：4T
- Certification：CE, ISO9001:2008, UL, QS
- Max.Extrudsion Output：HD50kg,H,Ld60kg,H
- Die Size：60mm
- Film Width：100-600mm
- Film Thickness：0.008-0.1mm
- Transport Package：Seaworthy
- Specification：CE SGS
- Trademark：QUEENSENSE
- Origin：China
- HS Code：847780000
- Production Capacity：2000PCS,Per Year
Description
Use:
This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.
Characteristics:
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance., Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.
Main Technical Variables:
| Model | D45 | D50 |
| Diameter of Screw(mm) | φ 45 | φ 50 |
| Max. Width of Folded Film (mm) | 100-450 | 100-550 |
| Single-face Thickness of Film(mm) | 0.01-0.10 | 0.01-0.10 |
| Max. Extrusion(kg/h) | 30 | 35 |
| L/D | 28: 1 | 28: 1 |
| Power of Main Motor(KW) | 7.5 | 11 |
| Power of Traction Motor(KW) | 0.75 | 1.1 |
| Heating Power(KW) | 11 | 13 |
| Overall Dimension (mm) | 2200× 1400× 2200 | 2300× 1600× 2200 |
| Weight(T) | 1.3T | 1.4T |
