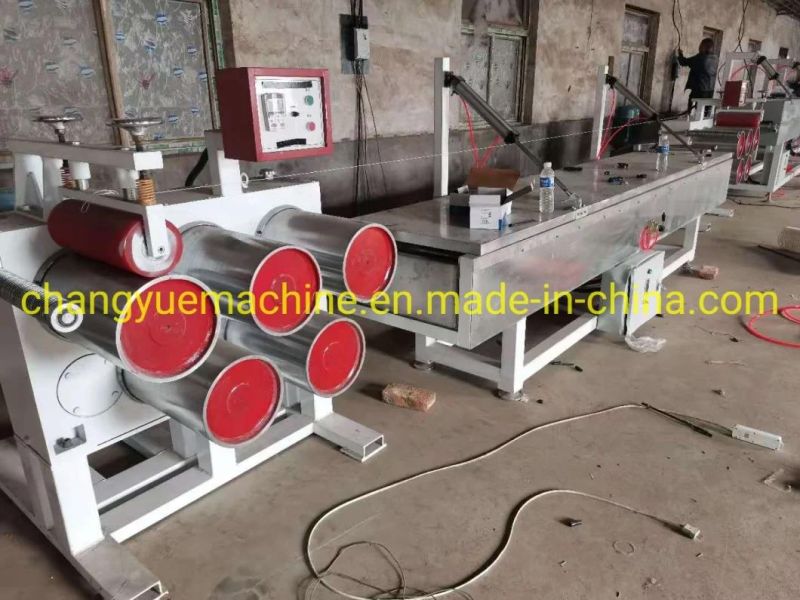

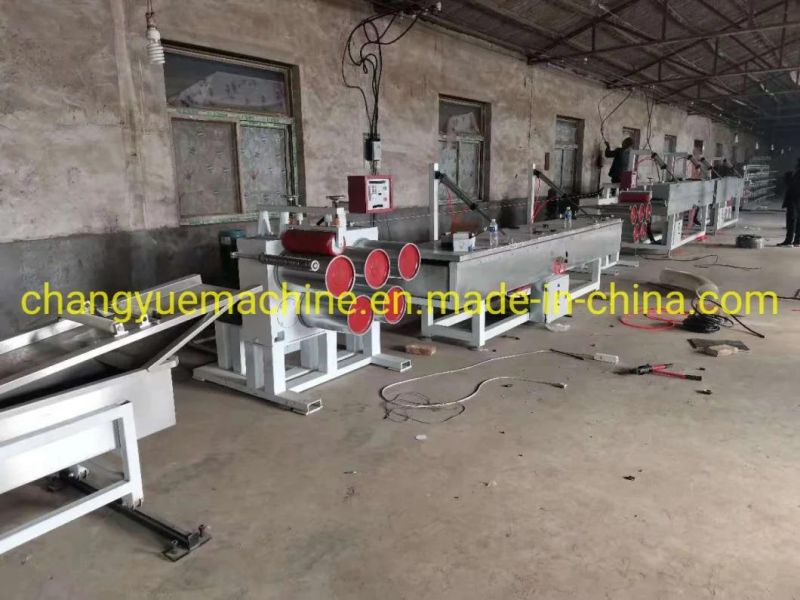

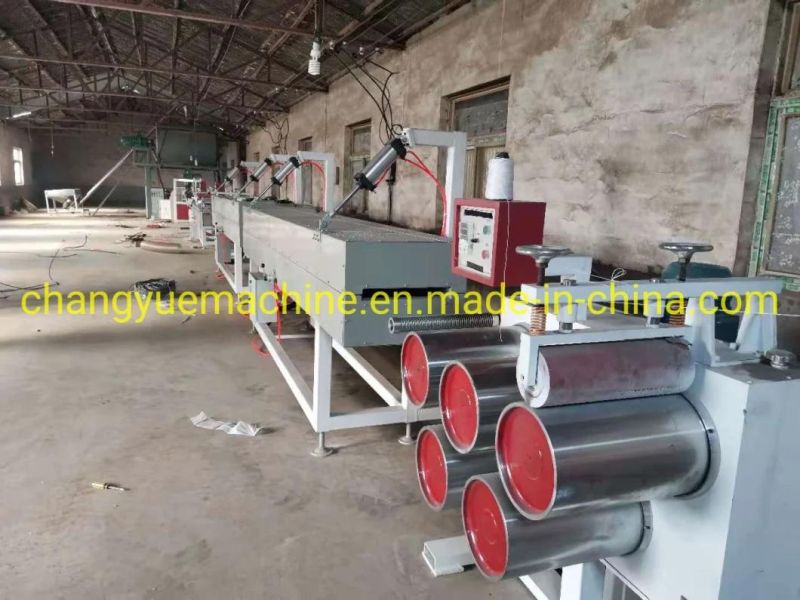

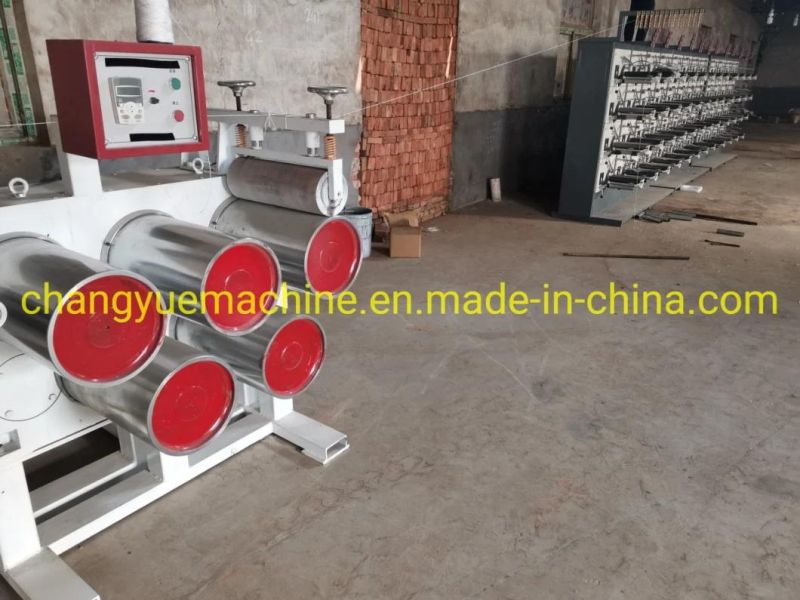

Pet Flat Yarn Extrusion Line / Pet Filament Making Machine
Qingdao Changyue Plastic Machinery Co., Ltd.- Type：Yarn
- Plastic Processed：Pet
- Product Type：Yarn
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：SJ 75
- Engagement System：Non-Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Yarn Size：2 mm X 0.16 mm
- Transport Package：Film Packing
- Specification：2 mm x 0.16 mm
- Trademark：Changyue
- Origin：Qingdao, China
- HS Code：84772090
- Production Capacity：100 Kg,H
Description
Model
GTLS-70
GTLS-80
GTLS-90
GTLS-100
Screw L/D
30:1
30:1
30:1
30:1
Gearbox model
200
225
225
250
Main motor
18.5kw
22/30kw
30/37kw
45kw
Capacity(kg/h)
80-100kg
100-120kg
120-140kg
140-160kg
Mould Dia.
200
200
200
200
Filament Dia.
0.1-2.5mm
0.15-2.5mm
0.15-2.5mm
0.2-2.5mm
