Waste PVC Pipe/PP Bag/Pet Bottle/PE Film Plastic Recycling Machine with Washing and ...
ZHANGJIAGANG S&K MACHINERY CO., LTD.- Material Processed：PP PE PPR PVC ABS
- Plastic Type：PP PE PPR PVC ABS
- Screw：Single,Double
- Automation：Automation
- Computerized：Computerized
- Certification：GMP, ISO9001:2008, CE
Base Info
- Color：Customized
- Power：10-295kw
- Weight：5-20t
- Plastic Process：PP,PE,PA,PVC,PE-Rt,Pex,PVDF,ABS
- Warranty：1 Year
- Voltage：380V ,220V
- Usage：Plastic Pipe
- Name：Plastic Washing and Recycling Machine for Plastic
- Key Words：Plastic Washing and Recycling Line
- Transport Package：Film
- Specification：28*1.5*10 m
- Trademark：S&K
- Origin：Jiangsu
- HS Code：84778039
- Production Capacity：30 Sets Per Month
Description
1
Model
SKML-85
SKML-100
SKML-130
SKML-160
SKML-180
2
Screw Diameter(mm)
85
100
130
160
180
3
Compactor power(kw)
37
55
75
90
110
4
First extruder power(KW)
55
90
132
180
250
5
Second extruder power(kw)
18.5
30
45
55
90
6
Output(kg/h)
180-250
280-350
450-500
650-700
900-1000

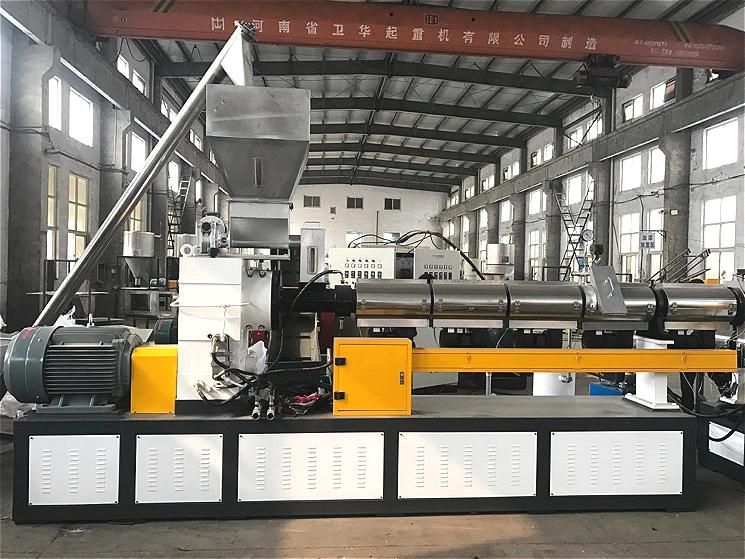

Machine Parts:

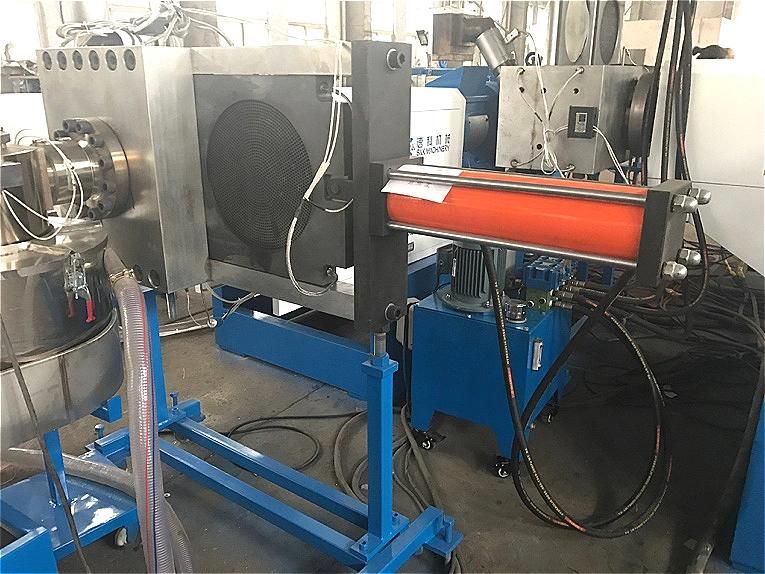

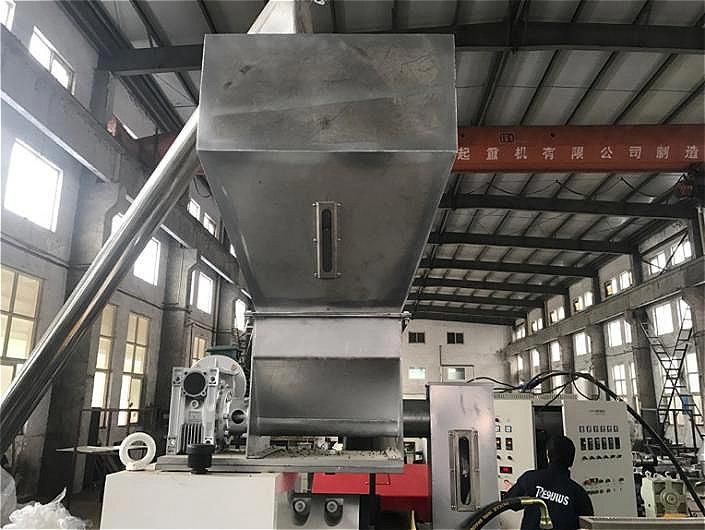

Single feeding screw : Single screw extruder Hydraulic Screen changer :1.Push the material into the 90mm screw 1.Screw and Barrel Material: 38CrMoA1A 1.Changing screen time≤2 sec.
2.Feeding motor power:1.5KW 2.Rotate Speed: 10-150 rpm 2.Motor power:2.2KW
3.Speed control: By inverter 3.Heating Method: Electric heater 3.Diameter of the plate:300mm
4.Cooling Method: Force air cooling 4.Heating power:16KW

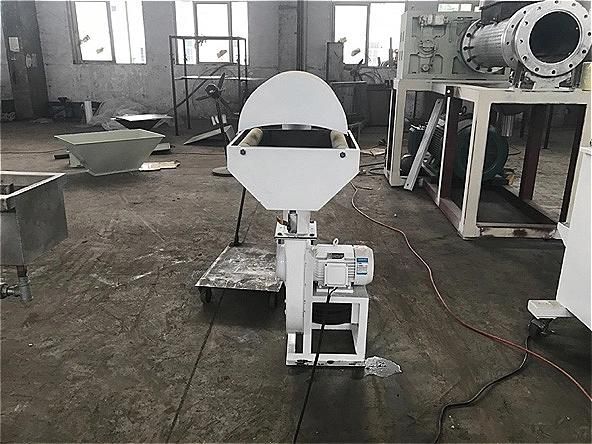

Cooling tank: Strong wind blowing machine: Cutter:1.Length:4000mm 1.Power:blower 3KW 1.Horniness alloy rotary cutter
2.Material: SUS304 2.Material:stainless steel 2.Cutter diameter:200mm
3.Thick:2.0mm, 3.Adopt one suction one blower 3.Blade width:300mm
4.Bracket: Q235 4.Traction speed :30-90m/min

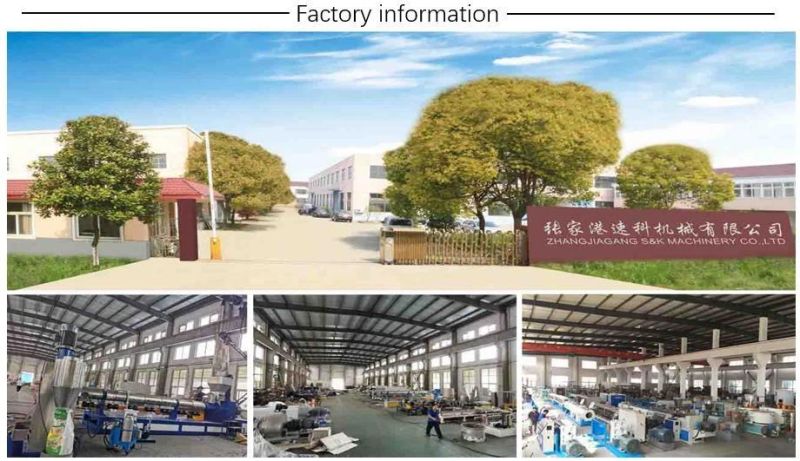

Factory overview:
Our service:Pre-sale :
We provide presales service in various forms, for example, making investment budget,manufacturing planning, etc. so that customers make a reasonable plan with less cost.
• Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
• Plant Planning: We provide the mounting dimension of the equipment base,design of equipment layout, workshop ventilation, water transmission etc.
• Offer information of peripherals
In-sale :
• Detailed design of lay-out that is the position of the procession
• Technological information of provided products
• Schedule about design,manufacturing and installation
• Working & Producing progression
• Training course for the technician so that the installation is safe and standard
After-sale :
• For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
• We will answer customer's question on technology in time. If needed, we will offer on-site guidance and assistance.
• We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
Competitive Advantage:
1. Installation and test running
We will invite customers to check the machine before shipment. And if the customer requests us to guide installment and test running in his factory, we will send our engineer. And the customer should pay for engineer's ticket, visa, room and board, $80 per day for one people as allowance.
2. Quality guarantee
We normally guarantee machine quality for one year to key components of the machines.
S&K Machinery has been dedicated to producing machinery and equipments and carrying out facility construction,pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward,based on our infinite services and trust to customers.
