• Model NO.：LMSB-80,156
• Customized：Customized
• Condition：New
• Sheet Size：1500mm Width*0.5-2mm Thickness
• Sheet Application：Packing, Waterproof Sheet, Edge Banding etc
• Extruder Model：Conical Twin Screw Extruder Sj80,156
• Main Electrical Parts：ABB, Omron, Rkc, Schneider, Siemens etc
• Max Capacity：350-400kg,H
• Die Head Type：T-Type, Jc-Times Brand
• Calibrating Method：Three Rollers Calendars Calibrating
• Machine Dimension：25m*3.5m*2.9m
• Transportation：1 Set of 40gp Container
• Transport Package：Separate Wood Case and Pallet
• Specification：CE, ISO9001-2008
• Trademark：LEADER
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：30 Sets,Year

PAR T1  THIS LINE CONSISTS OF (COMPULSORY)1Automatic spring feeding machine1 set2Conical twin screw extruder1 set3T-type /hanger type die head (JC-Times brand)1 set4Three Roller Calendars (alloy steel material )1 set5Rollers thermoforming machine1 set6Cooling frame and edge cutting unit1 set7Haul off machine1 set8Plastic cutting machine-Guillotine1 set9Twin position winder1 set10Spare parts1 set PART 2  ACCESSORY MACHINE PARTS (OPTIONAL)11High speed hot and cold mixer1 set12Plastic crusher1 set13Plastic pulverizer1 set14Air compressor1 set15Industrial water chiller1 set PART 3 SHEET SPECIFICATIONS1Sheet width500-1500mm2Sheet thickness0.5-2mm3TypeRigid pvc, untransparent PART 4 SHEET APPLICATIONS1Sandwich panel, furniture edge band, thermoforming packing PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES1Payment terms40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable2Delivery time60 days after receipt of prepayment3Packing methodWooden cases/pallets with stretching films4Guaranteed time18 months for mechanical parts, 12 months for electrical parts5After sale serviceSend 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable

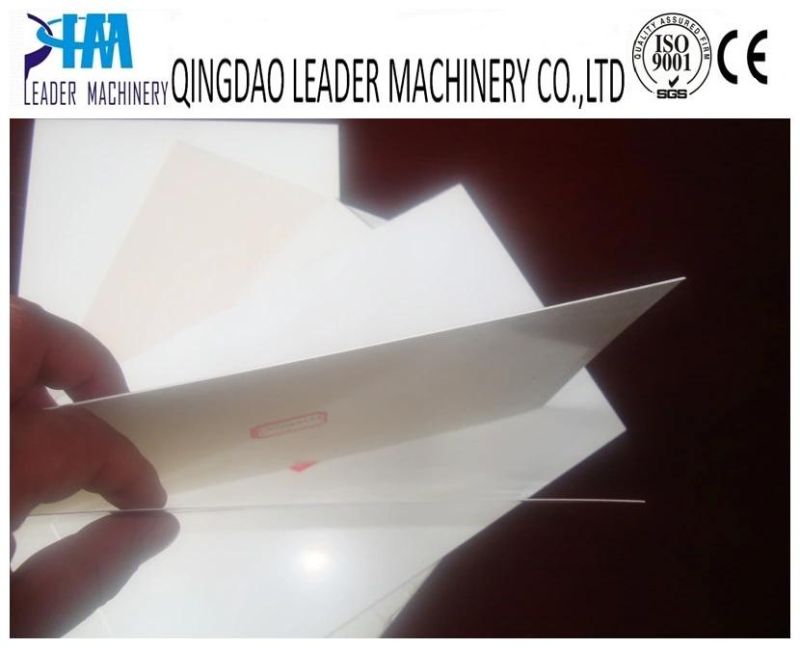

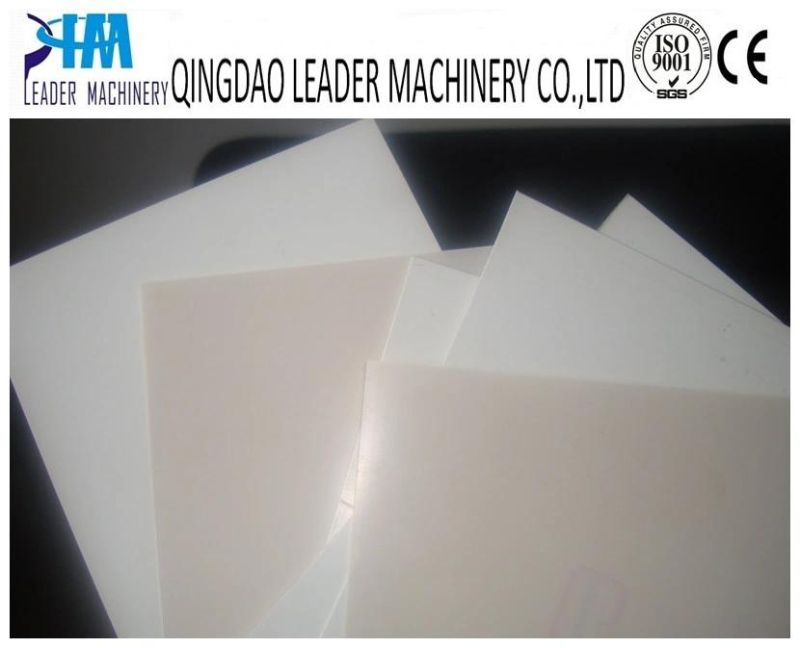

SAMPLE PICTURES:

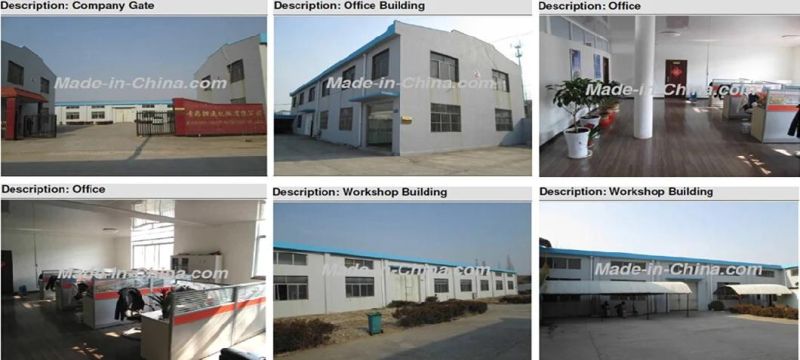

COMPANY INFORMATION AND MAIN PRODUCTS:




PART 7 COMPANY CERTIFICATIONS:

PART 8 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 9 COMPANY OVERSEA SHOWS

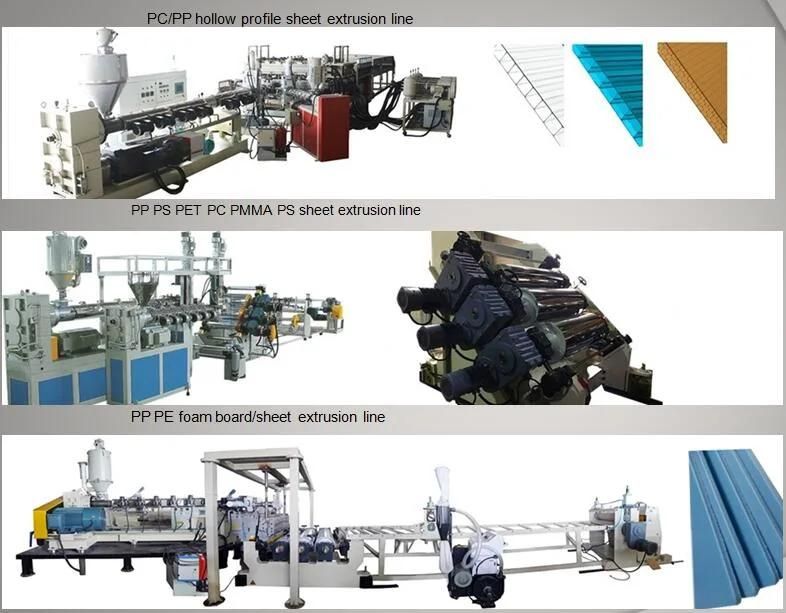

PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
