• Model NO.：LSJ-80,156+65,30
• Customized：Customized
• Condition：New
• Name：UPVC Corrugated Roofing Tiles Extrusion Plant
• Sheet Width：720mm-1050mm
• Sheet Thickness：0.5mm-3mm
• Sheet Applications：Roofing Tiles,Sheets,Panels for Warehouses
• Extruder Model：Conical Twin Screw Extruder +Single Screw Extruder
• Die Head：T-Type Die Head
• Main Electrical Parts：ABB, Omron, Rkc, Schneider, Siemens etc
• Guaranteed Time：12 Months
• Transportation：1 Set of 40gp Container and 1 Set of 20gp Containe
• Machine Dimension：25m*2.5m*2.8m
• Transport Package：Wooden Case or Other Moistureproof Packages
• Specification：CE, ISO9001-2008
• Trademark：Leader Machinery
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：25 Line Per Year

PAR T1   THIS LINE CONSISTS OF (COMPULSORY)
1
Automatic spring feeding machine
1 set
2
Conical twin screw extruder SJSZ-80/156
1 set
3
Single screw extruder SJ-45/30 or 65/30 for UV extrusion
1 set
4
T-type /hanger type die head (JC-Times brand)
1 set
5
Corrugation forming boards
1 set
6
Cooling frame and edge cutting unit
1 set
7
Haul off machine
1 set
8
Plastic cutting machine-guillotine with meter counting
1 set
9
Stacker
1 set
10
Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)
11
Spare parts
1 set
PART 2   ACCESSORY MACHINE PARTS (OPTIONAL)
1
High speed hot and cold mixer SRL-Z 300/600
1 set
2
Plastic crusher SWP-450
1 set
3
Plastic pulverizer SMP-400
1 set
4
Air compressor
1 set
5
Industrial water chiller
1 set
PART 3 SHEET APPLICATIONS
1
Roof panels, roof tiles, roof sheets, ceilings
2
Factories, warehouses, farm building, greenhouses, canopies, walkways, patio covers,
Pergolas, cladding
PART 4 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1
Payment terms
40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2
Delivery time
70 days after receipt of prepayment
3
Packing method
Wooden cases/pallets with stretching films
4
Guaranteed time
18 months for mechanical parts, 12 months for electrical parts
5
After sale service
Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6
Contact
Ms Lilly Zhou (mob/ 0086-15266238607)
Sheet specifications
Sheet width
720,760,820,840,860,880,900,930,950,980,1050mm etc
Sheet thickness
0.5, 0.8, 1.0, 1.2, 1.5, 2.0,2.5,3.0mm
Sheet length
4m, 6m or customized
Sheet weight
1mm thickness 1.4kg-1.85kg/m2, 2.0-2.4 thickness 2.5-3kg/m2
Suitable environment
-40(50)ºC-70ºC
Surface treatment
With UV coating
Service life
More than 25 years, 10years can be guaranteed
Colors and tints
Clear, bronze, opal
Textures

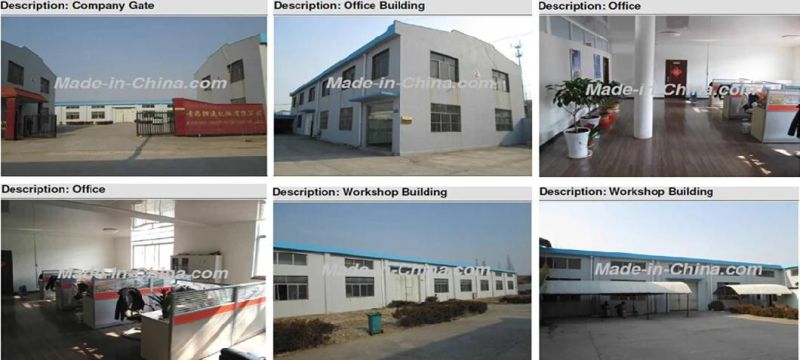

Can be texturesPART 5 COMPANY INFORMATION AND MAIN PRODUCTS:




PART 6 COMPANY CERTIFICATIONS:

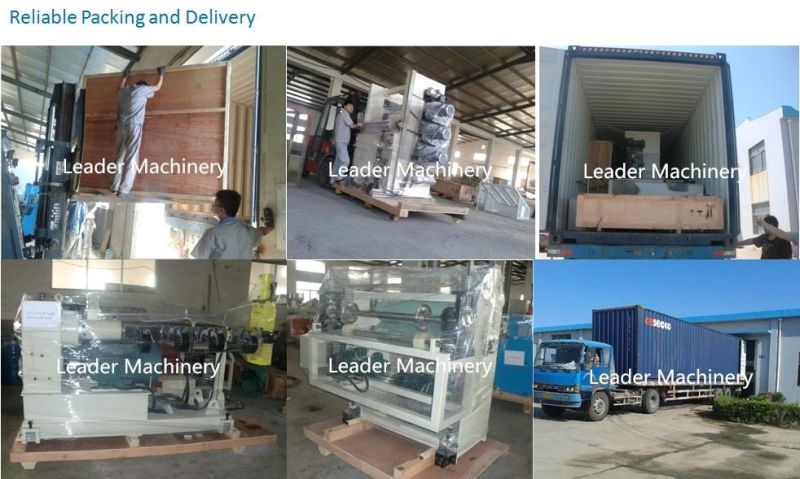

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:

PART 9 CONTACT INFORMATION:

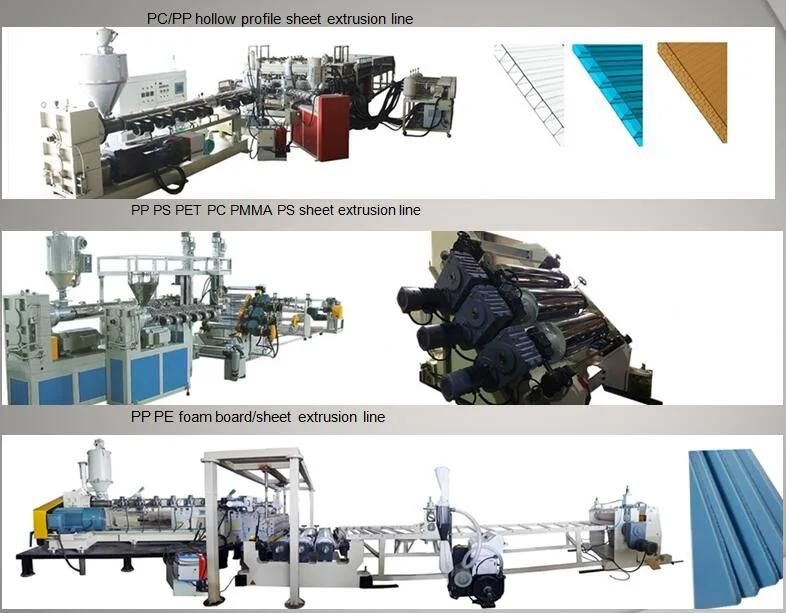

PART 11 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
