• Model NO.：Zeanon
• Condition：New
• Weight：20t
• Transport Package：Wooden Pallet
• Specification：CE
• Trademark：XDC
• Origin：China
• HS Code：84778000
• Production Capacity：20sets,Year

Basic Info.

Model NO. Zeanon Condition New Weight 20t Transport Package Wooden Pallet Specification CE Trademark XDC Origin China HS Code 84778000 Production Capacity 20sets/Year

Product Description

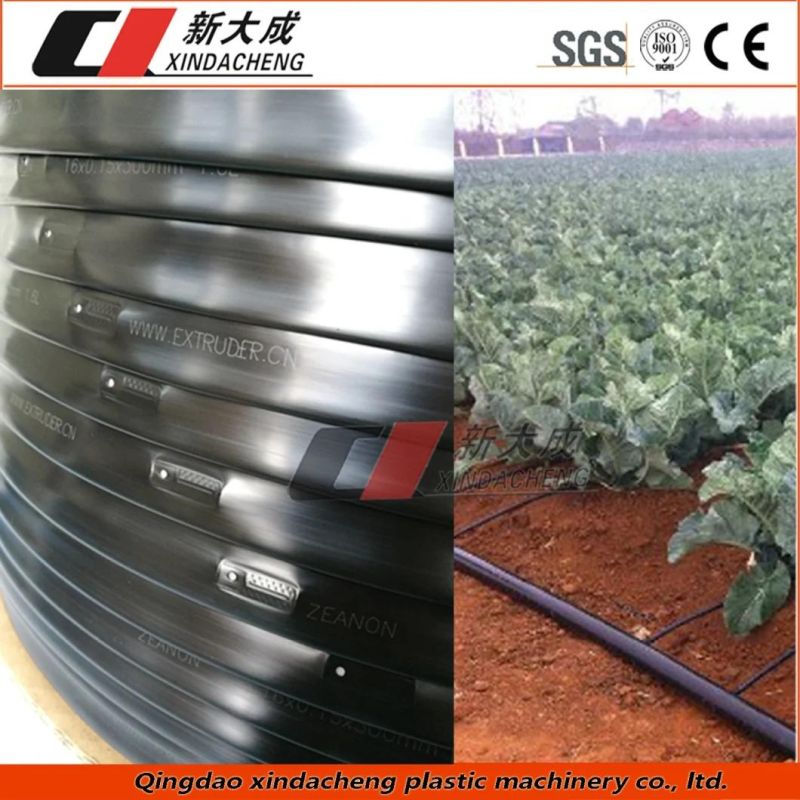

PE Drip Irrigation Tape/belt extrusion machine
Production line is mainly used in the production base of Polyolefin single wing labyrinth water conveying belt on a turbulent flow, the widely used drip, shed along the crop plant line laid, fruit trees, flowers, vegetables and other crops irrigation. Technical features:
1. The production line adopts high efficiency extruder, rapid in net, screw blowing head.
2. The special design of vacuum suction plastic composite forming die, ensure the accuracy of the maze and composite strength.
3. Unique mesurement device and scale huff, ensure the accuracy of products.
4. The extruder and hual off adopt ac frequency conversion control technology, easy to adjust.
5. Adjust the temperature by temperature control meter to realize PID control .


Technical features
1. The production line adopts high efficiency extruder, swift net changer and screw plastic blowing head;
2. Special designed vacuum composite forming die to ensure the accuracy and composite density;
3. Unique measure device and scale huff to ensure the precise of products;
4. Extruder and hual-off adopt AC frequency conversion technology;
5. Temperature is adjusted by temperature control meter to realize PID control;
6. The production is controlled by PLC, all the technical parameters can be set on the touch screen;

Item	Pipe diameter	Pipe thickness	Production speed	Distance of dripper
Flat dripper irrigation pipe production line	Φ12-16-20mm	0.15-1.0mm	>150m/min	100150200300400500-1500mm

Mold forming round, specifications and technical parameters:

Mold outside diameter size(mm): 382
Installation size(central distance mm): ≥200
Output:30-40m/min
Size of the final length : 500-2000
specification of drip irrigation belt(mm) : 12-20
Wall thickness of drip irrigation belt (mm): 0.16-0.24
drip flow(l/n): 1.8-3.2
flow deviation: ±5%
working pressure(Mpa): 0.1-10.16




if you are interested in this machine line ,please contact me:
