Engel Technology Crosslinked Pexa Pipe Production Machine
Weifang Kaide Plastics Machinery Co., Ltd.- Product Type：PEX Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Customized：Customized
Base Info
- Model NO.：KDXA
- Condition：New
- Product Name：Crosslinked Pexa Pipe Extrusion Machine
- Pipe Diameter：16-32mm
- Production Speed：4m,Min
- Control System：Siemens PLC Control
- Trademark：KAIDEMAC
- Origin：Weifang, China
- HS Code：8477209000
- Production Capacity：200 Sets, Year
Description

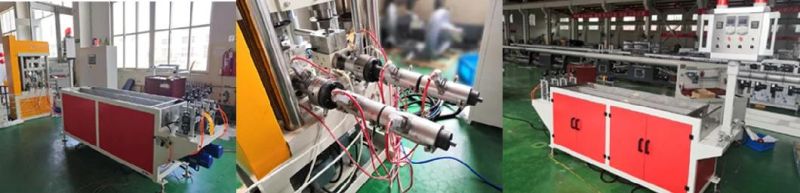

Features of Pipe Production Line:
1)High strength material made crank-rod structure, ensuring machine working reliability and durability.
ABB brand converter to control material feeding; directly adjust on main PLC system
High quality stainless steel material made hopper
Cylinder driven by AC motor, China top quality brand; connected by high ware resistance belt.
2)Special designed tip and die mould for PEXa pipe making; Processed and manufactured by imported CNC machinery to ensure the precision degree, and produced pipe diameter and thickness accuracy.
Tip heating system is special designed, with conduction oil. Oil temperature is set on main PLC.And with pressure displace gauge, and also control valves.
Due to PEXa material speciality, tip and die mould surfaces are special treated, to reduce friction force.
3)Cooling tank and haul-off machine are designed as in integration, saving space and easy to operate.
Cooling tank body material is made high stainless steel
Haul-off machine driven by AC motor, with ABB brand converter; Separate control panel for operation convenience.
Using SICK brand encoder, and AUTONICS brand length metering system, with alarm and length auto marking to get exact required coil length.
4)Polish rod type traversing system; easy to operate
Coil reel structure is very simple; inner coil size is fixed, which is designed as per customer requirement or factory standard.

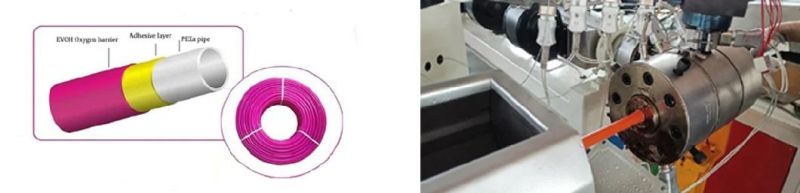

EVOH Oxygen Barrier Pipe Production Line:
Finished PEXa pipe can be coated with EVOH oxygen barrier and other protection layer, by another separate extrusion line, to get a 3 layer PEXa EVOH oxygen barrier pipe or 5 layer PEXa EVOH oxygen barrier pipes.
The three layer PEXa oxygen barrier pipe strucrues are: PEXa pipe, adhesive layer, and outer EVOH oxygen barrier layer. However the five PEXa oxygen barrier pipe structures are: inner PEXa pipe, adhesive layer, Middle EVOH oxygen barrier pipe, Adhesive layer, and outer PE protection layer.
