Landscape Orientation Plastic Pipe Cutting Machine Chipless Cutter

Qingdao Huashida Machinery Co., Ltd.
  • After-sales Service：All Life
  • Warranty：6-12monthes
  • Applications：HDPE,PVC Pipe
  • Pipe Range：110mm-1680mm
  • Transport Package：Standard Package
  • Specification：EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001

Base Info

  • Model NO.：HSD
  • Trademark：HSD
  • Origin：Qingdao China
  • HS Code：84778000
  • Production Capacity：1000unit,Year

Description

Basic Info.

Model NO. HSD Trademark HSD Origin Qingdao China HS Code 84778000 Production Capacity 1000unit/Year

Product Description

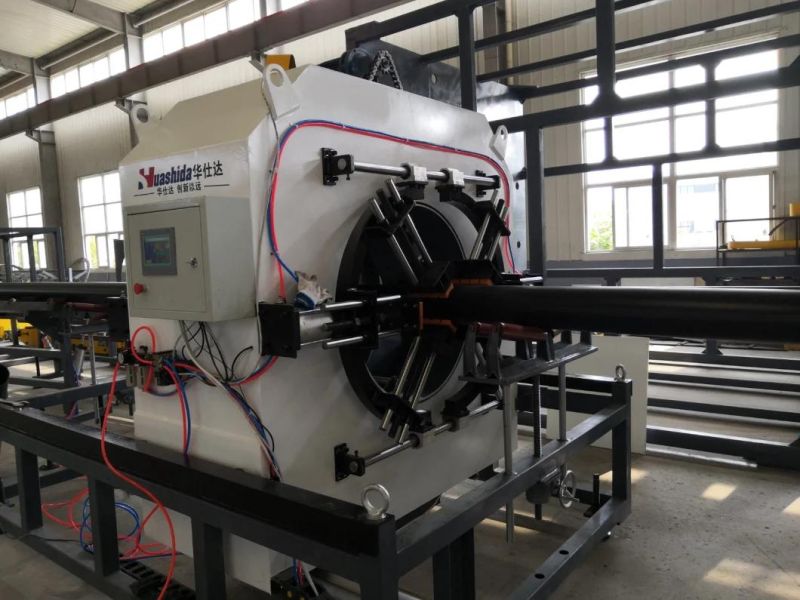

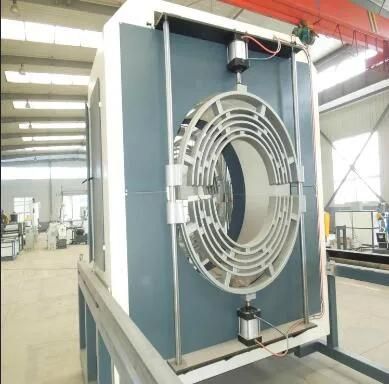

Landscape orientation cutting machine Plastic Pipe cutting machine

1. The Planetary Cutter Machine for plastic pipes is auxiliary to plastic extruder, used for automatic production line PVC PE PC pipes, profiles and so on.
2. Imported inverter, PLC program controller controls all mechanical drives.
3. It can product movements of motors, electrical appliances.
4. It can balance weight in cutting, and make it more stable.
5. Its applicability is wide and its usages are convenient.

Pre-Insulated Pipe Casing HDPE Pipe Extrusion Line-Vacuum Calibration
Landscape Orientation Plastic Pipe Cutting Machine Chipless CutterLandscape Orientation Plastic Pipe Cutting Machine Chipless CutterLandscape Orientation Plastic Pipe Cutting Machine Chipless CutterLandscape Orientation Plastic Pipe Cutting Machine Chipless CutterLandscape Orientation Plastic Pipe Cutting Machine Chipless CutterLandscape Orientation Plastic Pipe Cutting Machine Chipless Cutter

The line is an integration design composed by extrusion, vacuum calibrating, cooling, pulling, cutting, stacker. Great performance in automatic operation, extrusion capacity, steady and service life etc. Especially compared with the line use internal pressure method, vacuum calibrating method is much better than it for stiffness, pressure resistance and surface smooth.
Landscape Orientation Plastic Pipe Cutting Machine Chipless Cutter

Vacuum calibrating method pre-insulated pipe outside casing extrusion line is the most advanced and popular machinery in the world.Landscape Orientation Plastic Pipe Cutting Machine Chipless Cutter

Name
HSD250
HSD315
HSD400
HSD630

Cutting pipe Dia.

(mm)
60-250
110-315
160-400
400-630

Saw Spec. (mm)
110*2*40T
125*2*40T
125*2*40T
150*2.2*60T

Milling cutter Spec. (mm)
80*75*25
90*75*30
90*75*35
Special

Central height

(mm)
1000
1000
1000-1200
1200-1500

Product linear speed (M/min)
4
3
2.5
1.5

Cutting pipe thickness (mm)
15
20
25
30

Dimension (mm)
2500*1160*1540
3000*1260*1580
3000*1360*1540
3000*1360*1740

Weight (mm)
1200
1400
2000
2000
