HDPE Structured Wall Pipe Weholite Pipe Extruder Machine
Qingdao Huashida Machinery Co., Ltd.- Warranty：12 Months
- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：ISO9001:2008
Base Info
- Model NO.：HSD
- Customized：Customized
- Condition：New
- After-sales Service：Installation and Commissioning
- Pipe Diameter：2000mm-3000mm
- Structure：Hollow Wall Structured Pipe
- Voltage：380V 50Hz
- Transport Package：Standard Export Packing
- Specification：ISO9001-2008
- Trademark：Huashida
- Origin：Qingdao, China
- HS Code：8477209000
- Production Capacity：50 Units,Month
Description
heat shrink sleeve), which are convenient and economical in construction.

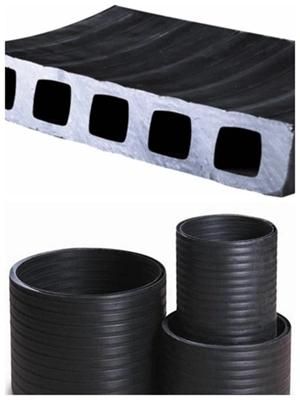

Features of Weholite Structured Wall HDPE Pipe
1). High Ring Stiffness
2). High Brunt Intensity and low weight
3). Good creep deformation resistance.
4). Outer pressure resistance.
5). Erosion resistance ( such as acid, alkali and salt etc. )
6). Long life of approximately 50 years.
Applications of HDPE structured wall pipe:
- Sewerage Pipelines
- Drainage Pipelines
- Culverts.
- Pipe rehabilitations.
- Landfill drainage/Leachate.
- Mine drainage.
- HDPE manholes. / Manhole Drops
- Floats
- Irrigation

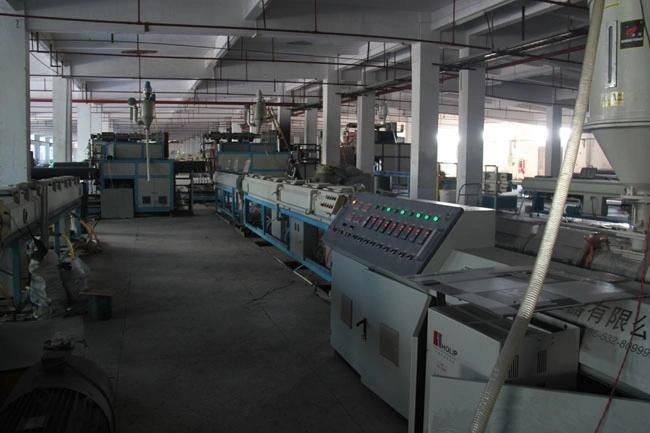

Technical process:
Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray cooling→Caterpillar traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.
The complete production line includes two parts:
1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off
2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket

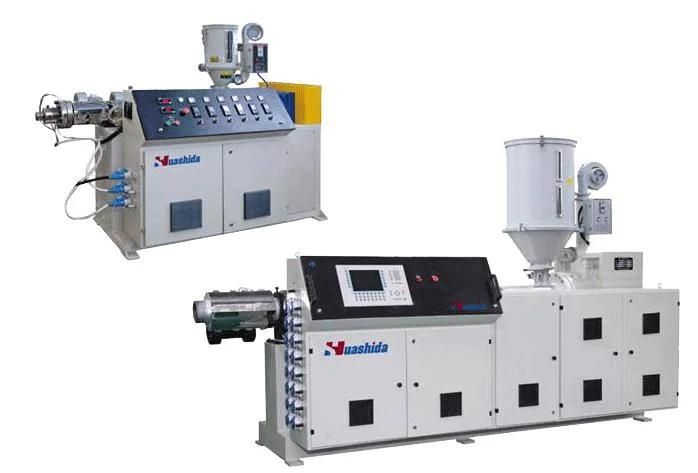

High-efficiency single screw extruder
The extruder is equipped with the forced water-cooling feeding section and slotted barrel, which makes the power consumption of the main drive motor greatly reduced.

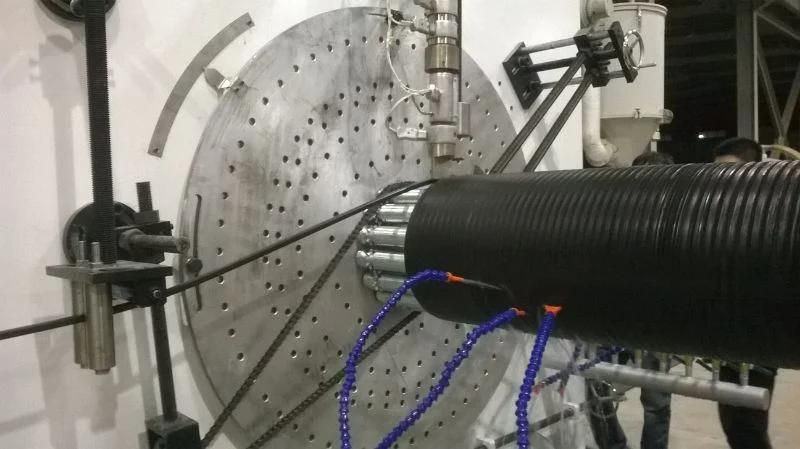

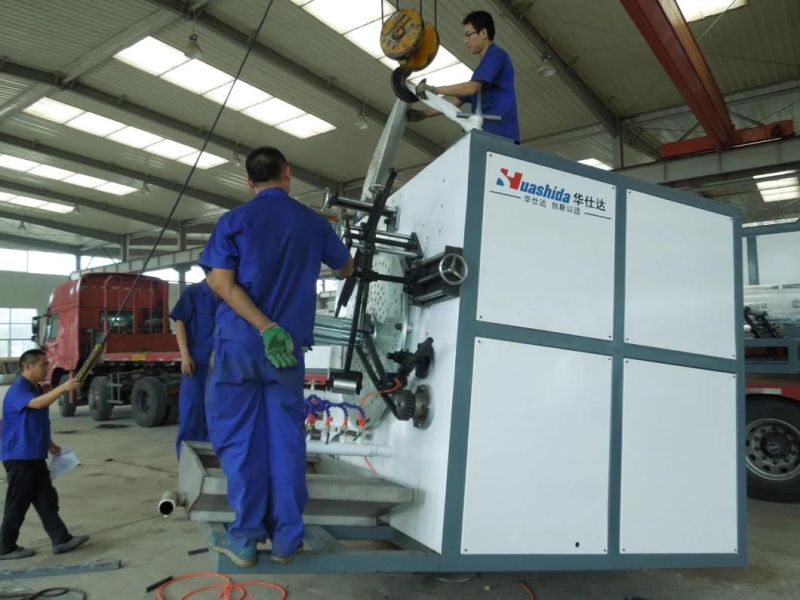

Spiral forming machine
Spiral spinning forming, exquisite structure, unique design, ensuring high product quality.
Control System
PLC computer control system with touch screen:
With super high speed and large storage capacity.
Multi points control: pipe extrusion, adhesive extrusion, winding and cutting process can be controlled synchronously or separately.
Data sheet
Expert team supporting

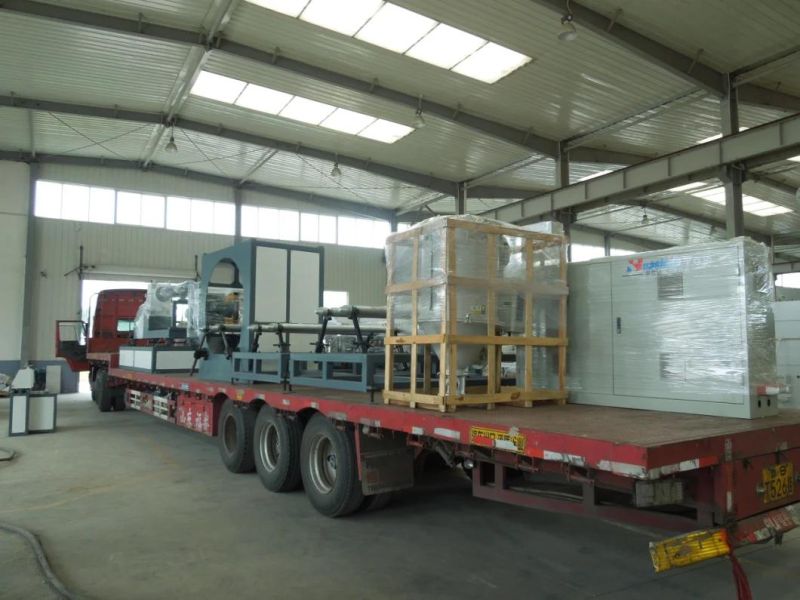

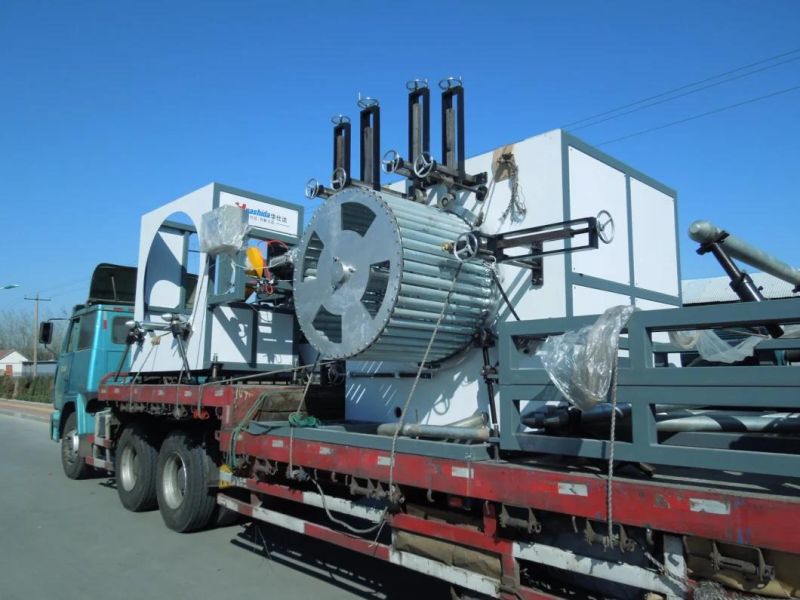

Delivery
Features of Weholite Structured Wall HDPE Pipe
1). High Ring Stiffness
2). High Brunt Intensity and low weight
3). Good creep deformation resistance.
4). Outer pressure resistance.
5). Erosion resistance ( such as acid, alkali and salt etc. )
6). Long life of approximately 50 years.
Applications of HDPE structured wall pipe:
- Storm Water Management./ Storm water Attenuation Application / Storm water pipelines.
- Sewerage Pipelines- Drainage Pipelines
- Culverts.
- Pipe rehabilitations.
- Landfill drainage/Leachate.
- Mine drainage.
- HDPE manholes. / Manhole Drops
- Floats
- Irrigation
Technical process:
Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray cooling→Caterpillar traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.
The complete production line includes two parts:
1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off
2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket
High-efficiency single screw extruder
The extruder is equipped with the forced water-cooling feeding section and slotted barrel, which makes the power consumption of the main drive motor greatly reduced.
Spiral forming machine
Spiral spinning forming, exquisite structure, unique design, ensuring high product quality.
Control System
PLC computer control system with touch screen:
With super high speed and large storage capacity.
Multi points control: pipe extrusion, adhesive extrusion, winding and cutting process can be controlled synchronously or separately.
Data sheet
| Model | Pipe Diameter(mm) | Extruder | Speed of forming | Max. output | Installed Power | dimension |
| SKRG-1200 | Ø400-Ø1200 | SJ-65(50)X30 | 1-12m/h | 320kg/h | 230KW | 26X18X5 |
| SKRG-1600 | Ø800-Ø1600 | SJ-80(50)X30 | 1-6m/h | 500kg/h | 310KW | 27X18X5 |
| SKRG-2200 | Ø1000-Ø2200 | SJ-90(65)X30 | 0.5-5m/h | 650kg/h | 380KW | 28X19X5 |
| SKRG-3000 | Ø1600-Ø3000 | SJ-90(65)X30 | 0.3-3m/h | 800kg/h | 390KW | 48X26X6 |
