• Model NO.：ZXEX
• Maximum Extrusion：300-320 Kg,H
• Transport Package：Standard Packaging
• Specification：27000× 3200× 2950 L× W× H
• Trademark：ZX
• Origin：China
• HS Code：84778000
• Production Capacity：15 Sets , Year

Basic Info.

Model NO. ZXEX Maximum Extrusion 300-320 Kg/H Transport Package Standard Packaging Specification 27000× 3200× 2950 L× W× H Trademark ZX Origin China HS Code 84778000 Production Capacity 15 Sets / Year

Product Description

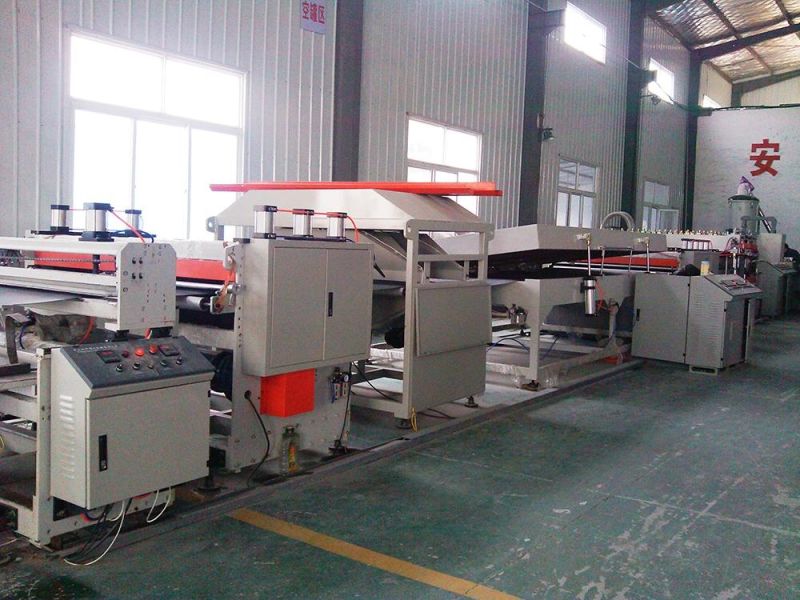

SJ-120×35 Single screw ZX-2300 PP Hollpw Grid Board production line


Process flow:

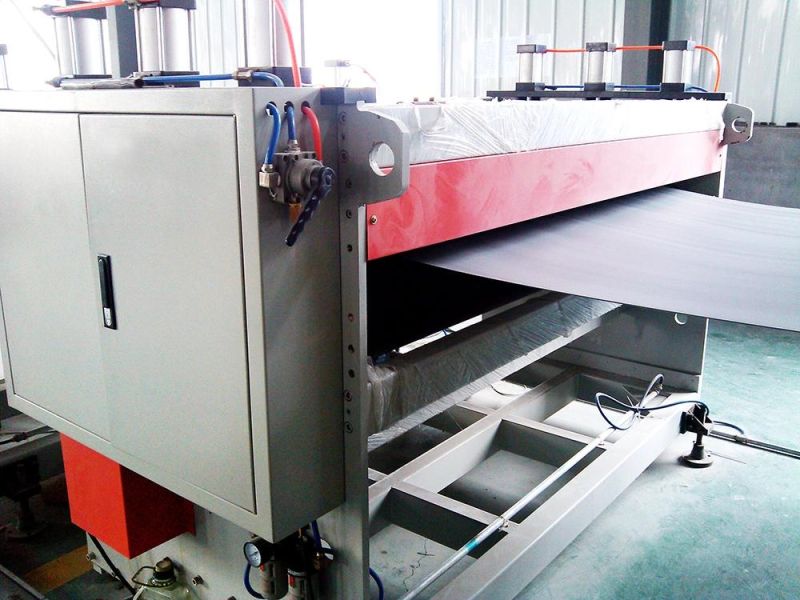

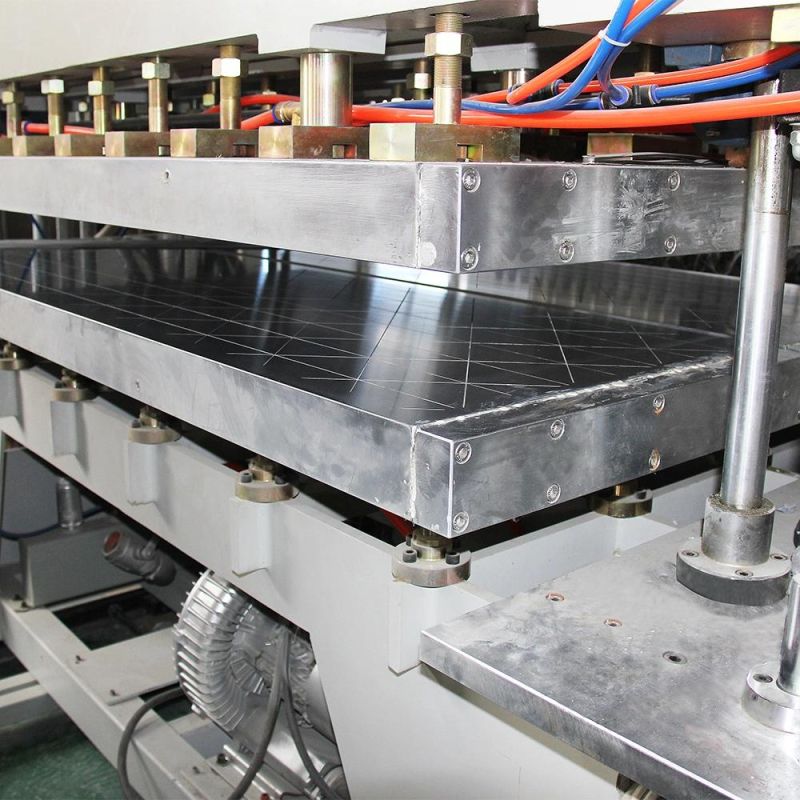

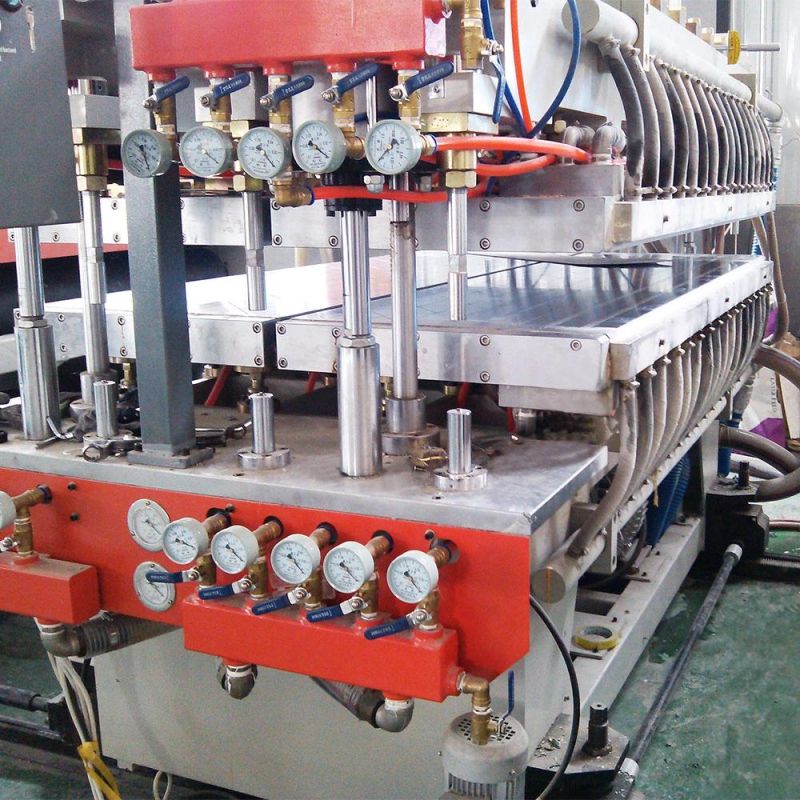

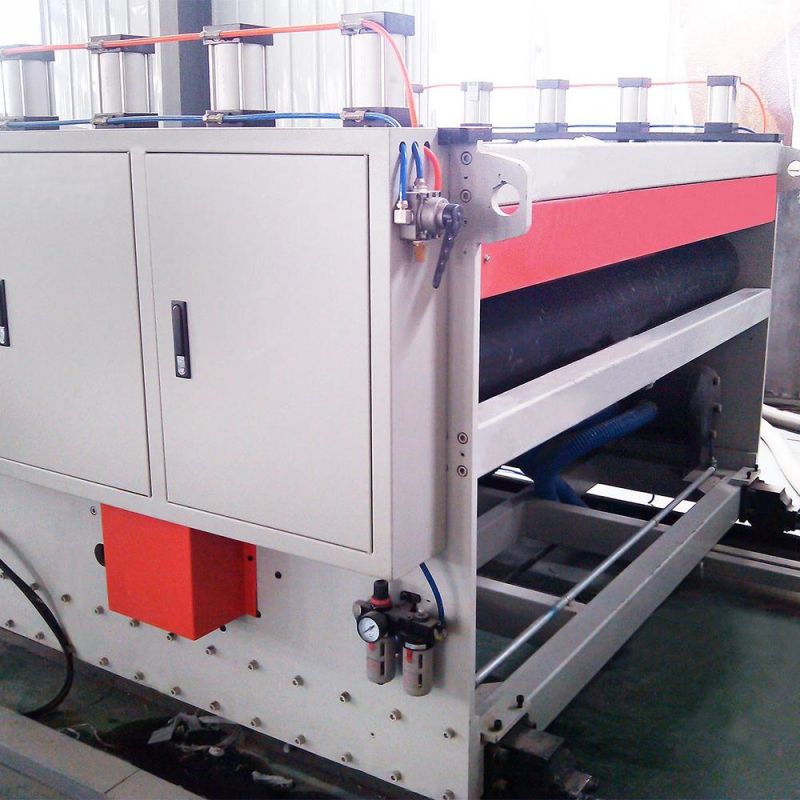

Raw material allocation→Vacuum feeding→Host extrusion→ Extrusion die→Vacuum setting mould→Five roller tractor→Heating straightening box→Three roller tractor→Transverse cutter→Bracket platform→test→Packing
 Working condition

No.	Item	Model
2.1	Raw materials	PP
2.2	Sheet specification	2100×2-5mm
2.3	Production line speed	1-8m/min
2.4	Maximum extrusion	300-320 KG/H
2.5	Boundary dimension	27000×3200×2950  L×W×H
2.6	Weight (about)	45t
2.7	Total installed power	165KW
2.8	Actual energy consumption power	125KW
2.9	Air consumption	0.43/min
2.10	Pressure	0.5-0.6MPA
2.11	Water circulation quantity	0.33 /H
2.12	Power Supply	AC380V±10%50HZ
2.13	Source of water	Industrial water, no impurities, filtered, water pressure; 4MPa, water temperature 15-25 ºC
2.14	work environment	0-40ºC

Any questions or requirements,please feel free to contatc with me.
