PP Hollow Grid Sheet Machinery Making Sheet Production Machine
Qingdao Zhenxiong Mechanical Equipment Co., Ltd.- Screw:Single-Screw
- Automation:Automatic
- Computerized:Computerized
- Weight (About):45t
- Power Supply:AC380V±10%50Hz
- Work Environment:0-40ºC
Base Info
- Model NO.:ZXEX
- Maximum Extrusion:300-320 Kg,H
- Transport Package:Standard Packaging
- Specification:27000× 3200× 2950 L× W× H
- Trademark:ZX
- Origin:China
- HS Code:84778000
- Production Capacity:15 Sets , Year
Description
Basic Info.
Model NO. ZXEX Maximum Extrusion 300-320 Kg/H Transport Package Standard Packaging Specification 27000× 3200× 2950 L× W× H Trademark ZX Origin China HS Code 84778000 Production Capacity 15 Sets / YearProduct Description

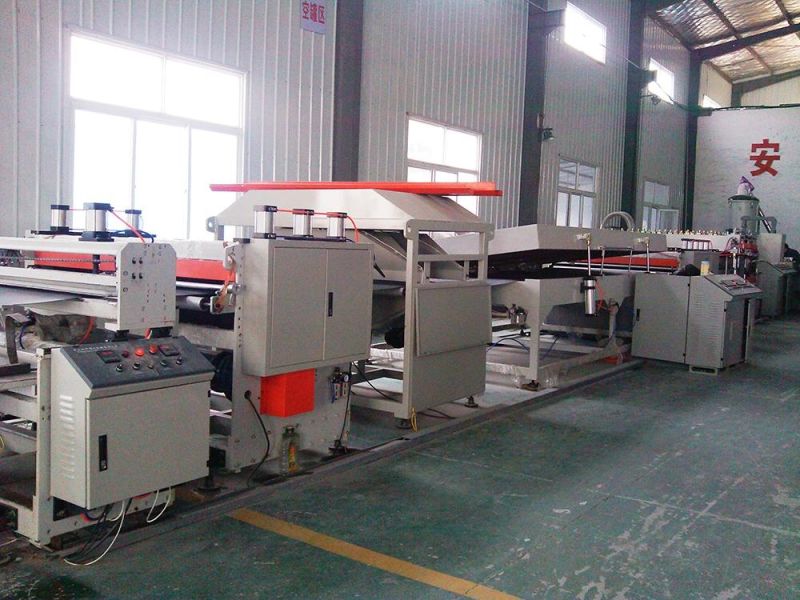

SJ-120×35 Single screw ZX-2300 PP Hollpw Grid Board production line
Process flow:

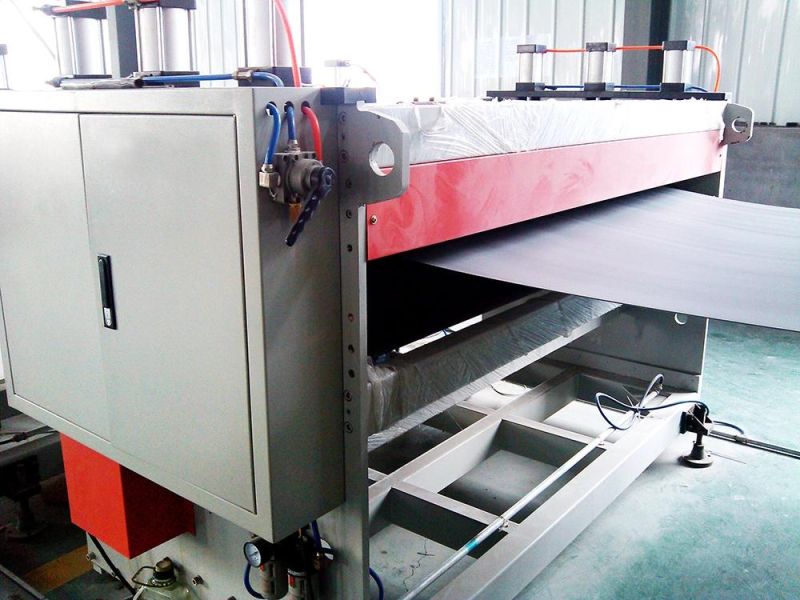

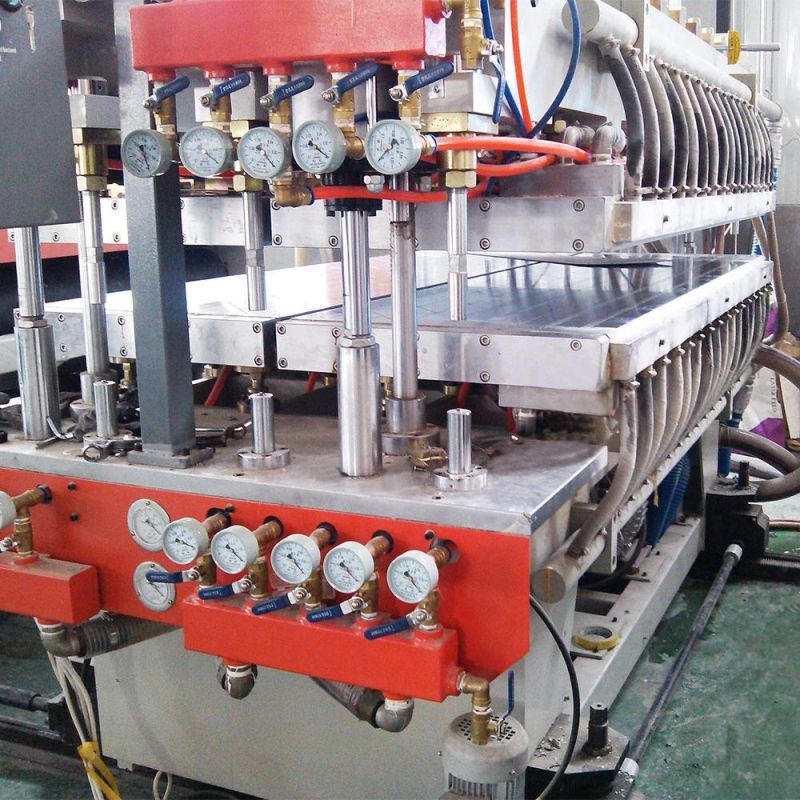

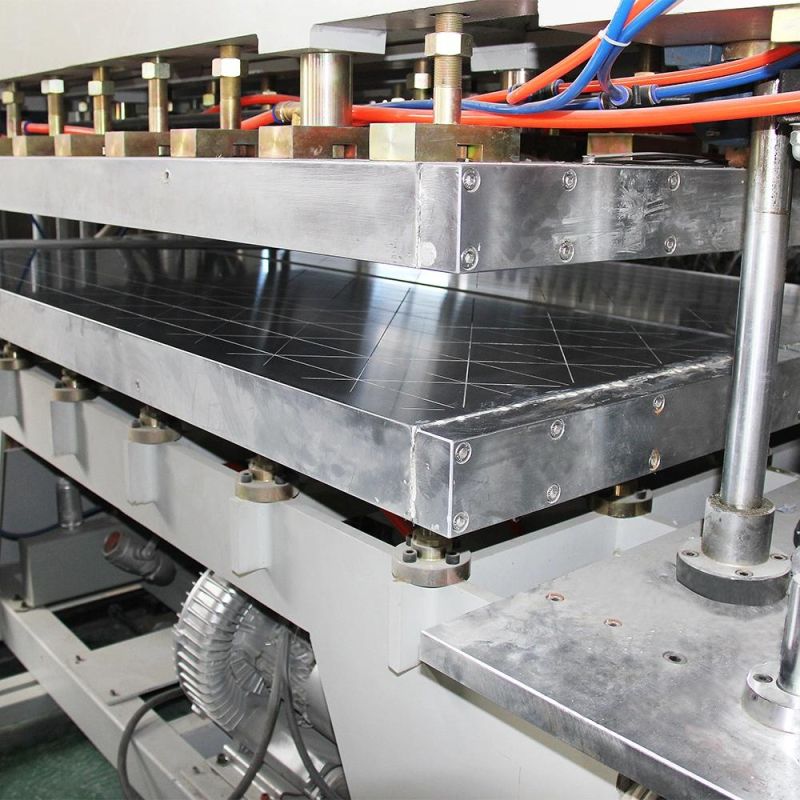

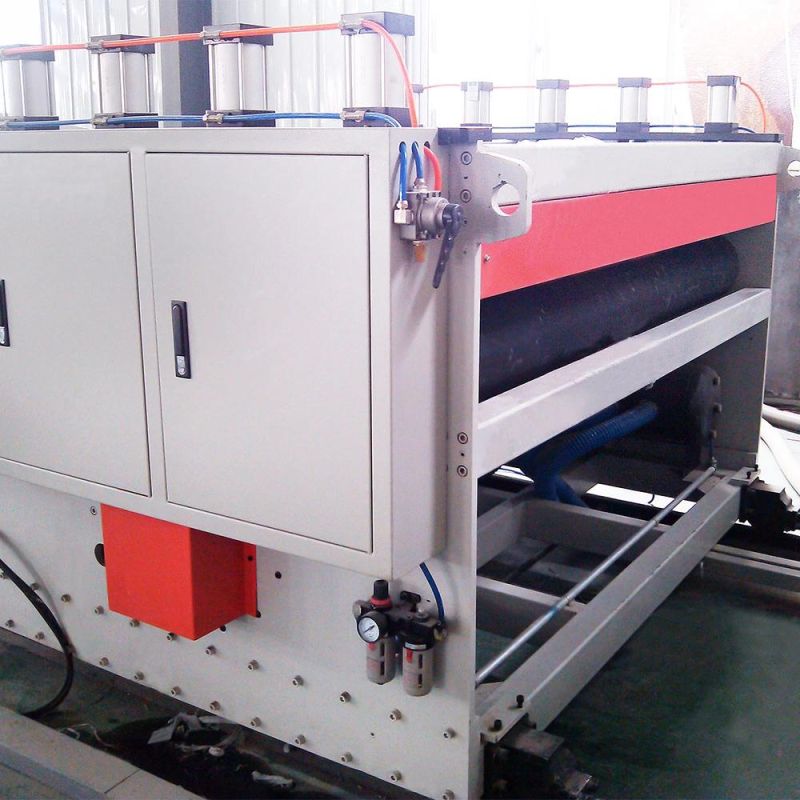

Raw material allocation→Vacuum feeding→Host extrusion→ Extrusion die→Vacuum setting mould→Five roller tractor→Heating straightening box→Three roller tractor→Transverse cutter→Bracket platform→test→Packing
Working condition
No. | Item | Model |
2.1 | Raw materials | PP |

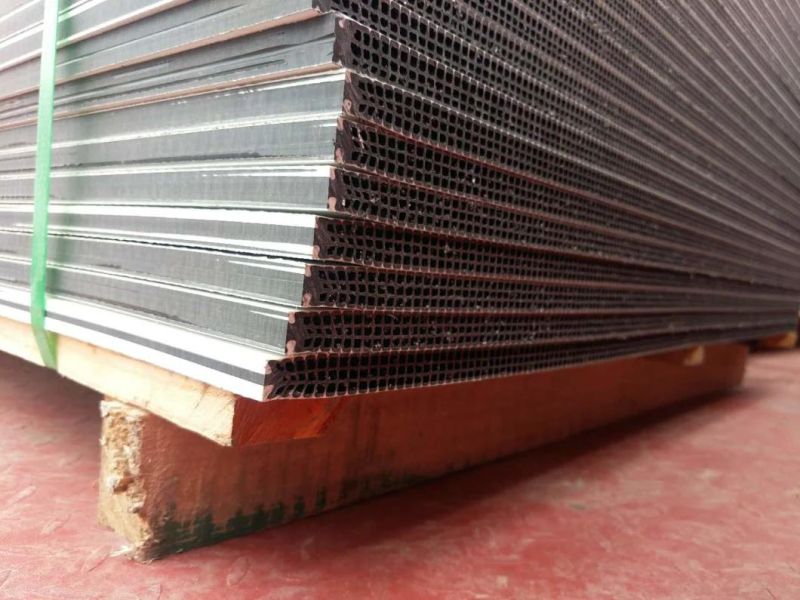

2.2 | Sheet specification | 2100×2-5mm |
2.3 | Production line speed | 1-8m/min |
2.4 | Maximum extrusion | 300-320 KG/H |
2.5 | Boundary dimension | 27000×3200×2950 L×W×H |
2.6 | Weight (about) | 45t |
2.7 | Total installed power | 165KW |
2.8 | Actual energy consumption power | 125KW |
2.9 | Air consumption | 0.43/min |
2.10 | Pressure | 0.5-0.6MPA |
2.11 | Water circulation quantity | 0.33 /H |
2.12 | Power Supply | AC380V±10%50HZ |
2.13 | Source of water | Industrial water, no impurities, filtered, water pressure; 4MPa, water temperature 15-25 ºC |
2.14 | work environment | 0-40ºC |
