Double Extruder Double Die Head Co-Extrusion Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：Dual Head Plastic Film Blowing Machine
  • Raw Material：LDPE,LLDPE,HDPE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：65mm*2
  • Automation：Non-Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：FM2-800
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Optional Model：FM2-800*2
  • Structure：Double Screws with Double Die Head
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Film for Container Shipment
  • Specification：2 layers
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

LDPE/LLDPE/HDPEthickness(mm)0.008--0.16film width(mm)5007001000max output(kg/h)90105120screw diameter(mm)Φ55*2Φ60*2Φ65*2material of screw and barrel38CrMoAIAgear box173180180L/D ratio30:1temp. controller6 zone6 zone6 zonespiral mandrel die chrome plated surface 40Crtemp. controller6 zone6 zone6 zonecooling fan(kw)1.52.22.2take up width(mm)6008001100effective width50070010000--120winder width(mm)6008001100effective winder width(mm)5007001000max winding diameter(mm)600600600winder typesurface friction single winderwinder motor power(kgf.cm)305050machine size(m)4.1*2.45*4.54.3*2.65*4.54.5*2.95*5.3voltage380V 50Hz 3Phase

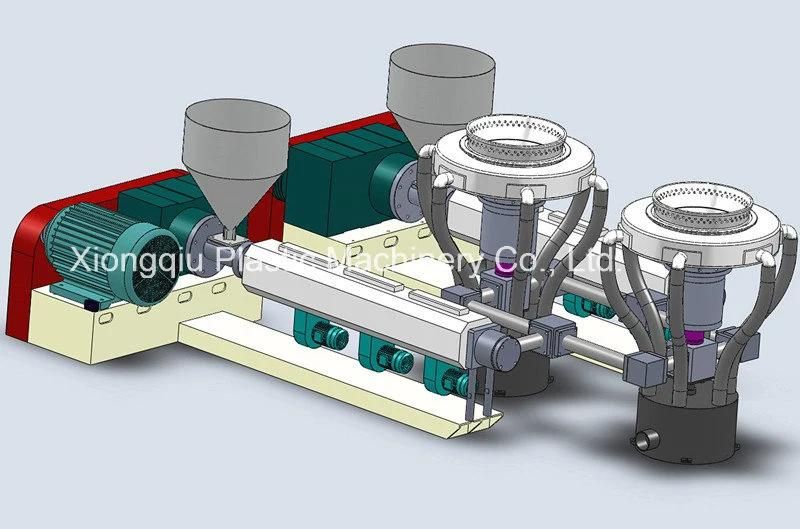

double extruder double die
Double Extruder Double Die Head Co-Extrusion Film Blowing Machine
auto winder
Double Extruder Double Die Head Co-Extrusion Film Blowing Machine
double lip air ring
Double Extruder Double Die Head Co-Extrusion Film Blowing Machine
