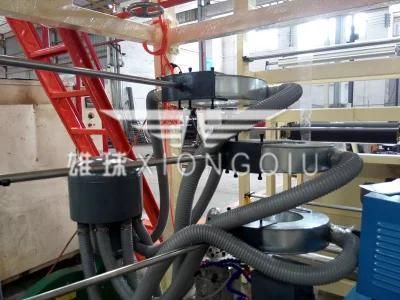

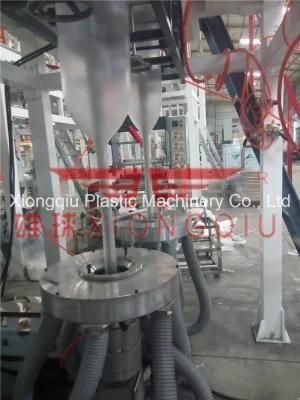

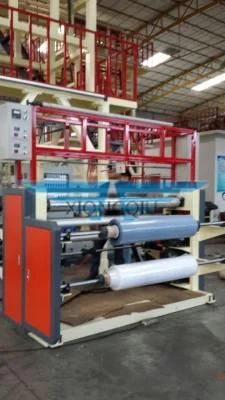

PE Flat Bag/Zip-Lock Bag Film Blowing Machine
Xiongqiu Plastic Machinery Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：LDPE,LLDPE
- Maximum Folding Width of Film：1000mm
- Screw Diameter：55mm
- Automation：Non-Automatic
- Computerized：Computerized
Base Info
- Model NO.：FMZ-800
- Machine Weight：3.2t
- Certification：CE, ISO9001:2008
- Optional Model：Fmz-800
- Machine Size：L*W*H: 4.5m * 2.05m * 4.5m
- Voltage：380V 50Hz 3phase
- Transport Package：Plastic Film for Container Shipment
- Specification：single layer
- Trademark：Xiongqiu Plastic Machinery Co., Ltd.
- Origin：Foshan, Guangdong Province
- HS Code：8477300000
Description
LDPE,LLDPEthickness(mm) 0.02--0.15 film width(mm) 60--500 100--700 100--1000 max output(kg/h) 45 50 60 screw diameter Φ45mm Φ50mm Φ55mm material of screw and barrel 38CrMoAIA gear box 146 173 173 L/D ratio 30:1 temp. controller 3 zone 3 zone 3 zone temp.controller 2 zone 2 zone 1 zone cooling fan(kw) 1.5 1.5 2.2 take up width(mm) 600 800 1100 effective width(mm) 500 700 1000 winder motor power(kgf.cm 30 30 30 machine size(m) 4.5*2.45*4.5 4.7*2.75*4.5 5.5*3.15*4.5 voltage 308V 50Hz 3Phase

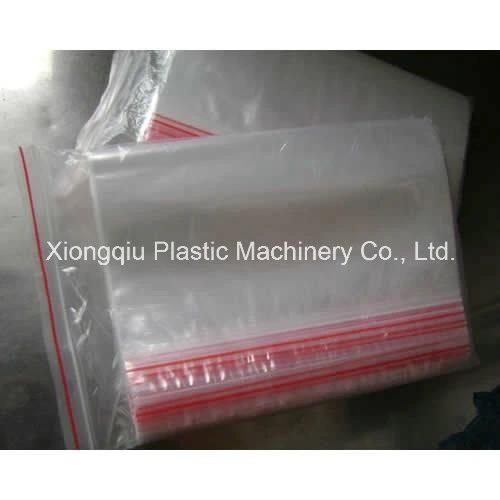

zipper bag

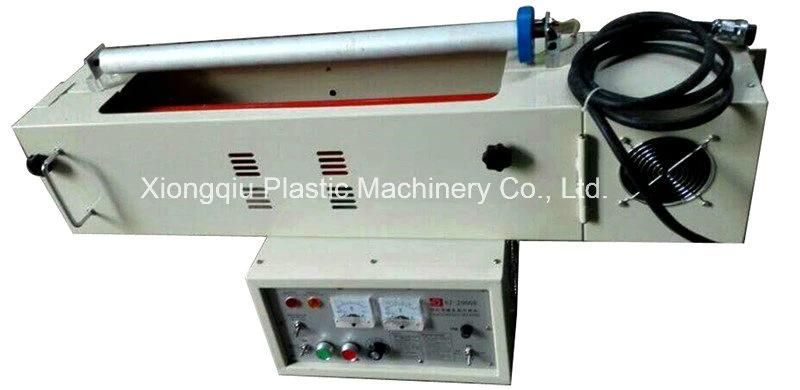

corona

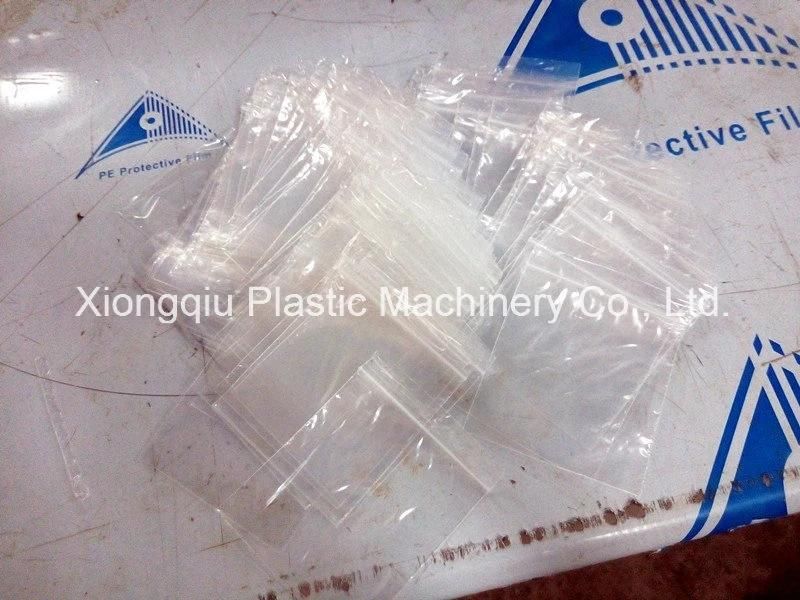

zipper bag
corona
