• Model NO.：SJSZ-55
• Customized：Customized
• Condition：New
• Thickness：7~9mm
• Transport Package：Wooden Packing
• Specification：300mm
• Trademark：Trusty
• Origin：Qingdao

Basic Info.

Model NO. SJSZ-55 Customized Customized Condition New Thickness 7~9mm Transport Package Wooden Packing Specification 300mm Trademark Trusty Origin Qingdao

Product Description

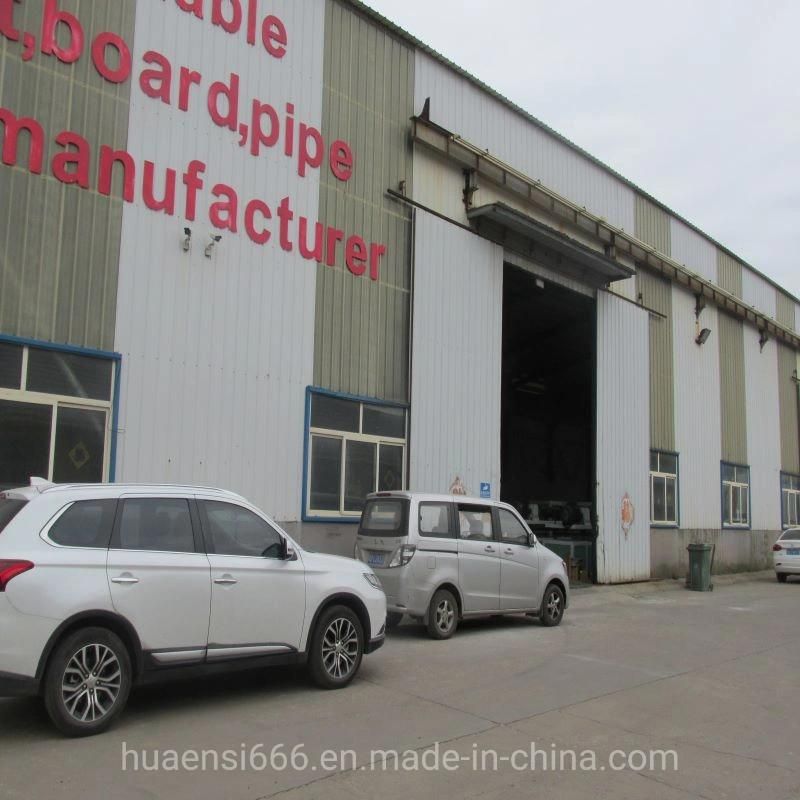

1.Company ProfileQingdao Trusty plastic machinery company is located in Qingdao shandong peninsula, a beautiful coastal city, where railway, sea and aviation are very convenient.It is one of the coastal cities with rapid economic development.Our company manages each kind of plastic machinery, has the rich mature technical experience.

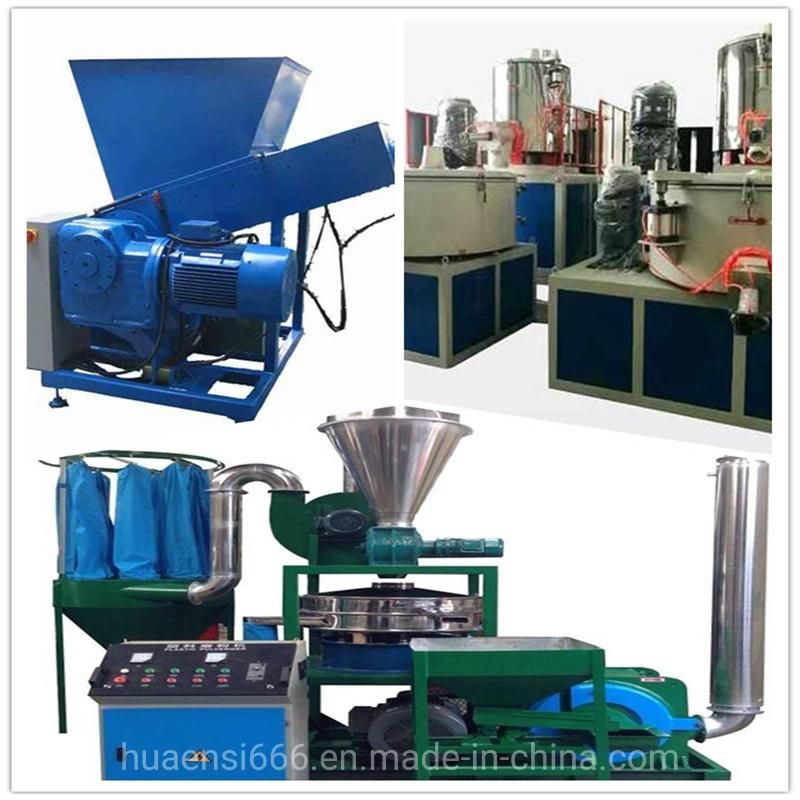

 2.Production IntroductionPVC decoration gusset plate production line consists of mixer,feeder,twin screw extruder,300 width gusset plate mould,size forming mould,automatic infrared tracker,calibration table,haul-off,online laminating machine,automatic cutter,roll over table,crusher.


PVC gusset plate production line based on polyvinyl chloride (PVC) as the main raw material,which was through denaturation processing, added stabilizing agent, strengthening agent and other additives.

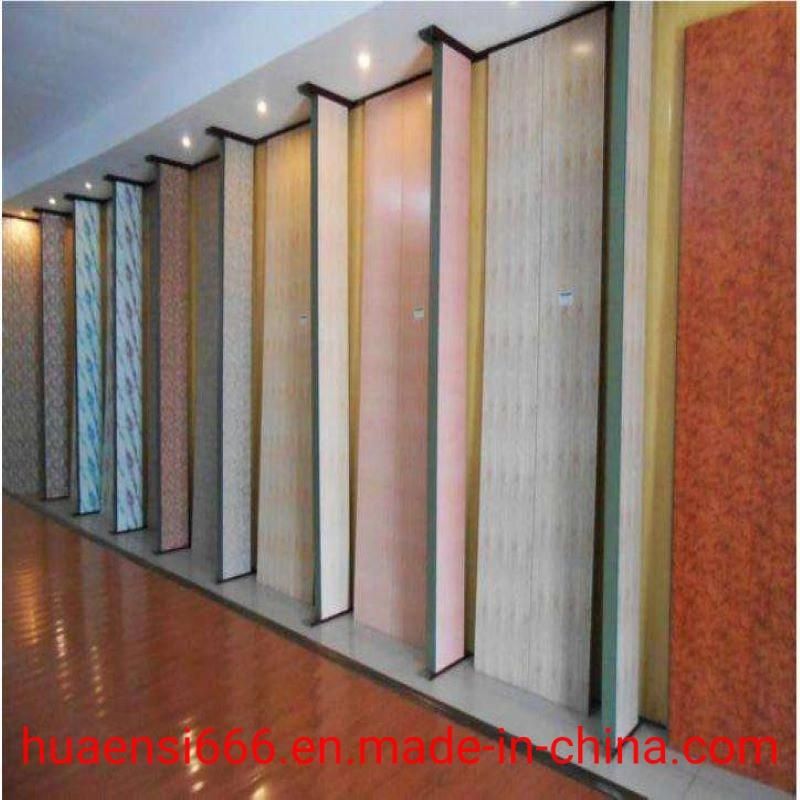

It has many advantages: light weight  , easy installation, waterproofing, anti moth.And the pattern of design and color on the surface of the change is also plentiful. The advantages of resistant to pollution, good cleaning,  good performance of sound insulation, heat insulation, especially adding flame retardant material, that makes it keep away from the fire to use more securely.



3.Machine List

Name	Quantity(set)
Mixer300/600	1
Feeder	1
Twin screw extruder	1
300 Width gusset plate mould	1
Customized mould	1
Automatic infrared tracker	1
Calibration table	1
Haul off	1
Online laminating machine	1
Automatic cutter	1
Roll over table	1
Crusher	1
Mill	1

4.Technical Parameter

Model	SJSZ-55
Total installation power(kw)	135
Transformer (kw)	100
Actual electricity consumption(kw)	40
Capacity (kgh)	180-200
Line speed (mmin)	1-3
Width of board(mm)	300
Thickness(mm)	7-9
Motor Power(kw)	30

5.Production Process

Mix the material→Feed→Extrude→Customize→Haul off→Laminating→Cut→Stack the material→Crush→Mill


6.After sales service

(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
