• Model NO.：SJSZ-51
• Condition：New
• Length(M)：16
• Width(M)：2
• Height(M)：3.5
• Transport Package：Wooden Packing
• Specification：16-40mm
• Trademark：Trusty
• Origin：Qingdao

Basic Info.

Model NO. SJSZ-51 Condition New Length(M) 16 Width(M) 2 Height(M) 3.5 Transport Package Wooden Packing Specification 16-40mm Trademark Trusty Origin Qingdao

Product Description

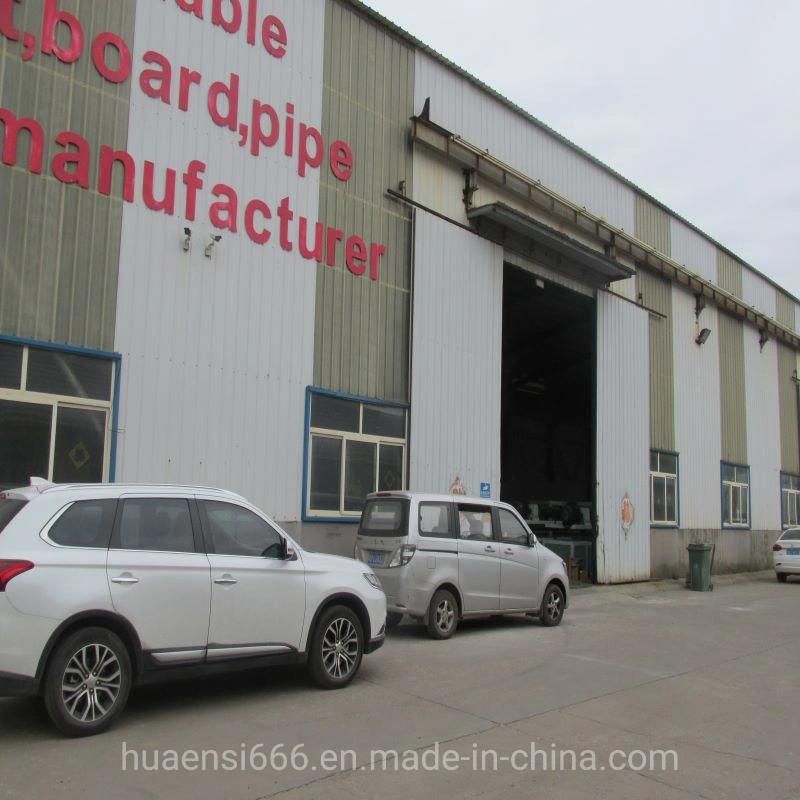

1.Company ProfileQingdao Trusty Plastic Machinery Company is a scientific and knowledge intensive enterprise specialized in the manufacture of complete sets of plastic processing equipment, which integrates r&d, manufacturing, sales and service.



Company always adhere to the "integrity-based, quality, technology innovation, customer service" principle, abide by the commitment to product quality, focus on practical operation and so on tracking service, form a complete set of plastic and plastic mechanical design process to have the profound understanding and accumulation of experience, to ensure the high quality, high performance plastic machinery manufacturing.

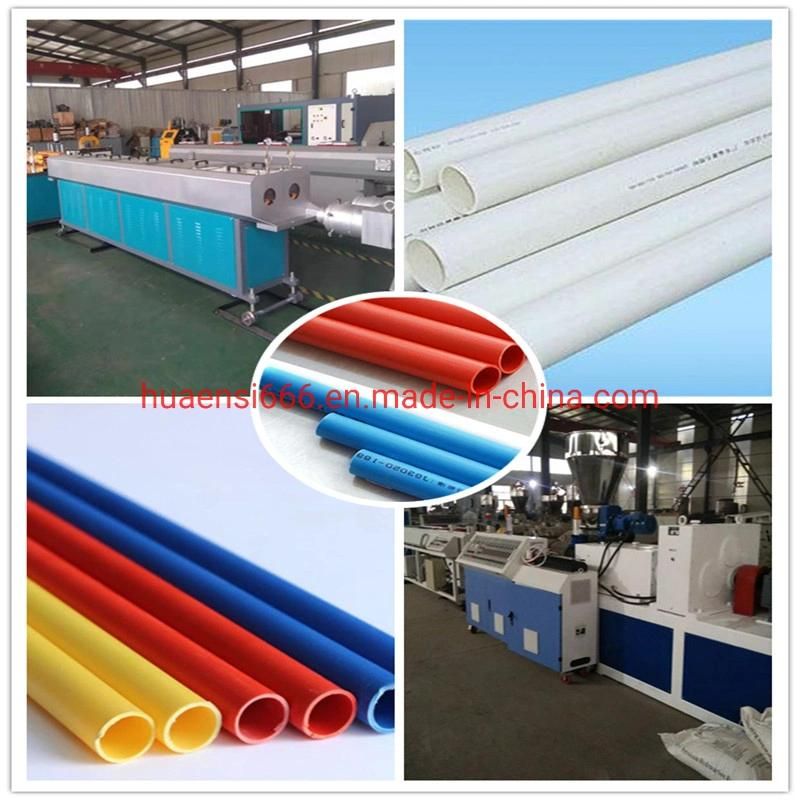

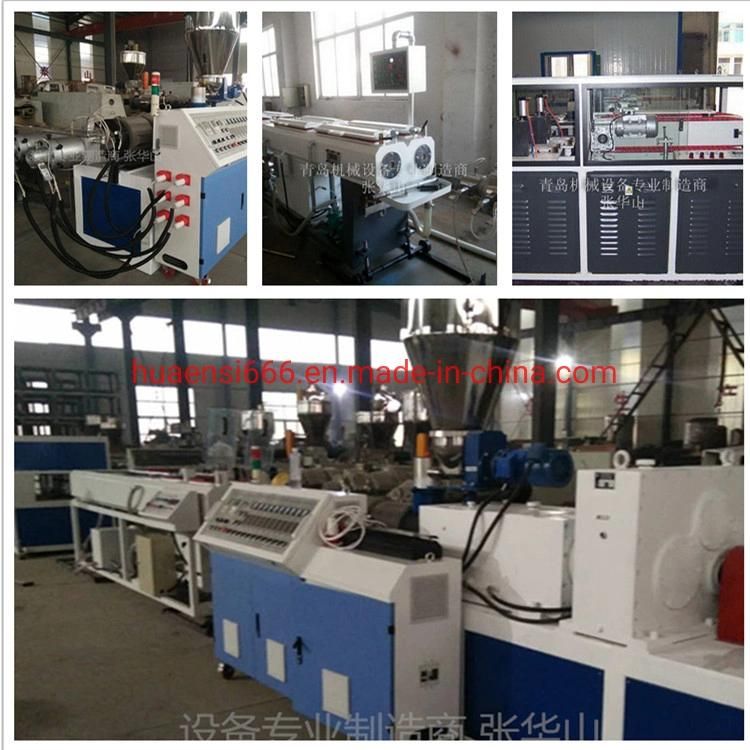

 2.Production IntroductionPVC two cavity conduit extrusion machine line is mainly used for producing the conduit,which diameter from 16mm to 40mm.This production line consists of mixer,feeder,twin screw 51 extruder,twin extruding mould,twin shaper,twin vacuum tank,twin haul-off,twin cutter,twin roll over table ,crusher and mill.It can produce two pipes at one time,that improves the  production efficiency highly.

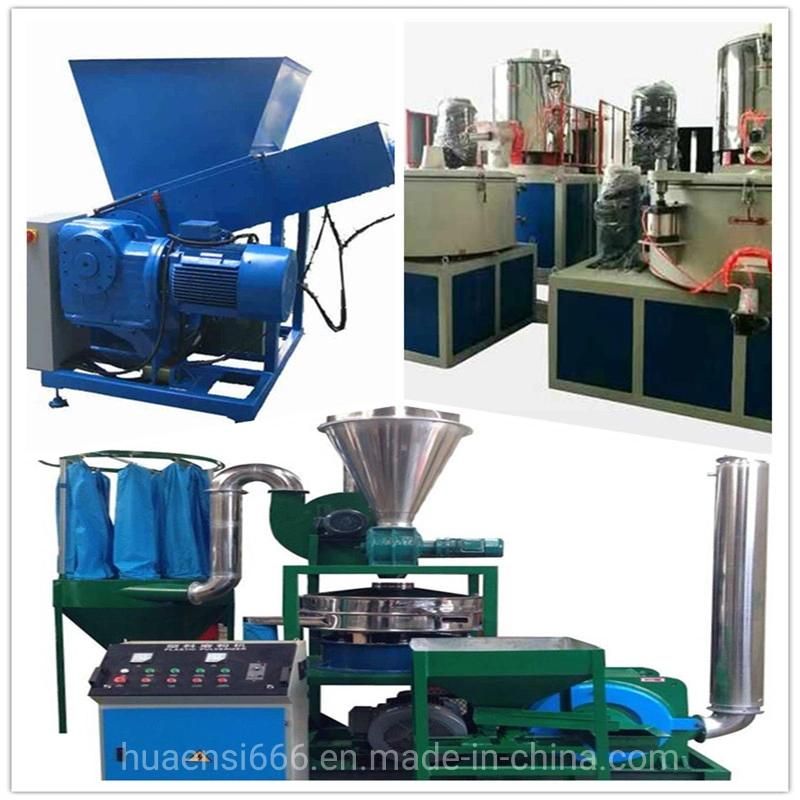

3.Machine List

Name	Quantity(set)
Mixer300/600	1
Feeder	1
Twin screw  extruder	1
Twin extruding mould	1
Twin shaper	1
Twin vacuum tank	1
Twin haul off	1
Twin cutter	1
Twin roll over table	1
Crusher	1
Mill	1

4.Technical Parameter

Model	SJSZ-51
Total installation power(kw)	125
Transformer (kw)	100
Actual electricity consumption(kw)	40
Capacity (kgh)	120-140
Line speed (mmin)	5-10
Pipe Diameter(mm)	16-40
Motor Power(kw)	22

5.Production Process

Mix the material→Feed→Extrude→Customize→Haul off→Cut→Stack the material→Crush→Mill


6.After sales service
(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
