PVC / UPVC Profile Decoration Gusset Plate Ceiling Panel Production Line Manufacturer
QINGDAO TRUSTY PLASTIC MACHINERY CO., LTD.- After-sales Service：Installing in Customer′s Factory
- Warranty：14month
- Product Type：PVC Board
- Board Layers：Single Plate
- Screw No.：Double-screw
- Automation：Automatic
Base Info
- Model NO.：SJSZ-55,110&SJSZ-65,132
- Computerized：Computerized
- Certification：ISO9001:2008
- Customized：Customized
- Condition：New
- Thickness：7~9mm
- Motor：Bette
- Converter：ABB
- Contactor：Siemens
- Transport Package：Wooden Packing
- Specification：300mm
- Trademark：Trusty
- Origin：Qingdao
- HS Code：84772090
- Production Capacity：20 Sets,Month
Description
2.Machine List
| Name | Quantity(set) |
| Mixer300/600 | 1 |
| Feeder | 1 |

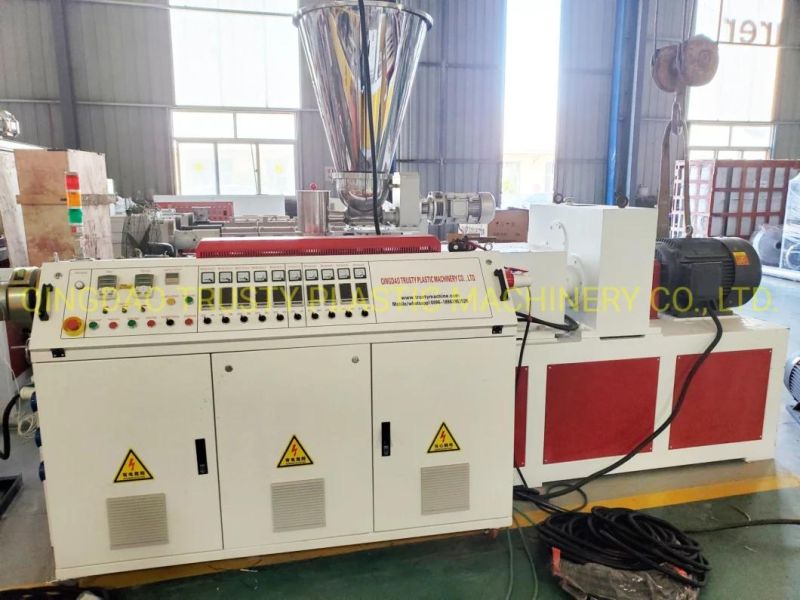

| Twin screw extruder | 1 |
| 300 Width gusset plate mould | 1 |
| Customized mould | 1 |
| Automatic infrared tracker | 1 |
| Calibration table | 1 |
| Haul off | 1 |
| Online laminating machine | 1 |
| Automatic cutter | 1 |
| Roll over table | 1 |
| Crusher | 1 |
| Mill | 1 |
3.Technical Parameter
| Model | SJSZ-55 |
| Total installation power(kw) | 135 |
| Transformer (kw) | 100 |
| Actual electricity consumption(kw) | 40 |
| Capacity (kgh) | 180-200 |
| Line speed (mmin) | 1-3 |
| Width of board(mm) | 300 |
| Thickness(mm) | 7-9 |
| Motor Power(kw) | 30 |
4.Production Process
Mix the material→Feed→Extrude→Customize→Haul off→Laminating→Cut→Stack the material→Crush→Mill

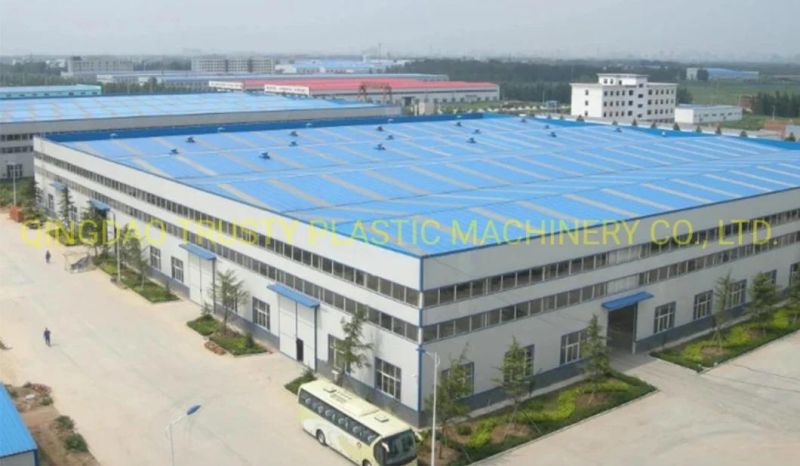

5.Company ProfileQingdao Trusty plastic machinery company is located in Qingdao shandong peninsula, a beautiful coastal city, where railway, sea and aviation are very convenient.
It is one of the coastal cities with rapid economic development.Our company manages each kind of plastic machinery, has the rich mature technical experience.
6.After sales service
(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
