• Model NO.：LMSB120,33
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Name：HDPE Geomembrane Making Machine
• Weight：30tons
• Dimension(L*W*H)：25*3*2m
• Power(W)：320kw
• Voltage：380V
• Transportation Port：Qigndao
• Delivery Time：60-90days
• Control：PLC
• Transport Package：Wooden Cases and Wooden Pallet
• Specification：CE ISO SGS GOST
• Trademark：Qingdao Leader Machinery
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：100 Sets Per Year

HDPE Geomembrane production machine, HDPE Geomembrane extrusion machine, HDPE Geomembrane making machine, HDPE Geomembrane production line1Single screw extruderThis extruder can be vacuum-exhausted type according to the different materials.
The screw and barrel are specially designed according to different materials.
Main electrical parts adopts ABB,Omron,RKC,Schneider, Siemens, Eurotherm, high precision.
Extruder can be Siemens PLC touch screen controlled.
 1.1T-tye die head and hydraulic exchanging unitsBrand: JC-times brand

Material: 5CrNiMo, high quality die steel

hydraulic exchanging unit is single plate, double position, non-stop, no leakage, stable performance.
 2
Three roller calendar

 This calandering system can be vertical, oblique, horizontal according to the mateial attributes.

With rollers thermocontoling machine installed.

The space between three rollers can be adjsuted manually and automatically.
 3

Cooling rollers with edge trimming unitscooling rollers can be 4m, 6m, 8m,10m according to products specification and customers' need.

edge cutting unit and slitting device can be installed.
 4
Haull off Machine
 2 pics of NBR rubber rollers with pneumatic control5
Cutting machine
 Knife cutting machine-guillotine: suitable for under 10mm thickness sheet. It can be controlled by motor or hydraulic cutting
 6

 Twin position coilerit is suitable for the thin sheet, like 0.2-2mm7Electrical cabinet: ABB inverter,contator, RKC thermocontroller,
Siemens PLC, and etc.

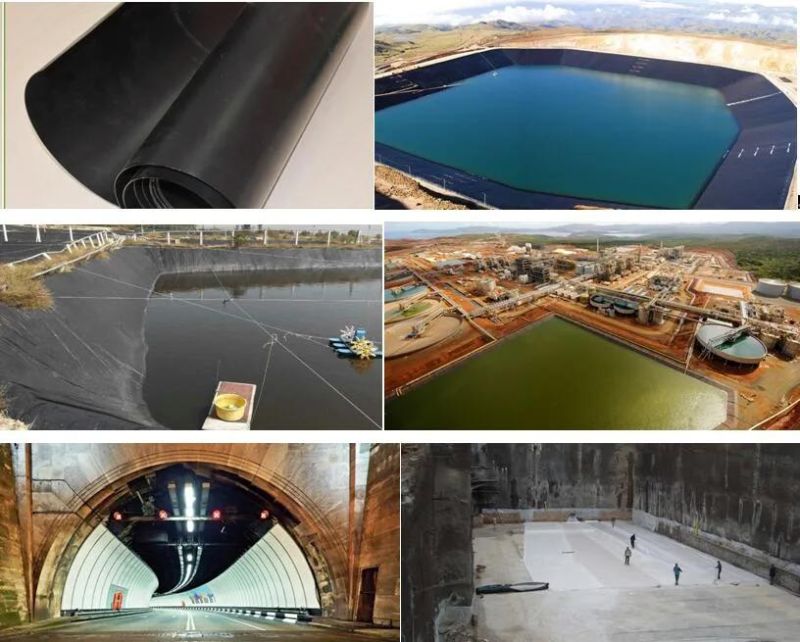

Main applications
1, HDPE geomembrane for environmental protection, sanitation: such as landfills, sewage treatment plants, power plants regulation pool, industrial, hospital and solid waste;
2, LDPE impervious membrane suitable for water projects: such as rivers, lakes and reservoirs dam seepage, sealing, reinforcement, drainage of seepage, vertical heart wall, slope protection, etc;
3, HDPE impermeable membrane in municipal works: subway, underground engineering building, green roofs, roof garden, sewage pipe seepage;
4, polyethylene impermeable membrane suitable garden: artificial lakes, rivers, reservoirs, golf course pond bottom, slope, green lawn waterproof, etc;
5, high-density polyethylene geomembrane for petrochemicals: chemical plants, refineries, tank seepage, chemical reaction tank, sedimentation tank lining, secondary lining, etc;
6, polyethylene geomembrane for mining: washing pools, heap leaching pool, the ash field, dissolving tanks, sedimentation tanks, yard, tailings seepage and other backing;
7, low density polyethylene film suitable transportation facilities: road base reinforcement, culverts impermeable;
8, LDPE impervious membrane suitable for agriculture: reservoirs, water tanks, water storage pond, irrigation systems seepage;
9, HDPE film suitable aquaculture: intensive, factory farming pond, ponds, lined ponds, sea cucumber circle slope, etc;
10, high-density polyethylene impermeable membrane suitable Salt: salt crystallization pool, brine pool thatch cover, salt film, plastic thatch film Salt.

PART 4 MAIN APPLICATIONS :

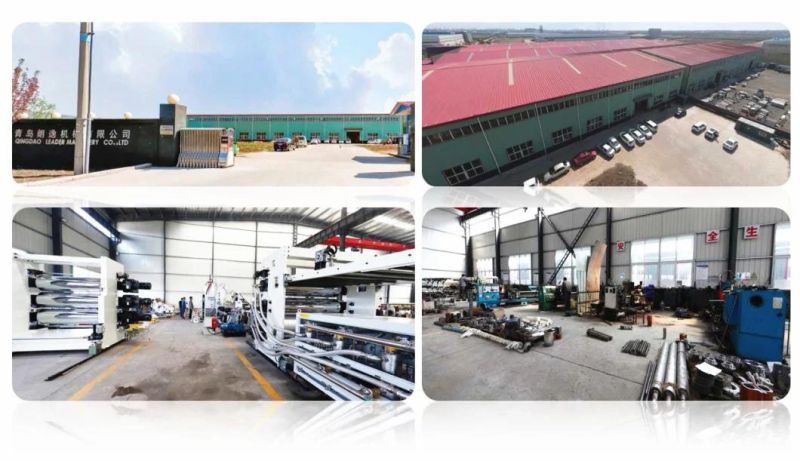

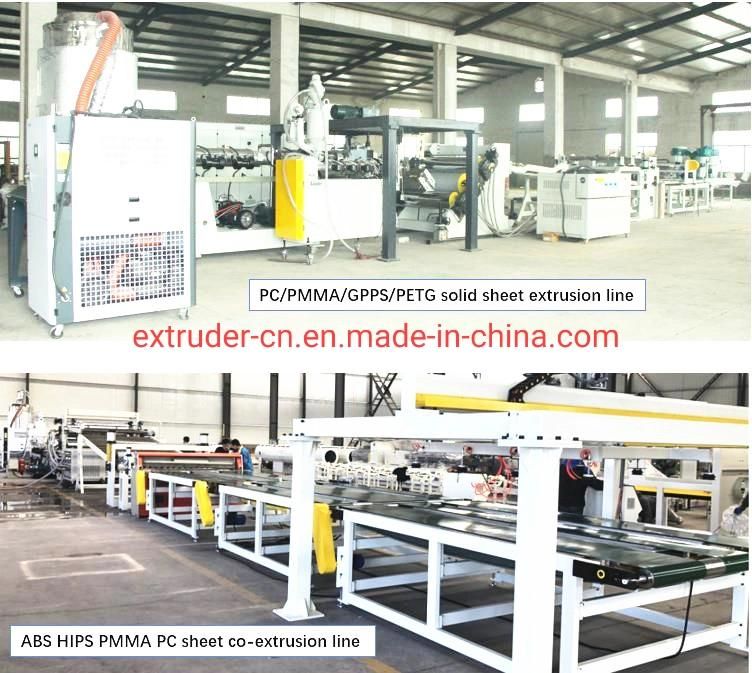

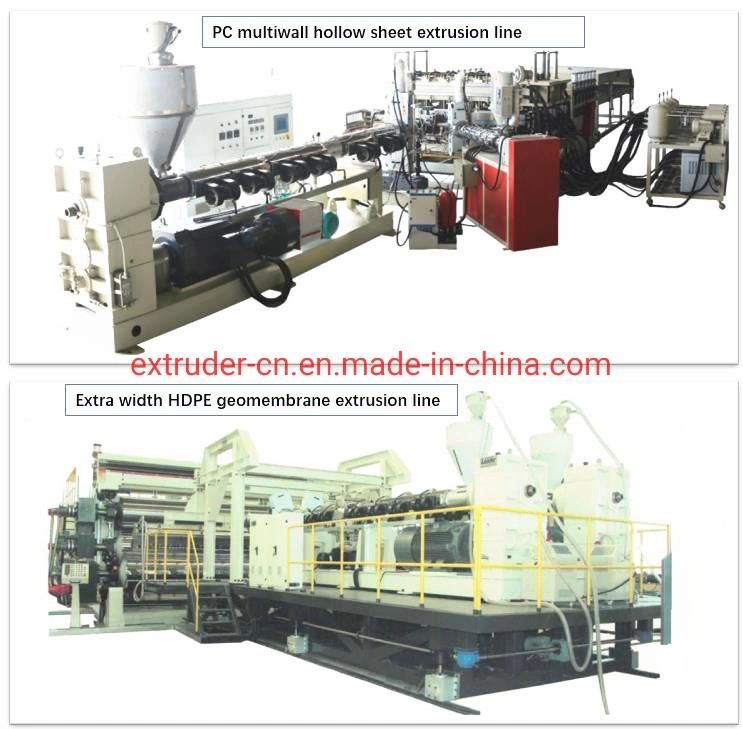

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:

PART 6 COMPANY CERTIFICATIONS:

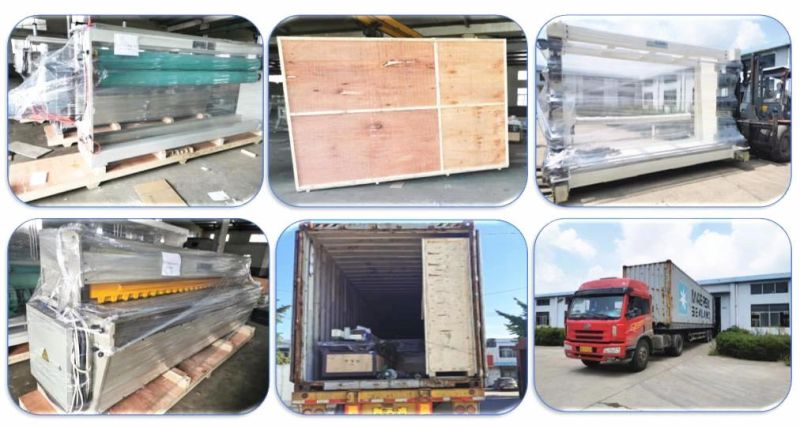

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
